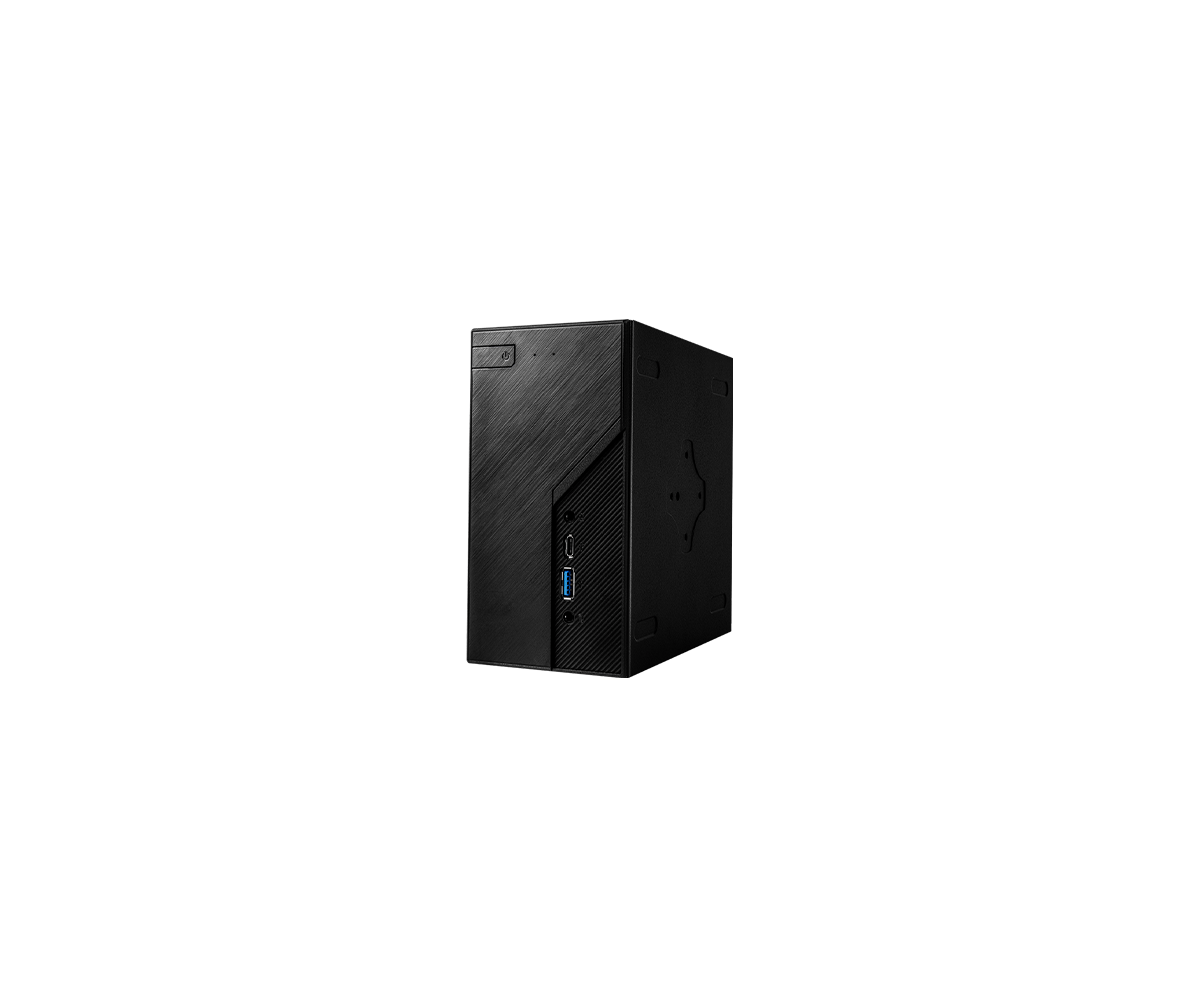

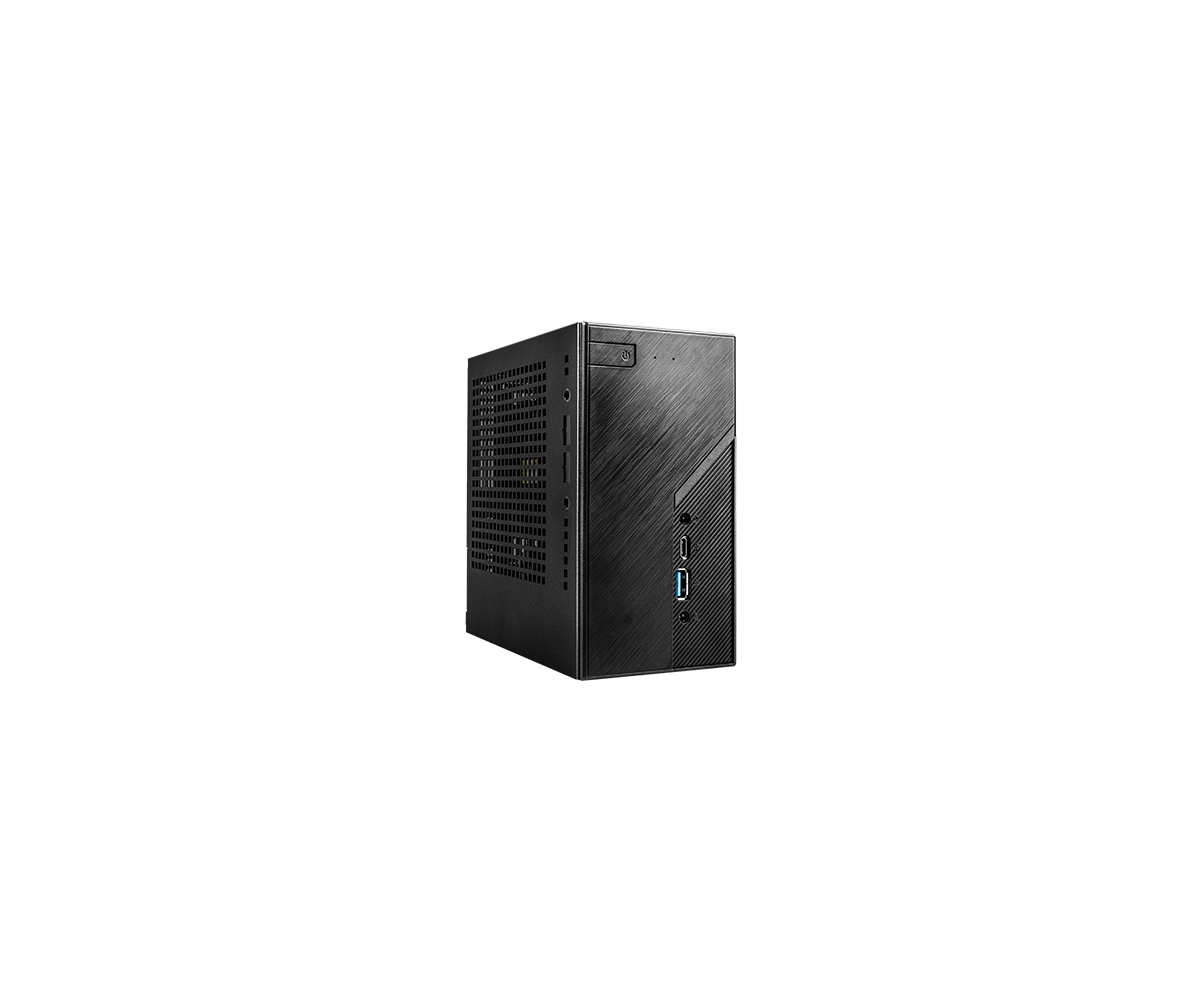

Asrock Deskmini B760 - Barebones Mini PC - LGA1700 - Ingen Ram, Lagring Eller CPU
Product no 1001694933
Model 90BXG4E01-A10GA0W
Brand
Go to brand's website
EAN 4710483942921
Weight 1.78 kg
CPU | Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W |
Cooler | Supports Intel® CPU Cooler (Max. Height ≦ 47mm) |
Memory | Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC) |
Chipset | Intel® B760 |
Audio | Realtek ALC269 Audio Codec |
Storage | 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1) - 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
LAN | 2.5 Gigabit LAN (Dragon RTL8125BG) |
WLAN | 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT) |

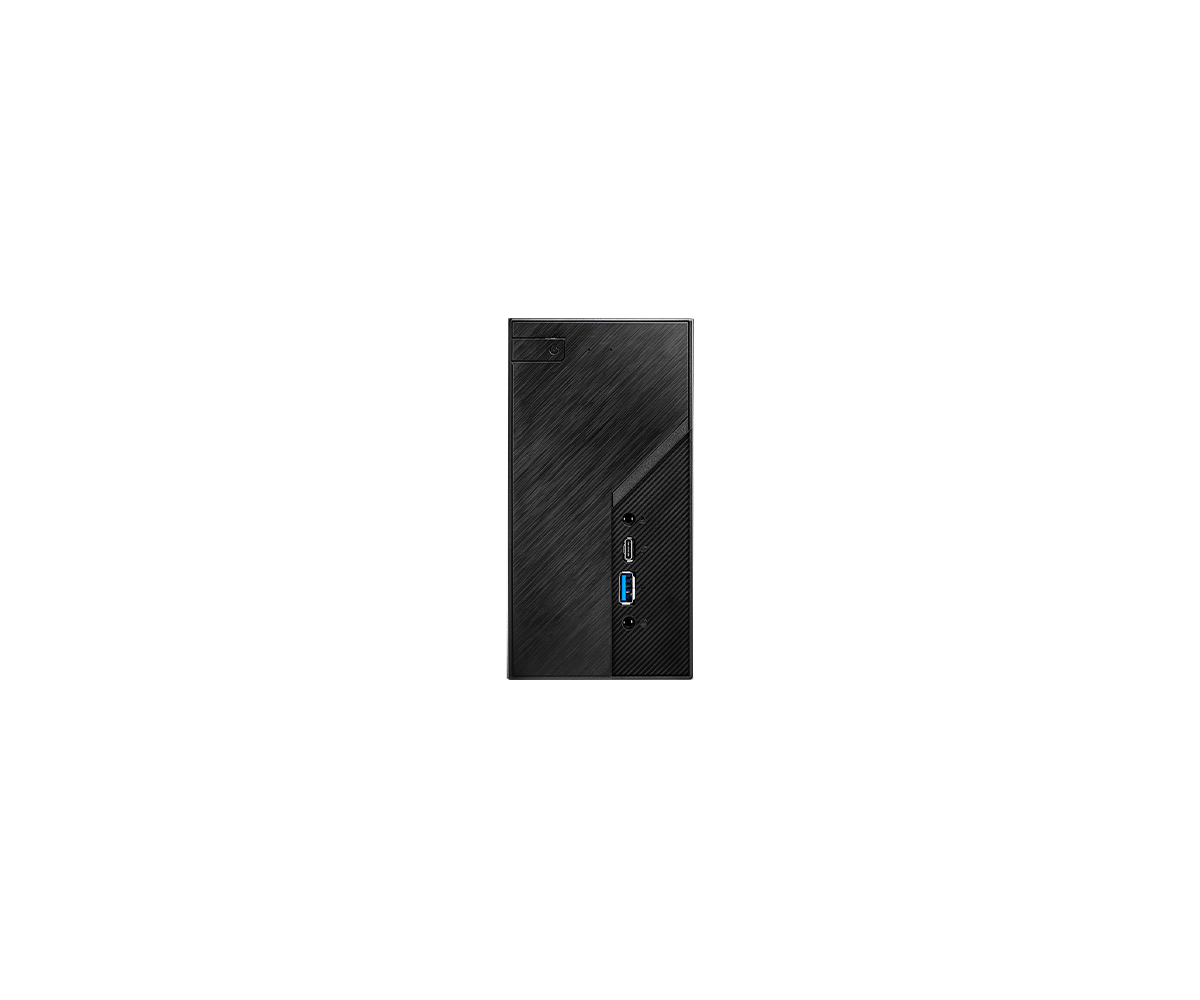

Front I/O | 1 x MIC-In - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x Head Phone with MIC Jack |

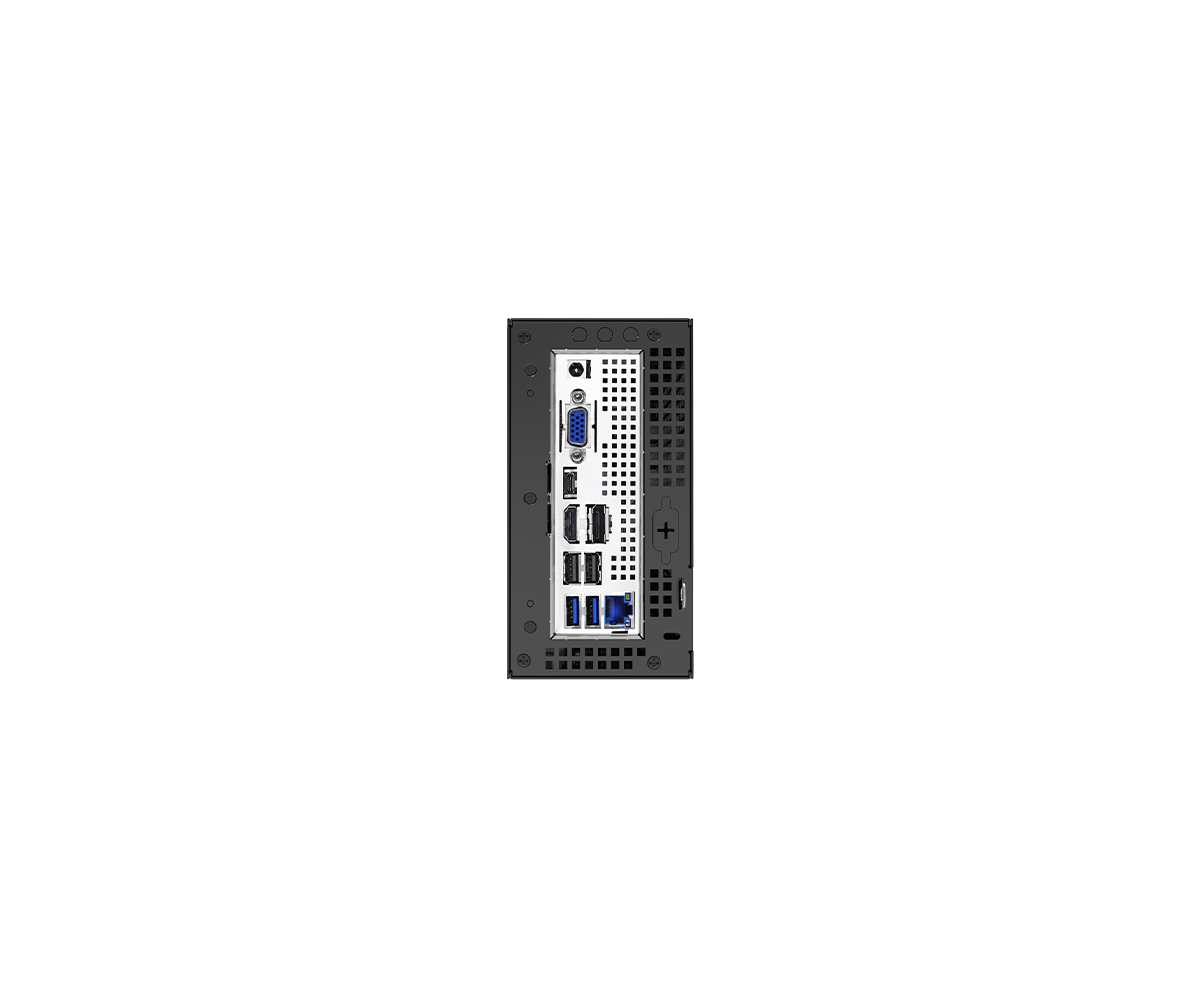

Rear I/O | 1 x DC-In Jack (Compatible with the 19V power adapter) - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED |
Connectors | 1 x USB 2.0 Header - 1 x Front Panel Header - 2 x 4-Pin fan connectors (CPU, SYS) - 1 x Internal Speaker Header (4-Pin) - 1 x Audio Header (4-Pin) |
Accessory | 2 x SATA Data with Power Cable - 1 x 120W/19V adapter - 1 x Screws Pack |
Dimension | 155 x 155 x 80 mm (1.92L) |
