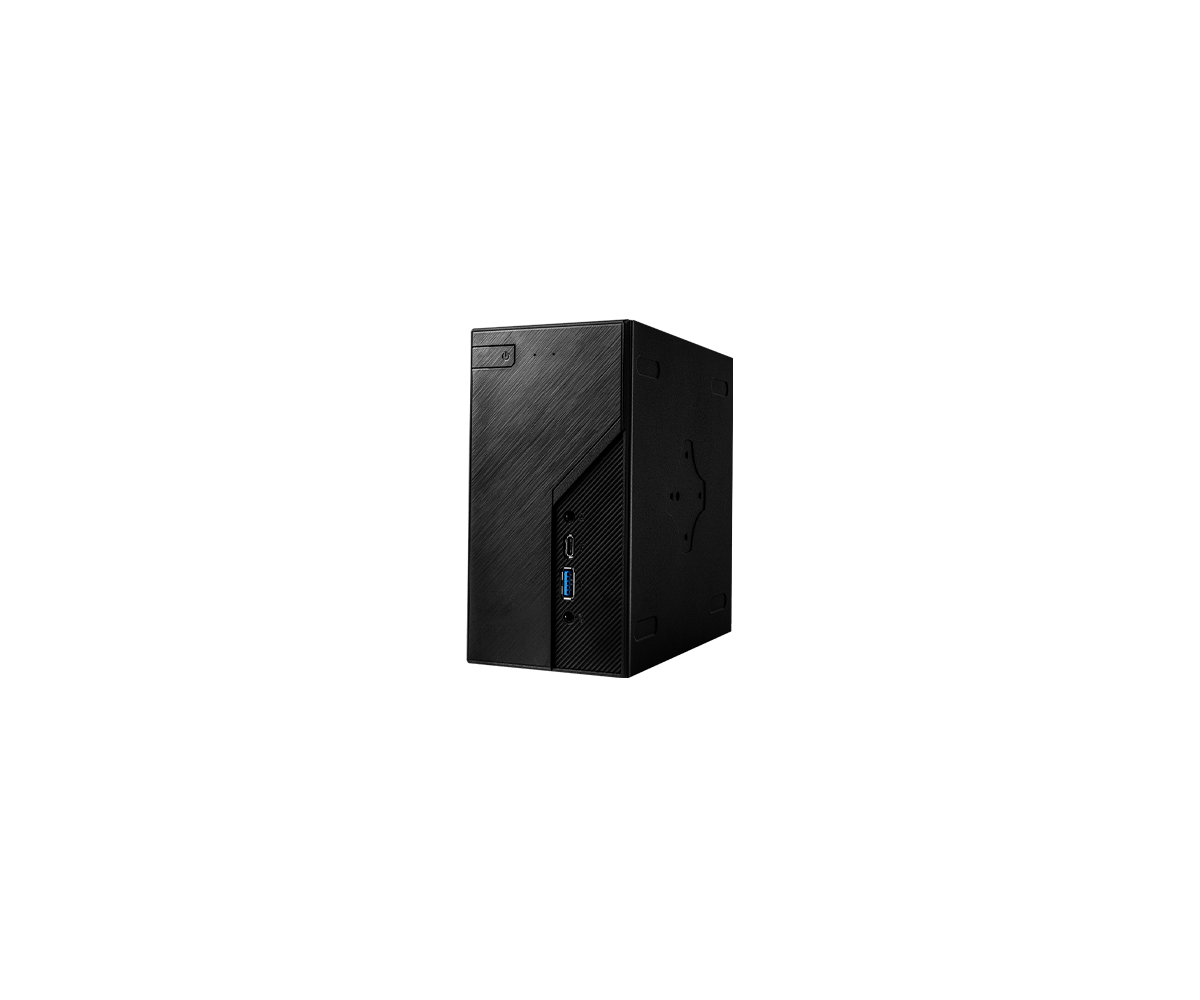

ASRock DeskMini B760 Barebones PC

Asrock Deskmini B760 - Barebones Mini PC - LGA1700 - Ingen Ram, Lagring Eller CPU
1 499,00DKK1 199,20DKK ekskl. moms
Tilføj colli (10 stk)

  • Varenummer 1001694933

    Model 90BXG4E01-A10GA0W

    Producent
    Gå til producentens hjemmeside

    EAN 4710483942921

    Vægt 1.78 kg

  • Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
CPU Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
Cooler Supports Intel® CPU Cooler (Max. Height ≦ 47mm)
Memory Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset Intel® B760
Audio Realtek ALC269 Audio Codec
Storage 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1) - 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
LAN 2.5 Gigabit LAN (Dragon RTL8125BG)
WLAN 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)

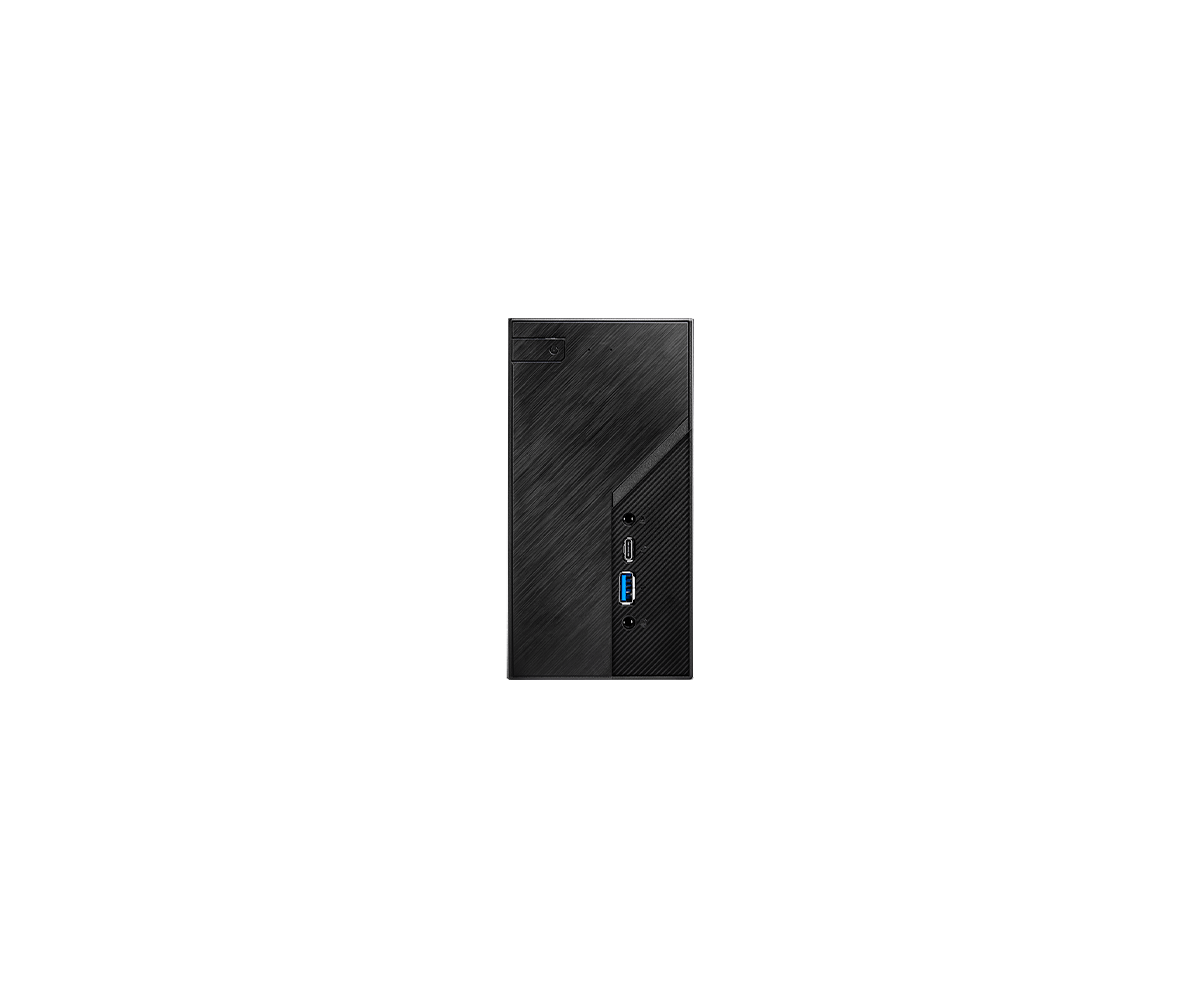

Front I/O 1 x MIC-In - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x Head Phone with MIC Jack

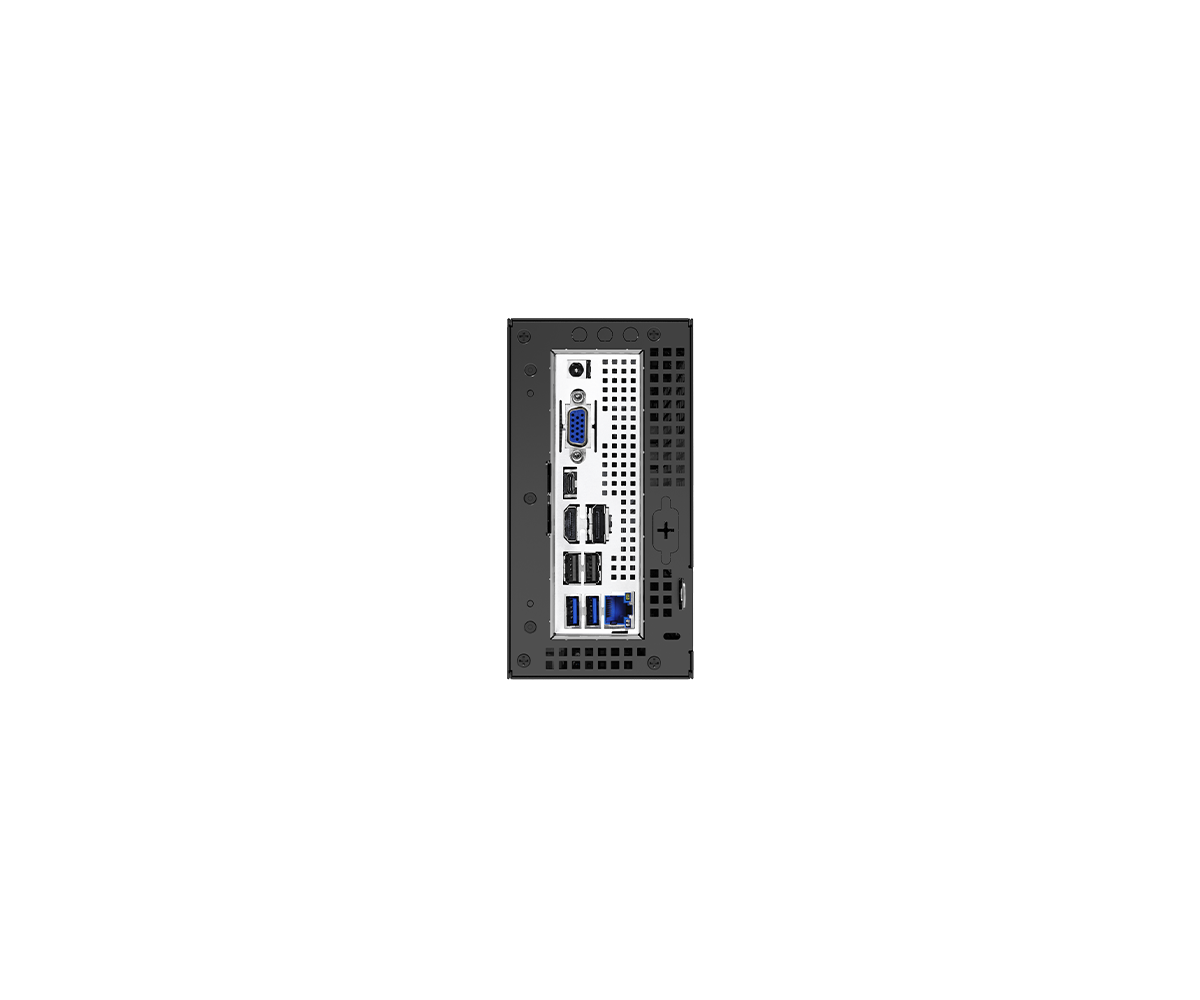

Rear I/O 1 x DC-In Jack (Compatible with the 19V power adapter) - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED
Connectors 1 x USB 2.0 Header - 1 x Front Panel Header - 2 x 4-Pin fan connectors (CPU, SYS) - 1 x Internal Speaker Header (4-Pin) - 1 x Audio Header (4-Pin)
Accessory 2 x SATA Data with Power Cable - 1 x 120W/19V adapter - 1 x Screws Pack
Dimension 155 x 155 x 80 mm (1.92L)
