Zyxel WAX630S Trådløs forbindelse Hvid
Zyxel WAX630S - Trådløs forbindelse - Wi-Fi 6 - 2.4 GHz, 5 GHz - DC-strøm - cloud-administreret
-
Product no 1000464022
Model WAX630S-EU0101F
Brand ZyXEL Communications
EAN 4718937619474
Weight 1.02 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Zyxel WAX630S - trådløs forbindelse - Wi-Fi 6 - cloud-administreret |
| Enhedstype | Trådløs forbindelse |
| Formfaktor | Ekstern |
| Processor | Qualcomm |
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frekvensbånd | 2.4 GHz, 5 GHz |
| Præstation | Maksimum datahastighed (2,4 GHz): 575 Mbps<br>Maksimum datahastighed (5 GHz): 2400 Mbps |
| Udstyr inkluderet | Mounting screws, monteringsplade |
| Power Over Ethernet (PoE) understøttet | PoE+ |
| Effekt | DC 12 V/PoE |
| Dimensioner (B x D x H) | 18 cm x 18 cm x 3.9 cm |
| Vægt | 530 g |
| General | |
|---|---|
| Depth | 18 cm |
| Device Type | Wireless access point |
| Height | 3.9 cm |
| Weight | 530 g |
| Width | 18 cm |
| Processor / Memory / Storage | |
| Processors Installed | Qualcomm |
| Networking | |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Cloud-Managed | Yes |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac, 802.11ax |
| Encryption Algorithm | WPA, WPA2, WEP, WPA3, WPA3-Enterprise, WPA2-Personal |
| Features | Load balancing, VLAN support, DiffServ support, manageable, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, surge protection, Wi-Fi Multimedia (WMM) support, rogue access point detection, MU-MIMO technology, Un |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | OFDMA |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps | Maximum data rate (5 GHz): 2400 Mbps |
| Remote Management Protocol | SNMP, CLI |
| Antenna | |
| Antenna | Internal |
| Expansion / Connectivity | |

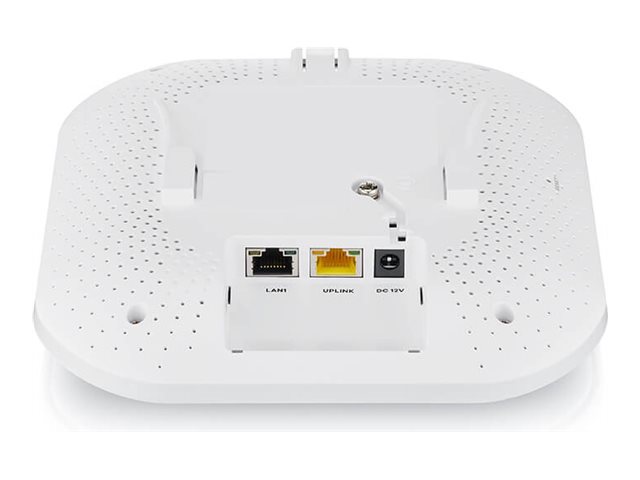

| Interfaces | 1 x 1/2.5GBase-T (PoE) - RJ-45 - 30 W | 1 x 1000Base-T (uplink) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17 |
| Included Accessories | Mounting screws, mounting plate |
| MTBF | 321,114 hours |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Voltage Required | DC 12 V / PoE |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 21.6 cm |
| Shipping Height | 6.3 cm |
| Shipping Weight | 765 g |
| Shipping Width | 22.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
