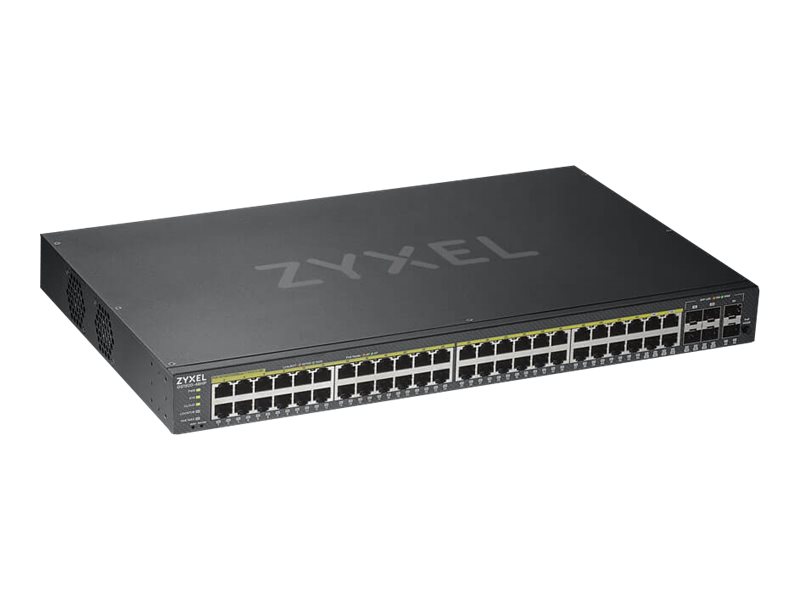

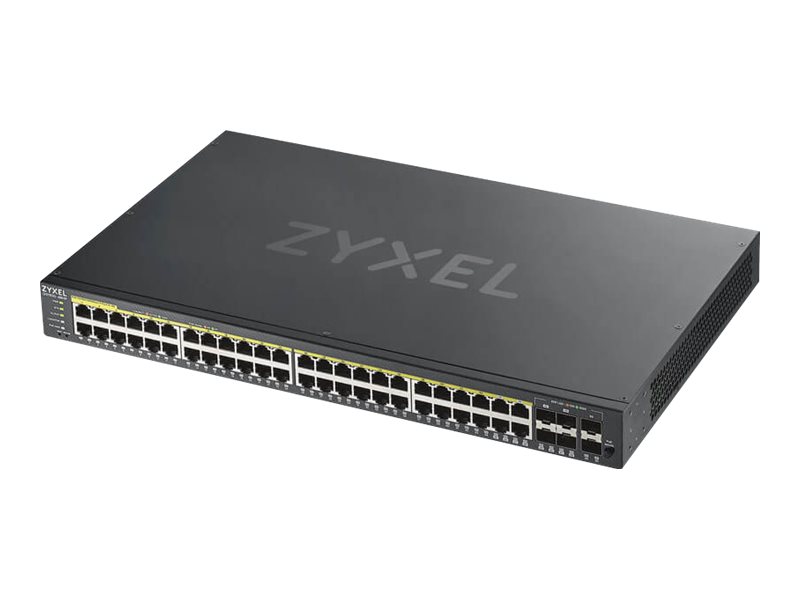

Zyxel GS1920-48HPv2- 48 Port Smart Managed PoE Swi
Product no 993536494
Model GS192048HPV2-EU0101F
Brand ZyXEL Communications
EAN 4718937601974
Weight 5.29 kg
General | |
---|---|
Authentication Method | RADIUS, TACACS+ |
Capacity | QoS hardware queues per port: 8 |
Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Device Type | Switch - 48 ports - smart |
Enclosure Type | Rack-mountable 1U |
Encryption Algorithm | SSL |
Features | Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Weig |
Flash Memory | 32 MB |
MAC Address Table Size | 16K entries |
Performance | Switching capacity: 100 Gbps | Forwarding rate: 74 Mpps |
PoE Budget | 375 W |
Ports | 48 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
RAM | 256 MB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W | 4 x 1000Base-X SFP | 2 x 1000Base-X SFP |
Power | |
Power Consumption Operational | 474.3 Watt |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
MTBF | 502,509 hours |
Rack Mounting Kit | Included |
Dimensions & Weight | |
Depth | 27 cm |
Height | 4.4 cm |
Weight | 4.1 kg |
Width | 44.1 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 35.5 cm |
Shipping Height | 10.7 cm |
Shipping Weight | 5.25 kg |
Shipping Width | 61.6 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Humidity Range Operating | 10 - 95% (non-condensing) |
Humidity Range Storage | 10 - 95% (non-condensing) |
Max Operating Temperature | 50 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -40 °C |
