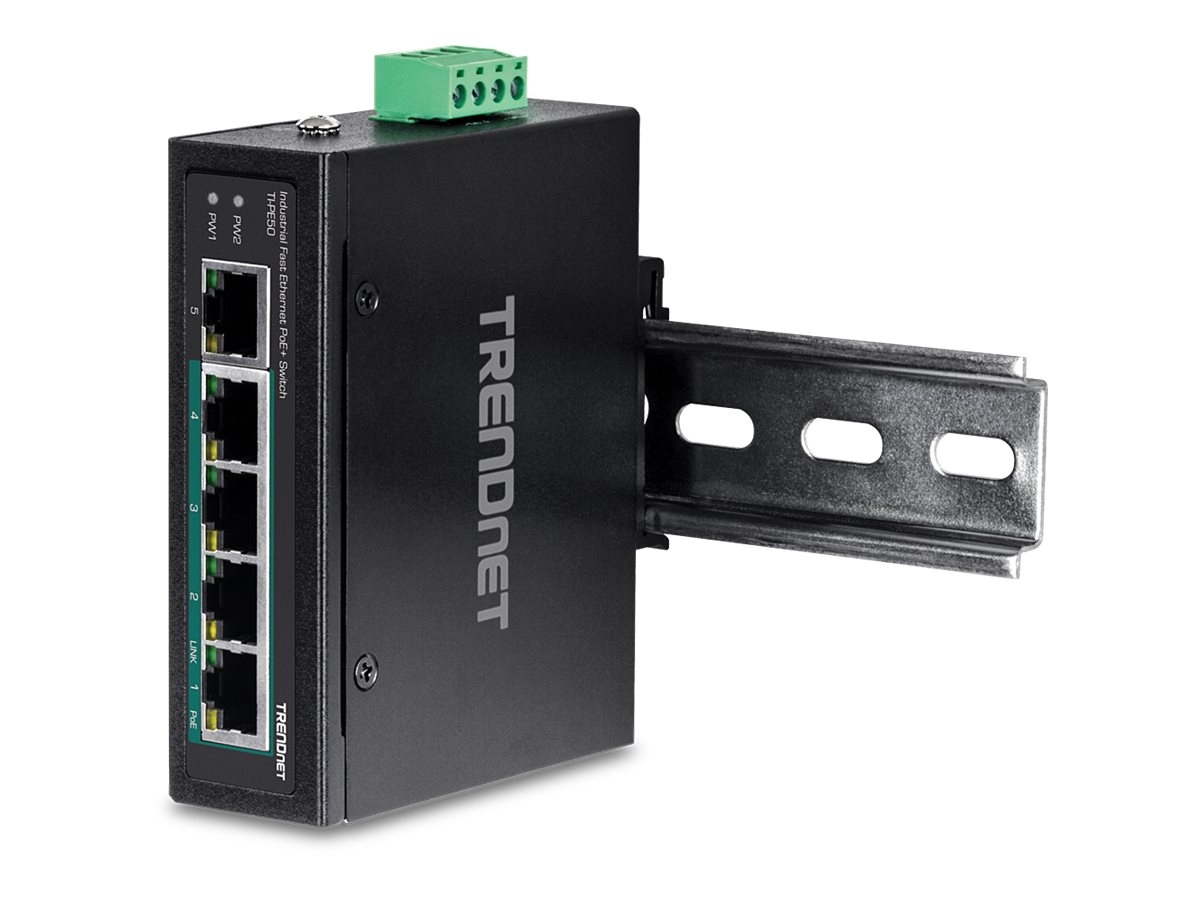

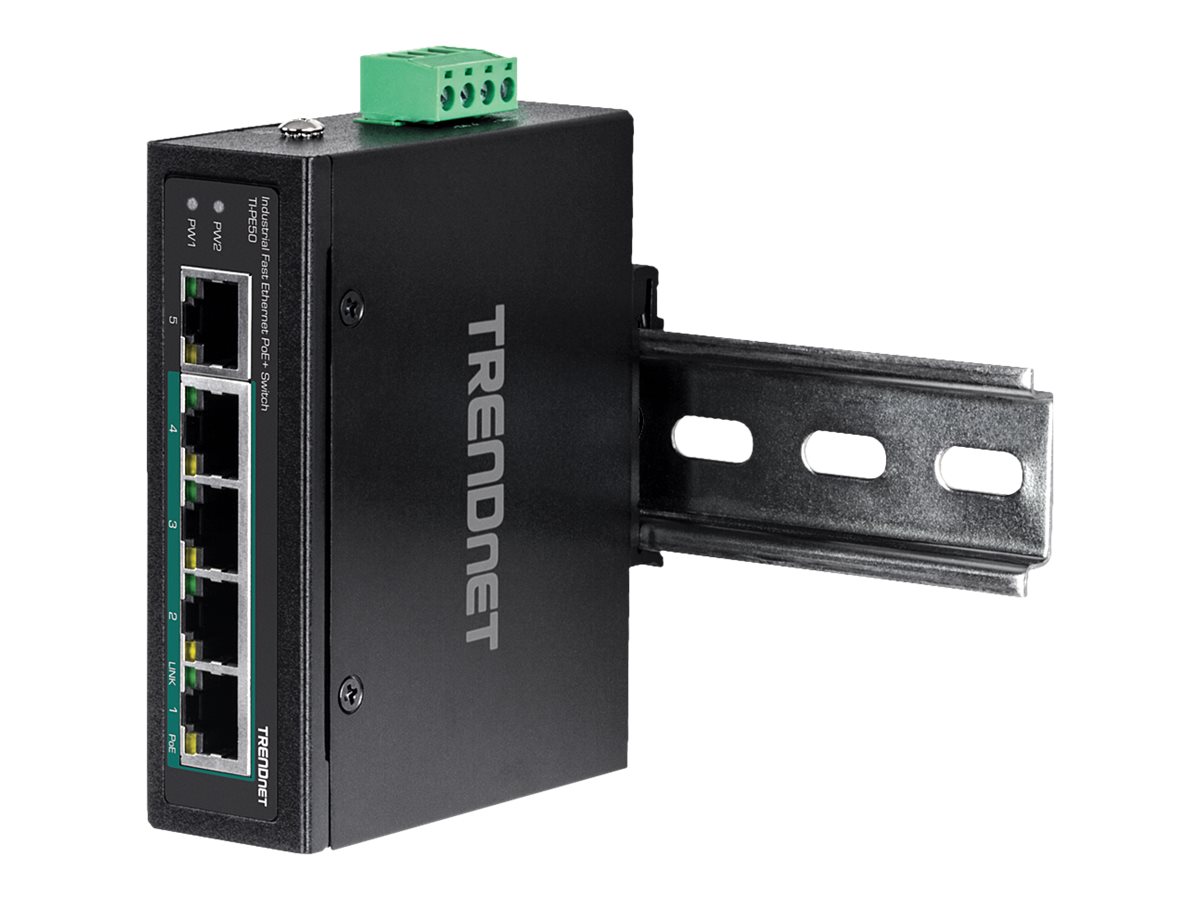

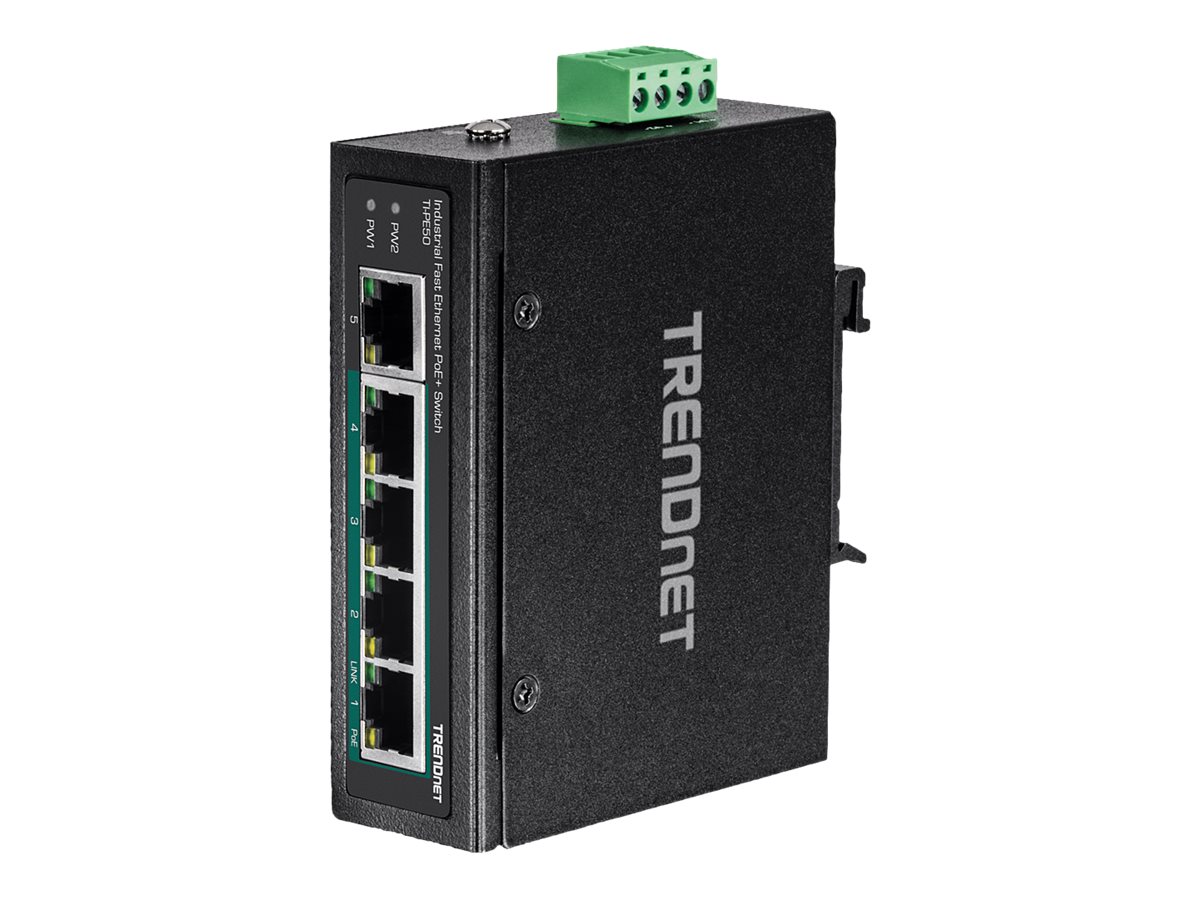

TRENDnet TI-PE50 Switch 5-porte 10/100 PoE+
TRENDnet TI-PE50 - Switch - ikke administreret - 4 x 10/100 (PoE+) + 1 x 10/100 - DIN monterbar på skinne, væg-monterbar - PoE+ (90 W) - DC strøm - TAA-kompatibel
773,00DKK618,40DKK excl. VAT
-
Product no 994884240
Model TI-PE50
Brand
Go to brand's websiteEAN 0710931161601
Weight 0.45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-PE50 - switch - 5 porte - ikke administreret - TAA-kompatibel |
| Enhedstype | Switch - 5 porte - ikke administreret |
| Undertype | Fast Ethernet |

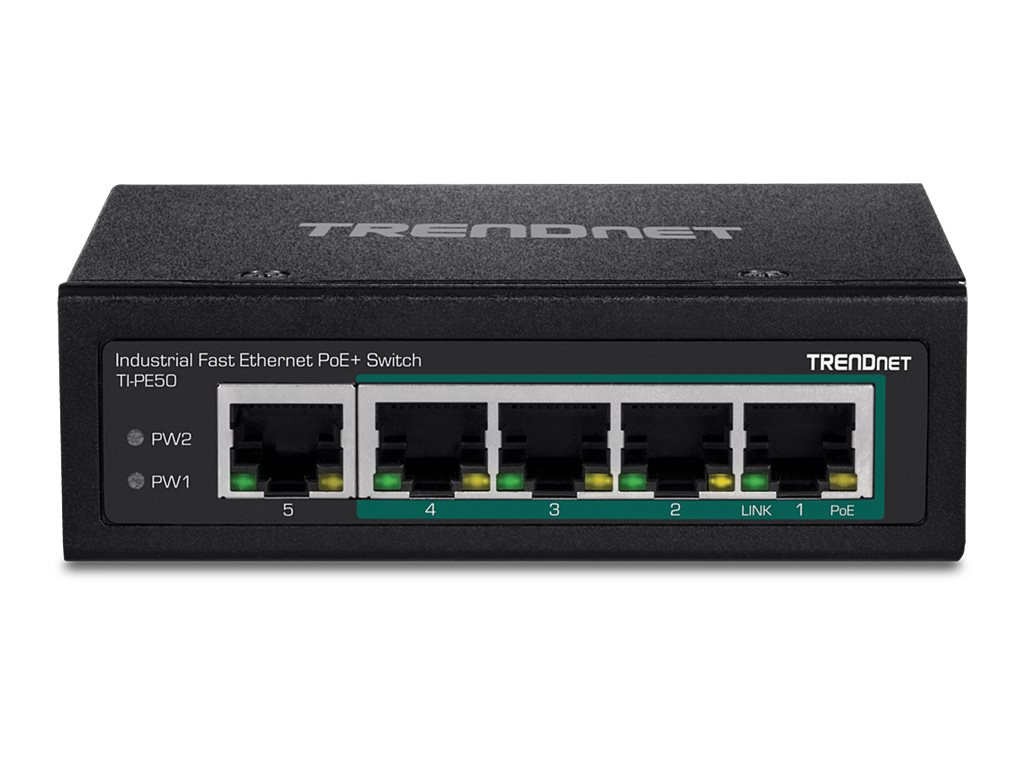

| Porte | 4 x 10/100 (PoE+) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 90 W |
| Præstation | Skift af stofbåndbredde: 1 Gbps<br>Videresendelsespræstation (64-byte pakkestørrelse): 0,744 Mpps |
| MAC adresse table størrelse | 1 K indtastningshukommelse |
| Egenskaber | Auto-negotiation, gem og send, halv dupleksmodus, fuld dupleksmodus, 56 KB pakkebuffer, 6KV ESD Protector |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |

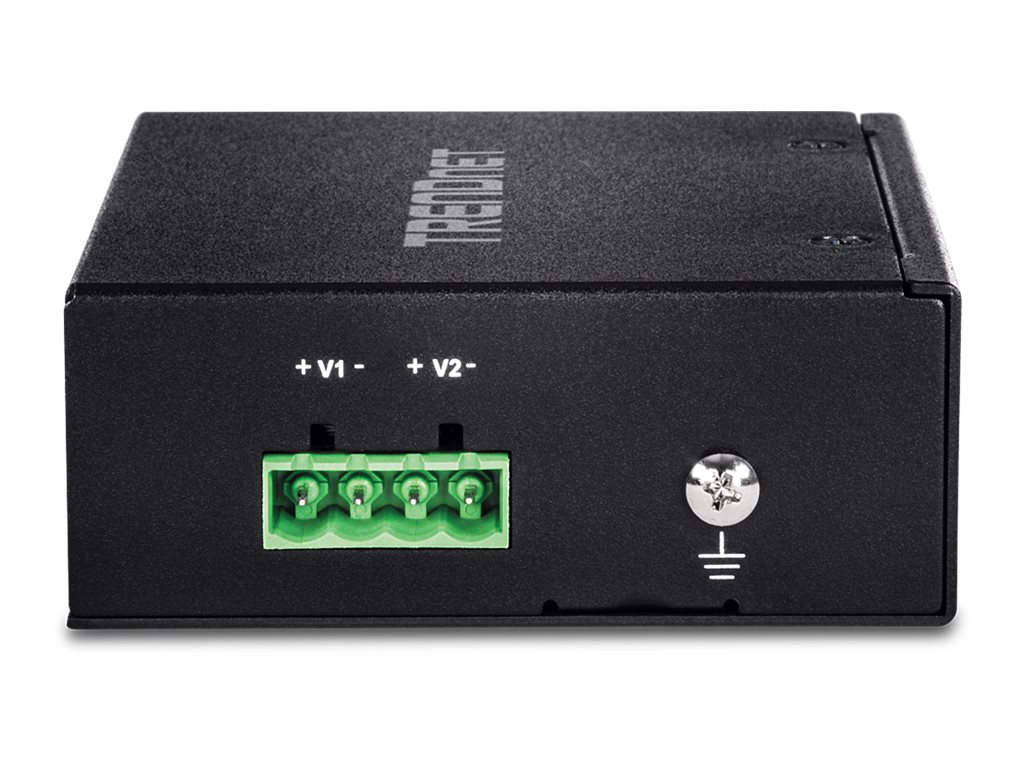

| Effekt | DC 48 - 56 V - strømadapter ikke inkluderet |
| Dimensioner (B x D x H) | 8.2 cm x 10.3 cm x 3.1 cm |
| Vægt | 160 g |
| TAA kompatibel | Ja |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Device Type | Switch - 5 ports - unmanaged |

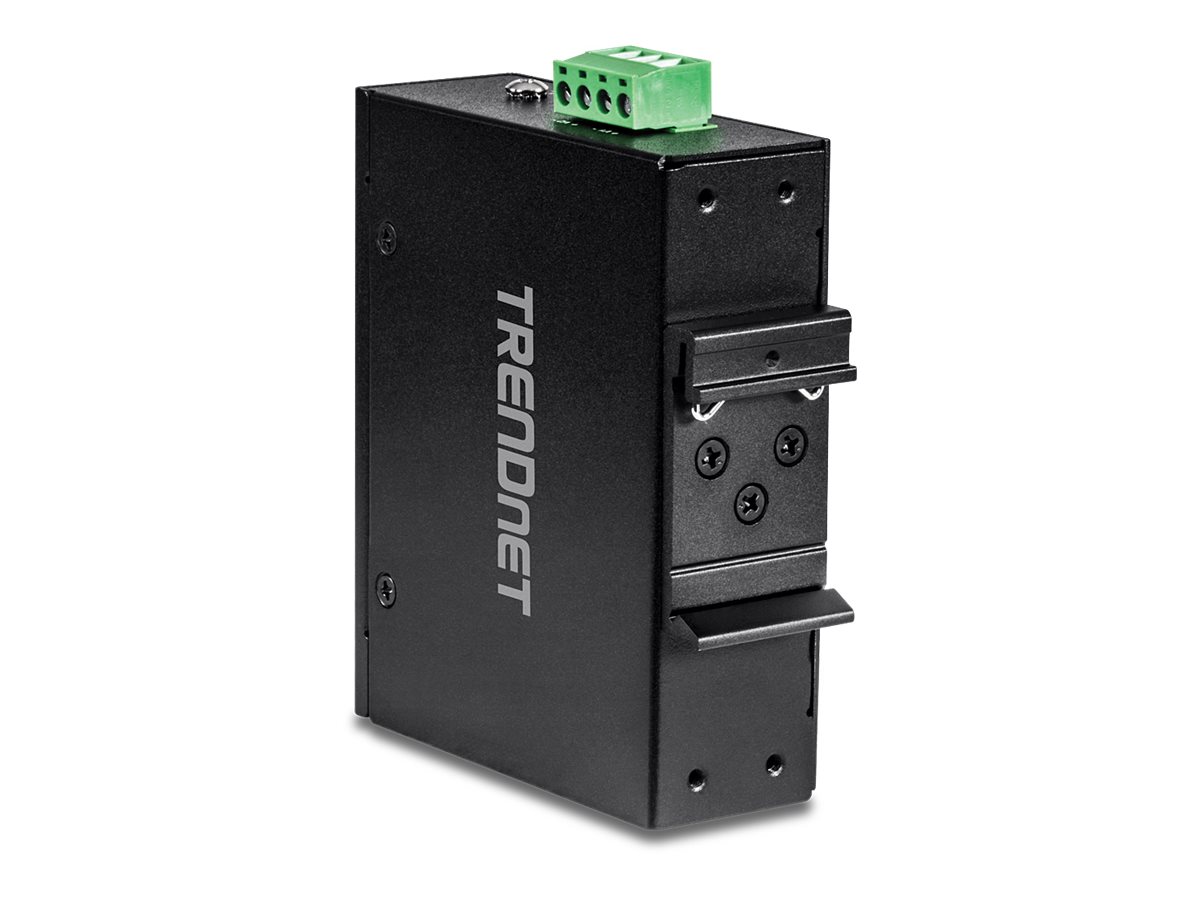

| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, 56KB packet buffer, 6KV ESD Protector |
| MAC Address Table Size | 1K entries |
| Performance | Switching fabric bandwidth: 1 Gbps | Forwarding performance (64-byte packet size): 0.744 Mpps |
| PoE Budget | 90 W |
| Ports | 4 x 10/100 (PoE+) + 1 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| Subtype | Fast Ethernet |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 | 1 x 1000Base-T RJ-45 |
| Power | |
| Power Consumption Operational | 2.76 Watt |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 48 - 56 V |
| Miscellaneous | |
| Compliant Standards | FCC, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 708,903 hours |
| Dimensions & Weight | |
| Depth | 10.3 cm |
| Height | 3.1 cm |
| Weight | 160 g |
| Width | 8.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
