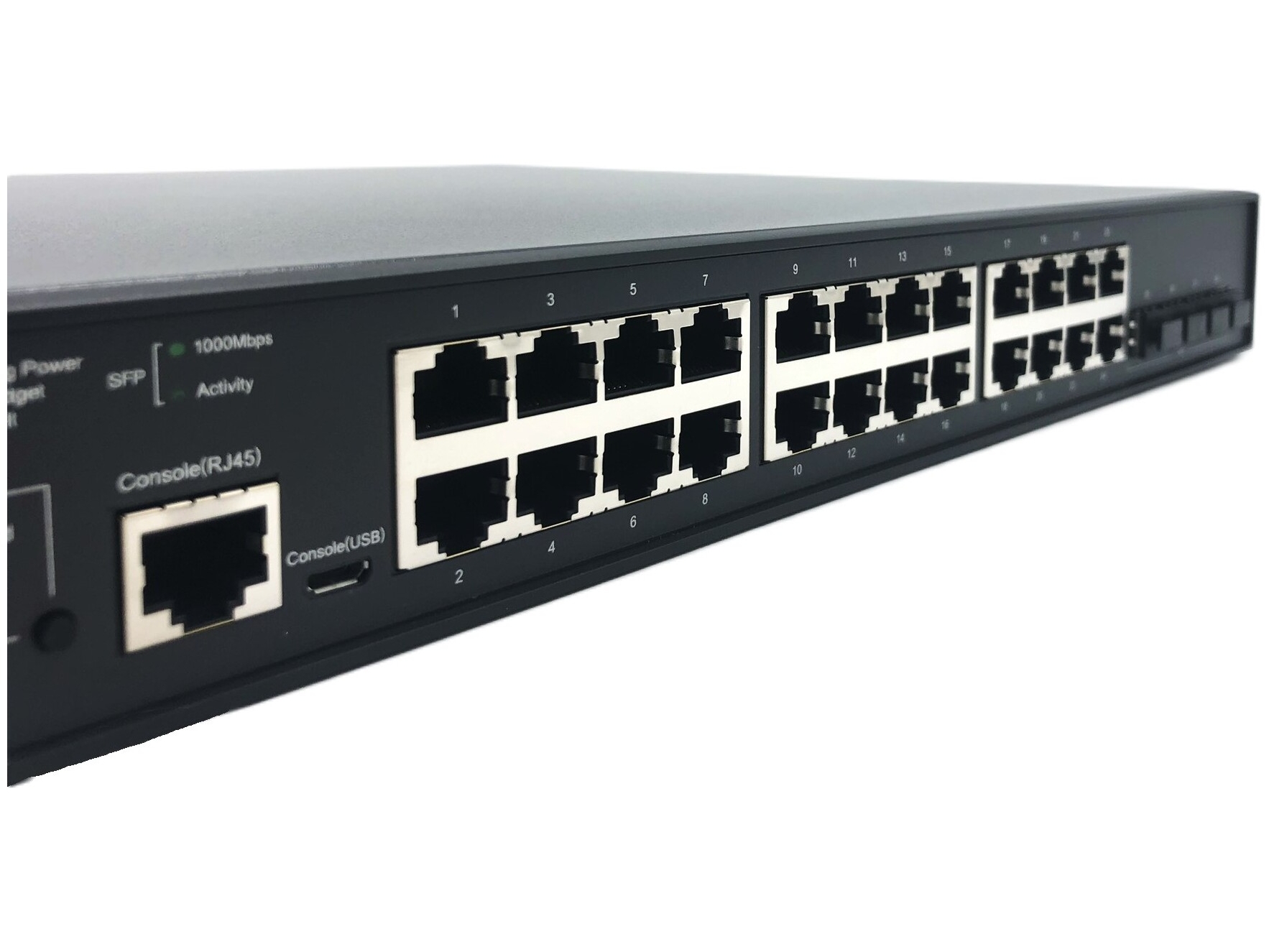

TP-Link JetStream TL-SG3428MP Switch 28-porte Gigabit PoE+
TP-Link JetStream TL-SG3428MP - Switch - Administreret - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - monterbar på stativ - PoE+ (384 W)
2 677,00DKK2 141,60DKK excl. VAT
-
Product no 996761308
Model TL-SG3428MP
Brand TP-LINK Technologies
EAN 6935364010737
Weight 6.22 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TP-Link JetStream TL-SG3428MP - switch - 28 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 28 porte - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 384 W |
| Præstation | Omkoblingskapacitet: 56 Gbps<br>Pakkevideresendelseshastighed: 41,66 Mpps |
| Kapacitet | Prioritetskøer: 8<br>VLAN-grupper: 4000 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Egenskaber | Datatransport, VPN support, understøttet af BOOTP, understøttet af ARP, IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MDL snooping, Cable Diagnostics Function, båndbreddekontrol, DLDP support, LLDP support, DHCP videresendelse, LACP, Port Security, MVR, NDP, portisolering, CoS, SP, GVRP, 802.1x autentificering, sky-administreret, DSCP support, 2 blæsere, IP-kildebekyttelse, ARP-inspektion, BPDU, dobbelt billedsupport, SDN, AAA, LLDP-MED, VLAN-gruppe, gæsteadgang, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, tilbageløkke-detektion, Advanced QoS, MAB, sikkerhedsåbning (Kensington-sikkerhedslåskompatibel) |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Dimensioner (B x D x H) | 44 cm x 33 cm x 4.4 cm |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Priority queues: 8 | VLAN groups: 4000 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL, SSL 3.0, TLS 1.2 |
| Features | Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFl |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 56 Gbps | Packet forwarding rate: 41.66 Mpps |
| PoE Budget | 384 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators | Status |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W | 4 x 1000Base-X SFP | 1 x console RJ-45 | 1 x micro-USB console |
| Power | |
| Power Consumption Operational | 463.8 Watt |
| Power Device | Internal power supply |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 33 cm |
| Height | 4.4 cm |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
