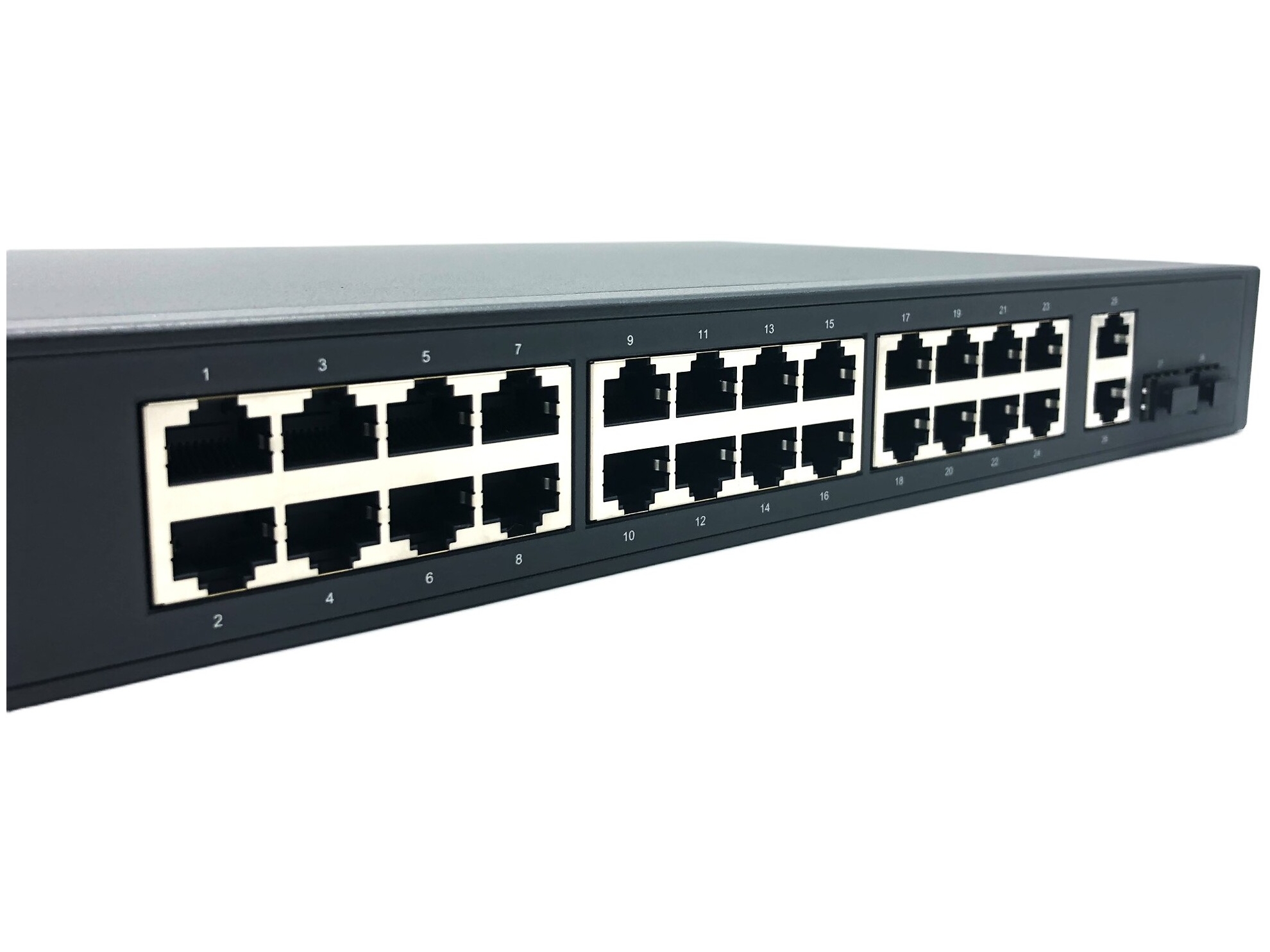

TL-SG1428PE er fuldt kompatibel med PoE-enheder som IP-kameraer, access points og IP-telefoner. Den fungerer også med ikke-PoE-kablede enheder for at give gigabit-forbindelser, såsom pc'er, printere og IPTV.
Product no 996543735
Model TL-SG1428PE
Brand TP-LINK Technologies
EAN 6935364072209
Weight 3.98 kg
Produktbeskrivelse | TP-Link TL-SG1428PE - switch - 28 porte - smart - monterbar på stativ |
Enhedstype | Switch - 28 porte - smart |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 250 W |
Præstation | Omkoblingskapacitet: 56 Gbps<br>Fremsendelsespræstation: 41.7 Mpps |
Kapacitet | Pakkebufferstørrelse: 4,1 Mbit |
MAC adresse table størrelse | 8K indtastningshukommelse |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3 |
Egenskaber | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, gem og send, QoS, Cable Diagnostics Function, løkkeforebyggelse, sikkerhedslåseåbning (kabellås solgt separat), DSCP support, 2 blæsere, Storm Control, Static Link Aggregation, DSCP-prioritering |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at |
Effekt | AC 100 - 240 V (50/60 Hz) |
Dimensioner (B x D x H) | 44 cm x 22 cm x 4.4 cm |
General | |
---|---|
Capacity | Packet buffer size: 4.1 Mbit |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at |
Device Type | Switch - 28 ports - smart |
Enclosure Type | Rack-mountable 1U |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Quality of Service (QoS), Cable Diagnostics Function, loop prevention, security lock slot (cable lock sold separately), DiffServ Code Point (DSCP) suppo |
Jumbo Frame Support | 9KB |
MAC Address Table Size | 8K entries |
Performance | Switching capacity: 56 Gbps | Forwarding performance: 41.7 Mpps |
PoE Budget | 250 W |
Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE+ |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots | 2 (total) / 2 (free) x SFP (mini-GBIC) |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 2 x 10/100/1000 Base-T RJ-45 |
Power | |
Power Consumption Operational | 304.7 Watt |
Power Device | Internal power supply |
Voltage Required | AC 100 - 240 V (50/60 Hz) |
Miscellaneous | |
Compliant Standards | FCC, RoHS |
Included Accessories | Rubber feet |
Rack Mounting Kit | Included |
Dimensions & Weight | |
Depth | 22 cm |
Height | 4.4 cm |
Width | 44 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 90% (non-condensing) |
Humidity Range Storage | 5 - 90% (non-condensing) |
Max Operating Temperature | 50 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -40 °C |
