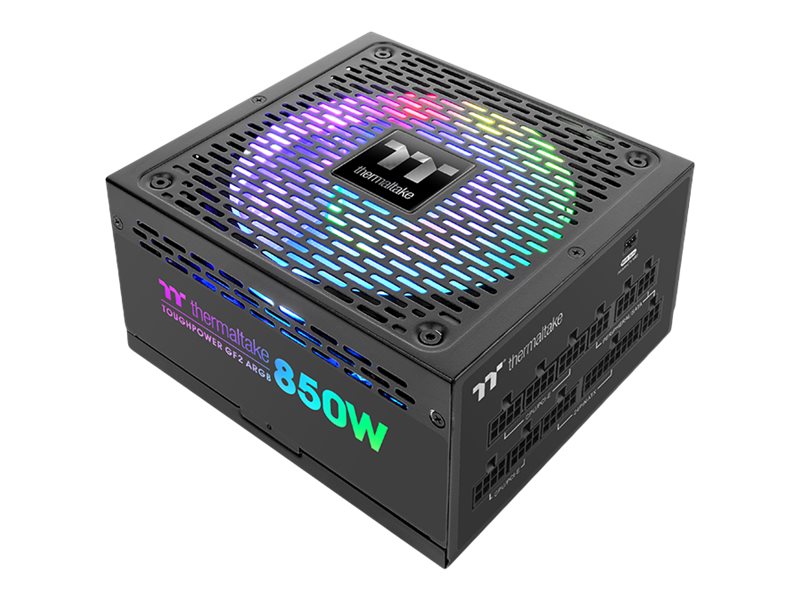

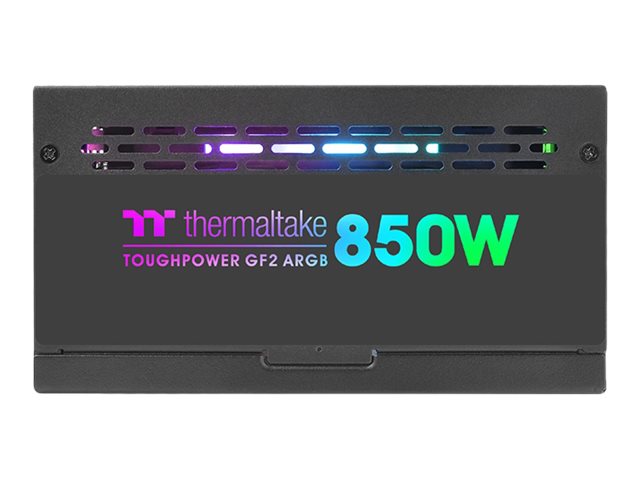

Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A Strømforsyning 850Watt
Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A - TT Premium Edition - strømforsyning (intern) - ATX12V - 80 PLUS Gold - 850 Watt - aktiv PFC - sort
1 085,00DKK868,00DKK excl. VAT
-
Product no 998154375
Model PS-TPD-0850F3FAGE-2
Brand Thermaltake Technolo
EAN 4713227527262
Weight 2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Thermaltake ToughPower GF2 ARGB TTP-850AH3FSG-A - TT Premium Edition - strømforsyning - 850 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 850 Watt |
| Output Current | +3.3V - 22 A<br>+5V - 22 A<br>+12V - 70.9 A<br>-12V - 0.3 A<br>+5VSB - 3 A |

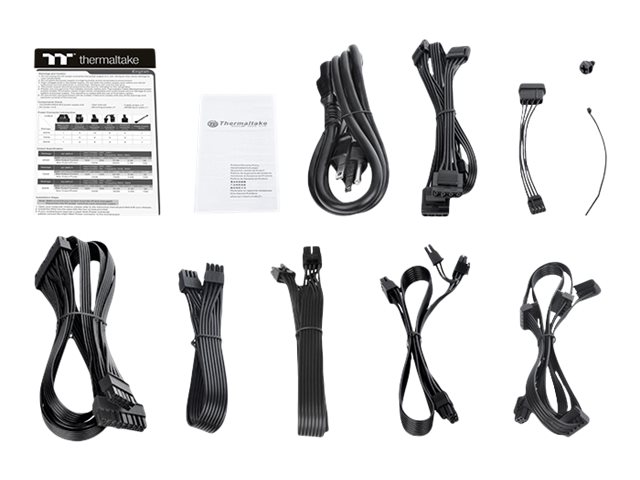

| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>12 x 15 pin Serial ATA strøm<br>6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 4-PIN intern strøm<br>1 x effekt 8 pins +12V |
| Modulær Kabel Administration | Ja |
| Kølesystem | 140 mm ventilator |
| Udstyr inkluderet | 150 mm floppy-adapter |
| Farve | Sort |
| Dimensioner (B x D x H) | 15 cm x 16 cm x 8.6 cm |
| Producentgaranti | 10-års garanti |
| General | |
|---|---|
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Frequency Required | 50 - 60 Hz |
| Input Voltage Range | AC 100 - 240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 22 A | +5V - 22 A | +12V - 70.9 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |

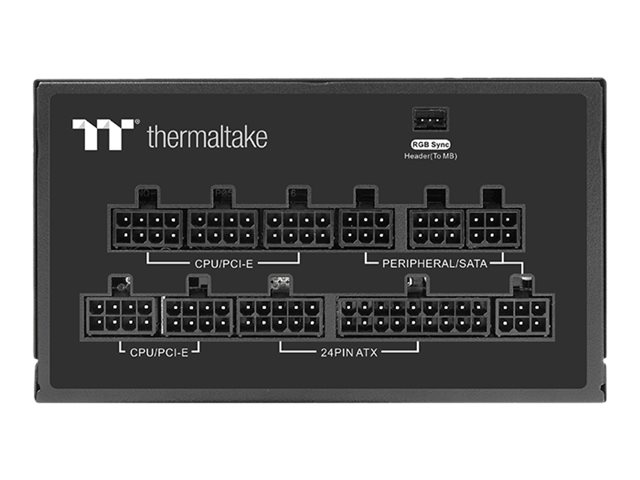

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 12 x 15 pin Serial ATA power | 6 x 8 pin PCI Express power with detachable 2 pin section | 4 x 4 pin internal power | 1 x power 8 pin +12V |
| Miscellaneous | |
| Compliant Standards | TUV, C-Tick, BSMI, FCC, S Mark, cTUVus, EAC |

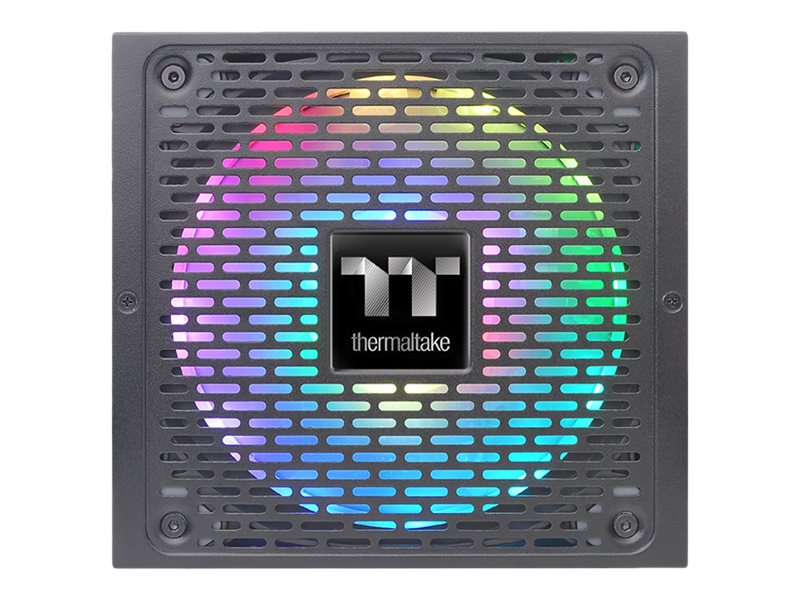

| Cooling System | 140 mm fan |

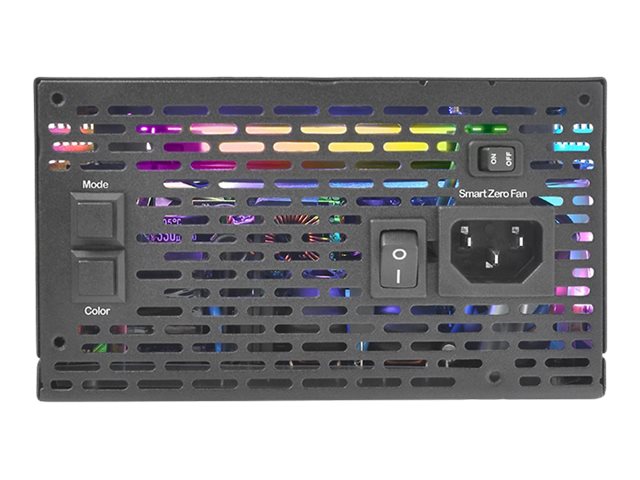

| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, hydraulic bearing cooling fan, fully modular, Smart Zero Fan, 16.8 million colors RGB fan, undervoltage correction, |
| Included Accessories | 150mm floppy adapter |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 8.6 cm |
| Width | 15 cm |
