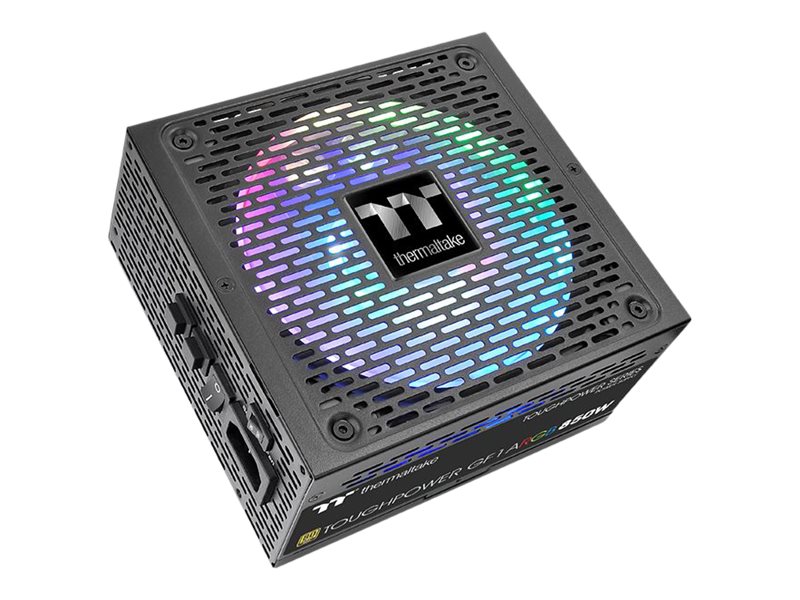

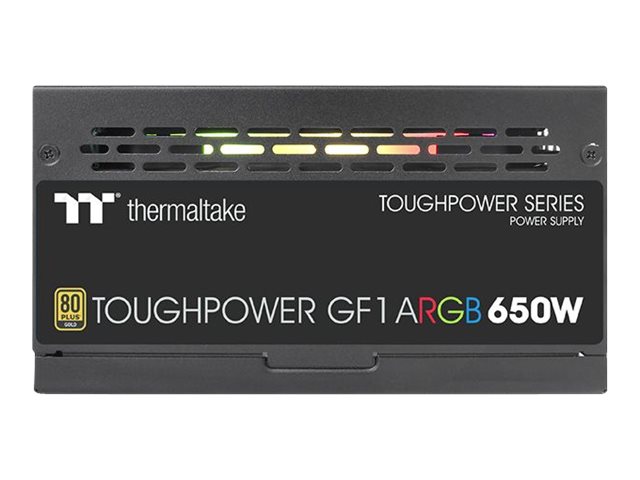

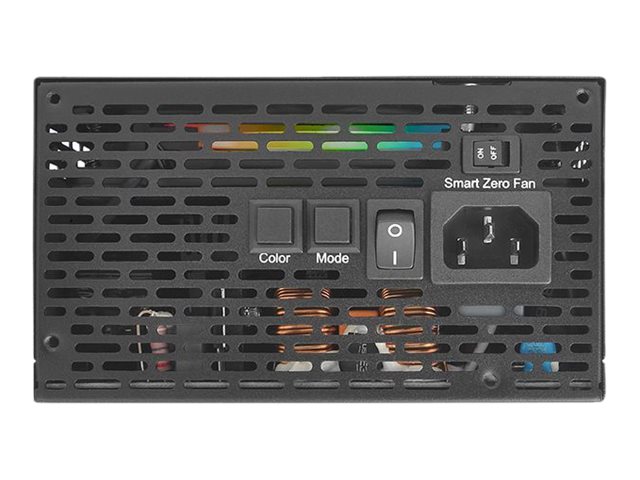

Thermaltake ToughPower GF1 ARGB 650W Strømforsyning 650Watt
Thermaltake ToughPower GF1 ARGB 650W - TT Premium Edition - strømforsyning (intern) - ATX12V - 80 PLUS Gold - 650 Watt - aktiv PFC
841,00DKK672,80DKK excl. VAT
-
Product no 994817920
Model PS-TPD-0650F3FAGE-1
Brand Thermaltake Technolo
EAN 4713227521277
Weight 3.12 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Thermaltake ToughPower GF1 ARGB 650W - TT Premium Edition - strømforsyning - 650 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 650 Watt |
| Output Current | +3.3V - 22 A<br>+5V - 22 A<br>+12V - 54.2 A<br>-12V - 0.3 A<br>+5VSB - 3 A |

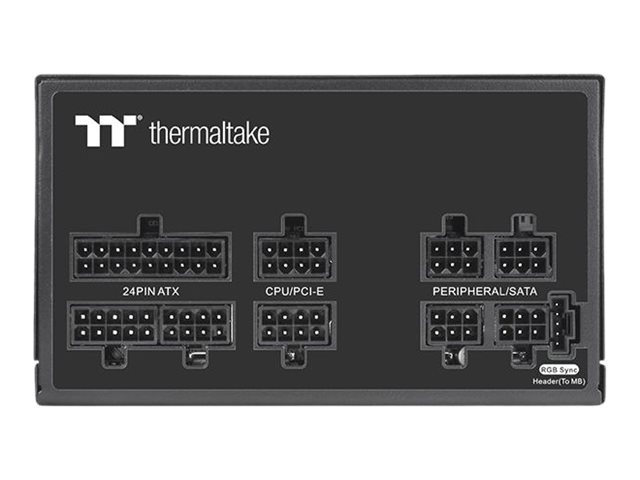

| Output-stikforbindelser | 1 x 4-PIN mini-strømforsyningsforbinder<br>1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>9 x 15 pin Serial ATA strøm<br>4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 4-PIN intern strøm |
| Modulær Kabel Administration | Ja |
| Dimensioner (B x D x H) | 15 cm x 16 cm x 8.6 cm |
| Producentgaranti | 10-års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage Range | AC 100 - 240 V |
| Modular Cable Management | Yes |
| Output Current | +3.3V - 22 A | +5V - 22 A | +12V - 54.2 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Power Output Connectors Details | 1 x 4 pin mini-power connector | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 9 x 15 pin Serial ATA power | 4 x 8 pin PCI Express power with detachable 2 pin section | 4 x 4 pin internal po |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, CCC, FCC, S Mark, cTUVus, EAC |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, fully modular, Smart Zero Fan, 16.8 million colors RGB fan, undervoltage correction, ASUS Aura Sync, MSI Mystic Ligh |
| MTBF | 120,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 16 cm |
| Height | 8.6 cm |
| Width | 15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 23 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 3.1 kg |
| Shipping Width | 32.5 cm |
