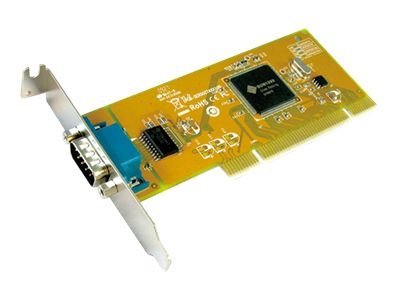

Sunix SER5027AL Seriel adapter PCI 115.2Kbps
Sunix SER5027AL - Seriel adapter - PCI lavprofil - RS-232
139,00DKK111,20DKK excl. VAT
-
Product no 988504279
Model 5027AL
Brand Sunix Group
EAN 4710747388465
Weight 0.19 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Sunix SER5027AL - seriel adapter - PCI - RS-232 |
| Enhedstype | Seriel adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI |
| PCI-specifikationsrevision | PCI 2.1, PCI 2.2, PCI 2.3, PCI 3.0 |
| Bus-spænding | Universal (3,3 V & 5,0 V) |
| Porte | RS-232 |
| Dimensioner (B x D x H) | 12 cm x 5.1 cm |
| Dataforbindelsesprotokol | RS-232 |
| Dataoverførselshastighed | 115.2 Kbps |
| Processor | 1 x Sunix Sunix SUN1989 |
| Systemkrav | Microsoft DOS, IBM OS/2 Warp 4.0, IBM OS/2 Warp 3.0, Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows XP Embedded, SCO OpenServer 5.0.7, UnixWare 7.1.3, Linux 2.4.x, UnixWare 7.1.4, SunSoft Solaris 10, Microsoft Windows Embedded Standard 2009, Microsoft Windows 7, Microsoft Windows Embedded CE 6.0, Linux 2.6.x, Microsoft Windows CE 5.0, SCO OpenServer 6, Microsoft Windows Embedded POSReady 2009, Microsoft Windows 7 64-bit Edition, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Vista (32/64 bits), FreeBSD 5.3 - 5.5, FreeBSD 6.0 - 6.4 |
| Microsoft Certification | Kompatibel med Windows 7 |
| General | |
|---|---|
| Bus Voltage | Universal (3.3 V & 5.0 V) |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI |
| PCI Specification Revision | PCI 2.1, PCI 2.2, PCI 2.3, PCI 3.0 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Flow control |
| Ports | RS-232 |
| Processor / Memory | |
| Processor | 1 x Sunix Sunix SUN1989 |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, WHQL, CISPR 22, EN55022 Class B, FCC Part 15 B, FCC, RoHS, BSMI CNS 13438 |
| Software / System Requirements | |
| OS Required | Microsoft DOS, IBM OS/2 Warp 4.0, IBM OS/2 Warp 3.0, Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows XP Embedded, SCO OpenServer 5.0.7, UnixWare 7.1.3, Linux 2.4.x, UnixWare 7.1.4, SunSoft Solaris |
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 5.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
