StarTech.com M2 PCIe SSD Adapter - x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key - Low Profile and Full Profile - SSD PCIe M.2 Adapter (PEX4M2E1) Interfaceadapter

StarTech.com M2 PCIe SSD Adapter - x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key - Low Profile and Full Profile - SSD PCIe M.2 Adapter (PEX4M2E1) - Interfaceadapter - M.2 - Expansion Slot to M.2 - M.2 Card - PCIe x4 - rød - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142

210,00 DKK 168,00 DKK excl. VAT

  • Product no 991228612

    Model PEX4M2E1

    Brand StarTech.com

    EAN 0065030865043

    Weight 0.13 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com M2 PCIe SSD Adapter - x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key - Low Profile and Full Profile - SSD PCIe M.2 Adapter (PEX4M2E1) - interfaceadapter - M.2 Card - PCIe x4
Enhedstype Interfaceadapter - indstikskort
Bustype PCIe x4
Farve Rød
Understøttet Form Faktor Expansion Slot to M.2
Udvidelses-båse 1 x intern - M.2
Harddiskens formfaktorkompatibilitet M.2
Interface M.2 Card
Understøttede enheder Solid state drev
Dimensioner (B x D x H) 2.2 cm x 17.8 cm x 8 cm
Vægt 42.2 g
Producentgaranti 2 års garanti
Designet for P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
General
Color Red
Device Type Interface adapter - plug-in card
Hard Drive Form Factor Compatibility M.2
Host Bus PCIe x4
Supported Form Factor Expansion Slot to M.2
Storage Controller
Interface M.2 Card
Supported Devices Solid state drive
Expansion / Connectivity
Bays 1 x internal - M.2
Miscellaneous
Compliant Standards FCC, RoHS, WEEE, RCM
Included Accessories Low-profile bracket, full-height bracket, half-height bracket
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight
Depth 17.8 cm
Height 8 cm
Weight 42.2 g
Width 2.2 cm
Environmental Parameters
Humidity Range Operating 15 - 90%
Max Operating Temperature 50 °C
Min Operating Temperature 5 °C
Compatibility Information
Designed For P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16

Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access

  • Boost system speed and performance by adding a PCIe M.2 SSD to your PC
  • Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives
  • Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
  • Fast and easy setup with native OS support
  • Installs into x4, x8 or x16 PCIe slots
  • Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
slide {0} of {1}, zoom in, Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
slide {0} of {1}, zoom in, Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
slide {0} of {1}, zoom in, Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
slide {0} of {1}, zoom in, Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
slide {0} of {1}, zoom in, Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
Boost your system speed and performance

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

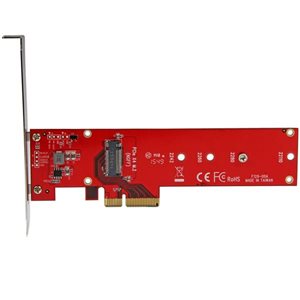

Supports PCIe M.2 SSDs

Supports PCIe M.2 SSDs

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

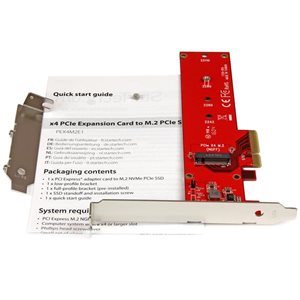

Easy to install

Easy to install

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Connect a PCIe M.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage
  • Get ultra-fast data access, ideal for gaming or high-performance workstations
  • Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
