StarTech.com HDMI Splitter 1 In 4 Out - 1080p - 4 Port -Mounting Brackets - 1.3 Audio - HDMI Multi Port - HDMI Audio Splitter (ST124HDMI2) Videosplitter HDMI

StarTech.com HDMI Splitter 1 In 4 Out - 1080p - 4 Port -Mounting Brackets - 1.3 Audio - HDMI Multi Port - HDMI Audio Splitter (ST124HDMI2) - Videosplitter - 4 x HDMI + 4 x audio - desktop - for P/N: SVA12M2NEUA, SVA12M5NA

1 283,00 DKK 1 026,40 DKK excl. VAT

  • Product no 988492570

    Model ST124HDMI2

    Brand StarTech.com

    EAN 0065030841696

    Weight 1.94 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com HDMI Splitter 1 In 4 Out - 1080p - 4 Port -Mounting Brackets - 1.3 Audio - HDMI Multi Port - HDMI Audio Splitter (ST124HDMI2) - videosplitter - 4 porte
Enhedstype Videosplitter - 4 porte
Undertype HDMI
Porte 4 x HDMI + 4 x audio
Effekt AC 120/230 V
Dimensioner (B x D x H) 13.5 cm x 22 cm x 4.4 cm
Vægt 1.6 kg
Farve Sort
Producentgaranti 2 års garanti
Designet for P/N: SVA12M2NEUA, SVA12M5NA
General
Device Type Video splitter - 4 ports
Enclosure Type Desktop
Features HDTV support
Max Resolution 1920 x 1200 / 1080p
Ports 4 x HDMI + 4 x audio
Subtype HDMI
Expansion / Connectivity
Interfaces 4 x HDMI output | 4 x audio output mini-jack | 1 x HDMI input | 1 x audio input mini-jack
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Miscellaneous
Color Black
Dimensions & Weight
Depth 22 cm
Height 4.4 cm
Weight 1.6 kg
Width 13.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 80%
Max Operating Temperature 40 °C
Max Storage Temperature 60 °C
Min Operating Temperature 0 °C
Min Storage Temperature -20 °C
Compatibility Information
Designed For P/N: SVA12M2NEUA, SVA12M5NA

Split an HDMI® audio and video signal to four displays simultaneously

  • Splits a single HDMI® source to up to 4 HDMI-enabled devices without signal loss
  • Supports a wide range of PC and Supports HDTV resolutions from VGA to WUXGA and 480p to 1080p
  • High Speed HDMI® Compliant
  • Audio signal can be output through HDMI or using separate 3.5mm audio outputs
  • Passes DVI video signals, DVI to HDMI adapters/cables required - not included
  • Cascade up to 3 layers
  • Supports HDCP and EDID
  • LED Power/Active indicator for monitoring each port
  • Quick and easy install

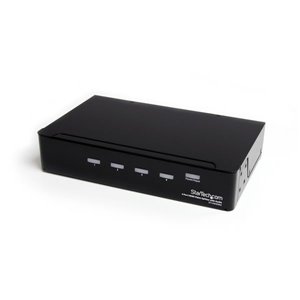

Split an HDMI® audio and video signal to four displays simultaneously
slide {0} of {1}, zoom in, Split an HDMI® audio and video signal to four displays simultaneously
slide {0} of {1}, zoom in, Split an HDMI® audio and video signal to four displays simultaneously
slide {0} of {1}, zoom in, Split an HDMI® audio and video signal to four displays simultaneously
slide {0} of {1}, zoom in, Split an HDMI® audio and video signal to four displays simultaneously

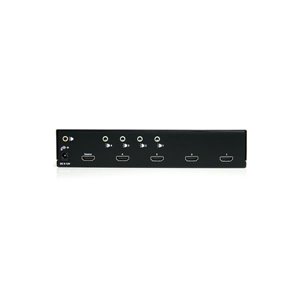

Situate your HDMI-capable displays up to 15ft (5m) away from the splitter

Situate your HDMI-capable displays up to 15ft (5m) away from the splitter

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.

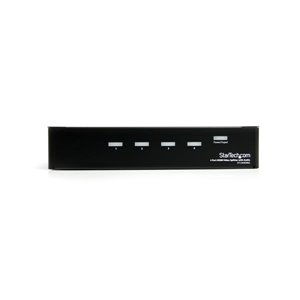

High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays

High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays

 This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.

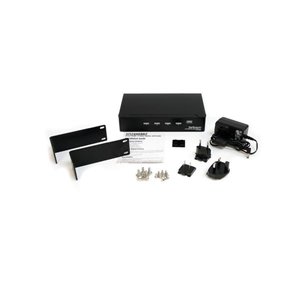

Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality

Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality

A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.

Applications

  • Connect HDMI® enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
  • Ideal for business conference rooms and trade show displays
  • Perfect for classrooms and business multimedia presentations
  • Great for digital signage applications displaying video advertisements with audio in retail environments
  • Financial applications include stock tickers or promotion of new products/services
  • Display information in waiting rooms or to patients in healthcare facilities
