  1. Front page

StarTech.com 1-Port USB 1.1 Extender - Up to 131 ft (40 m) over Cat5/Cat6 Extension - Up to 12 Mbps USB 1.1 Extender (USB110EXT2) USB-forlængerkabel

StarTech.com 1-Port USB 1.1 Extender - Up to 131 ft (40 m) over Cat5/Cat6 Extension - Up to 12 Mbps USB 1.1 Ethernet Extender (USB110EXT2) - USB-forlængerkabel - USB - over CAT 5/6 - op til 40 m - for P/N: UUSBOTG

1 055,00 DKK 844,00 DKK excl. VAT

  • Product no 988492985

    Model USB110EXT2

    Brand StarTech.com

    EAN 0065030847896

    Weight 0.19 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com 1-Port USB 1.1 Extender - Up to 131 ft (40 m) over Cat5/Cat6 Extension - Up to 12 Mbps USB 1.1 Ethernet Extender (USB110EXT2) - USB-forlængerkabel - USB
Enhedstype USB-forlængerkabel
Model Ekstern
Dataoverførselshastighed 12 Mbps
Dataforbindelsesprotokol USB
Transmissionsmedie CAT 5/6
Maks. overføringsafstand 40 m
Systemkrav Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7
Dimensioner (B x D x H) 2.5 cm x 8.5 cm x 4 cm
Vægt 50 g
Producentgaranti 3 års garanti
Designet for P/N: UUSBOTG
General
Color Black
Device Type USB extender
Form Factor External
Networking
Compliant Standards USB 1.1
Connectivity Technology Wired
Data Link Protocol USB
Data Transfer Rate 12 Mbps
Features USB powered
Max Transfer Distance 40 m
Expansion / Connectivity
Interfaces 1 x USB - Type A female | 1 x USB - Type A male | 2 x - RJ-45 female
Miscellaneous
Compliant Standards FCC, RoHS
Software / System Requirements
OS Required Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7
Dimensions & Weight
Depth 8.5 cm
Height 4 cm
Weight 50 g
Width 2.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Humidity Range Operating 20 - 90%
Max Operating Temperature 50 °C
Min Operating Temperature 0 °C
Compatibility Information
Designed For P/N: UUSBOTG

Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable

  • 1x USB 1.1 port, 1x RJ45 port
  • Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
  • Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps
Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
slide {0} of {1}, zoom in, Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
slide {0} of {1}, zoom in, Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
slide {0} of {1}, zoom in, Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable

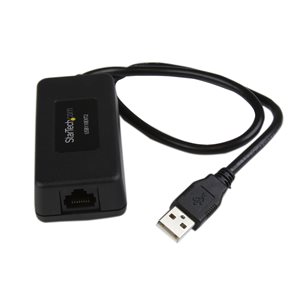

USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters)

USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters)

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders

Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders

The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

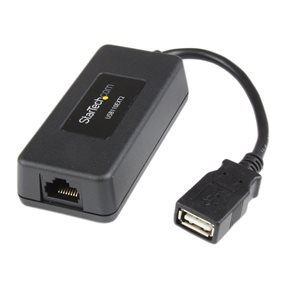

Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps

Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps

Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.

Applications

  • Secured environments where the host computer must be in a secure, inaccessible location from the the keyboard, mouse, camera or other USB input devices
  • Use existing in-wall Cat5/Cat6 wiring to extend USB 1.1 device connections between rooms
  • Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/Cat6 cable
  • Industrial control environments where the host computer must be located away from interference or contamination
