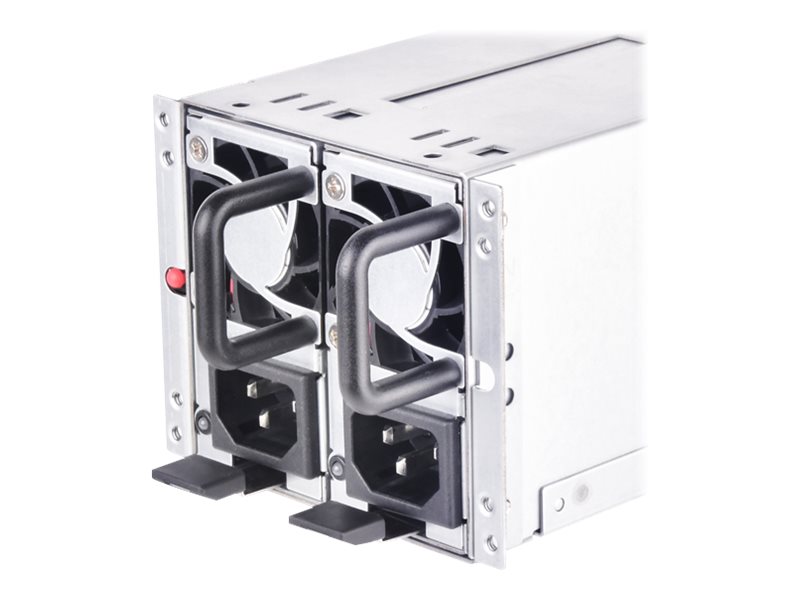

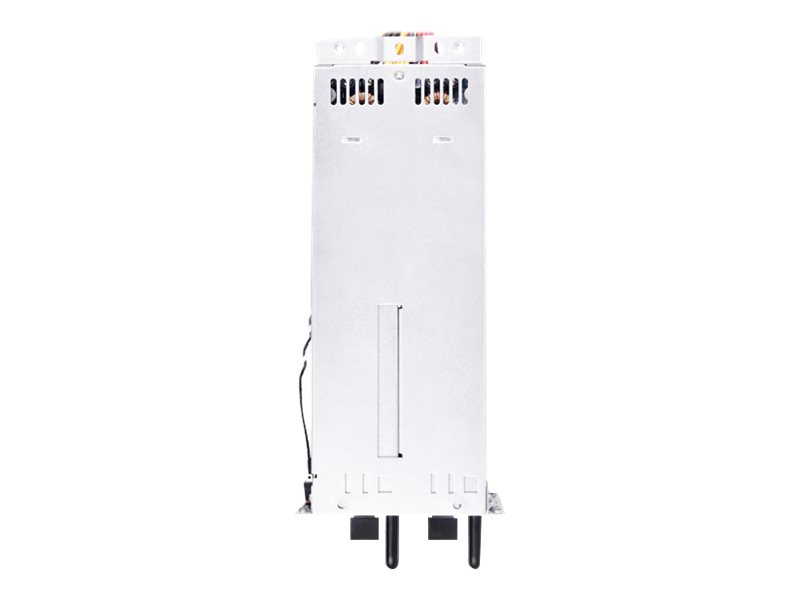

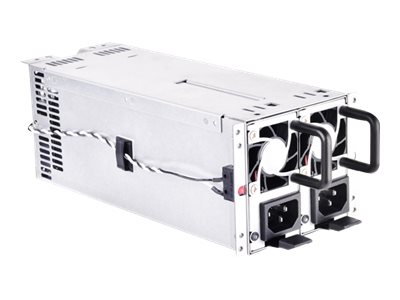

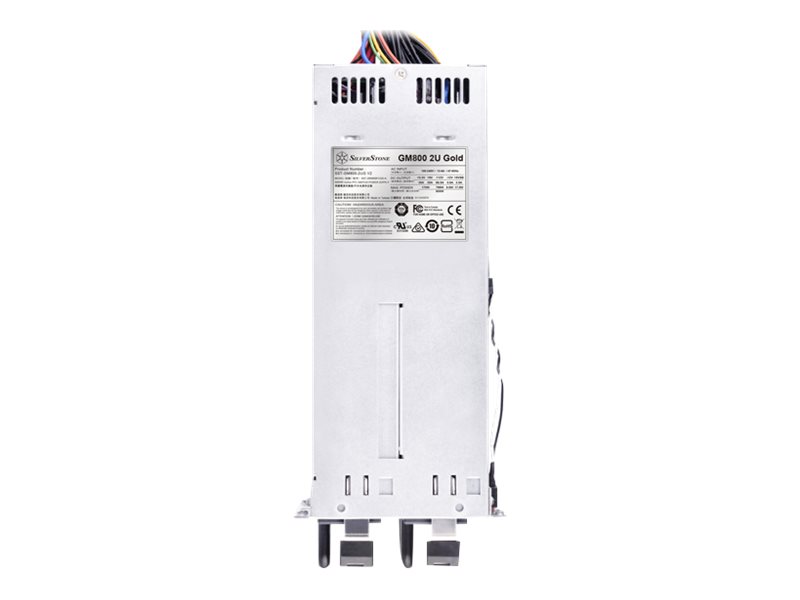

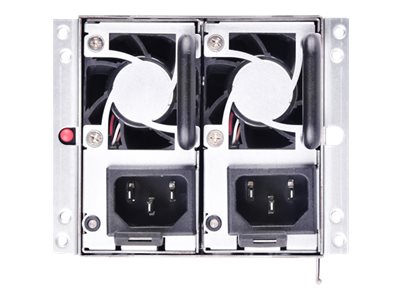

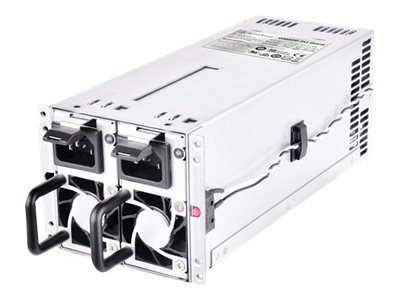

SilverStone GM800 2U Gold 800Watt
SilverStone GM800 2U Gold - Strømforsyning - hot swap (rackversion) - EPS2U - AC 120/230 V - 800 Watt - aktiv PFC - 2U - sølv
6 569,00DKK5 255,20DKK excl. VAT
-
Product no 999899422
Model SST-GM800-2UG-V2
Brand SilverStone Technolo
EAN 4710679813790
Weight 3.16 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | SilverStone GM800 2U Gold - strømforsyning - hot swap - 800 Watt |
| Enhedstype | Strømforsyning - hot swap - aktiv Power Factor Correction (PFC) - rackversion |
| Rackstørrelse | 2U |
| Specifikationsoverensstemmelse | EPS2U |
| Vægt | 3.16 kg |
| Indgangspænding | AC 120/230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 800 Watt |
| Overskudsspænding | Ja |
| Output Current | +3.3V - 25 A / 1 A<br>+5V - 25 A / 1 A<br>+12V - 66.5 A / 1 A<br>+5VSB - 3.5 A / 0.1 A<br>-12V - 0.8 A / 0 A |

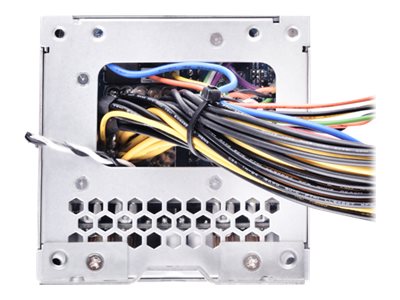

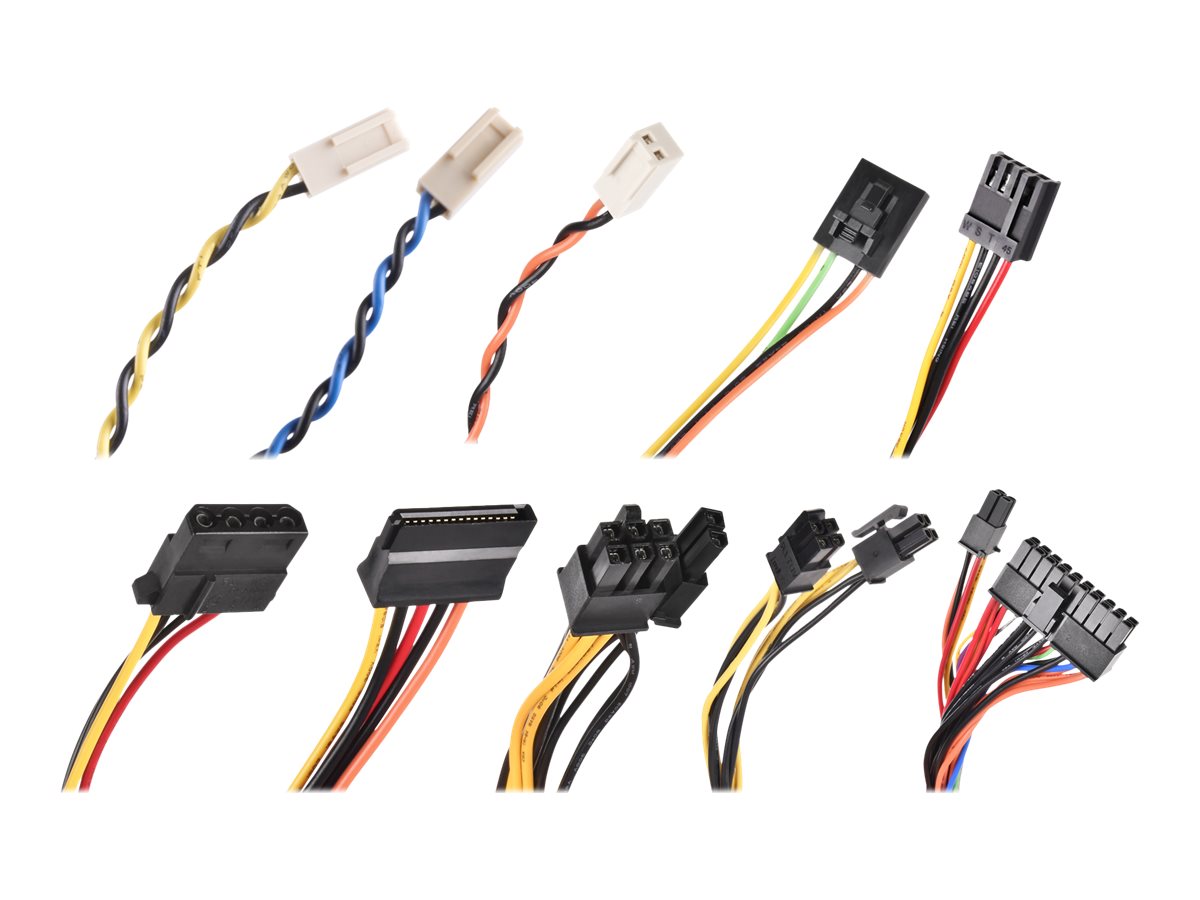

| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>6 x 15 pin Serial ATA strøm<br>9 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>3 x 2-pin intern strøm<br>1 x PMBus |
| Kølesystem | 40mm blæser |
| Farve | Sølv |
| Dimensioner (B x D x H) | 8.4 cm x 21.7 cm x 8.2 cm |
| General | |
|---|---|
| Color | Silver |
| Device Type | Power supply - hot swap - active Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| PSU Form Factor | Industrial 2U |
| Specification Compliance | EPS2U |
| Power Device | |
| Efficiency | 87%-89% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 120/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Output Current | +3.3V - 25 A / 1 A | +5V - 25 A / 1 A | +12V - 66.5 A / 1 A | +5VSB - 3.5 A / 0.1 A | -12V - 0.8 A / 0 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 800 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 2 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 9 x 4 pin internal power | 1 x 4 pin mini-pow |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Miscellaneous | |
| Cooling System | 40 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, short-circuit protection, single 12V rail, PMBus compliant, pull plug handle, LED indicator, Cybenetics Gold |
| MTBF | 100,000 hours |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 62.5 dBA |
| Dimensions & Weight | |
| Depth | 21.7 cm |
| Height | 8.2 cm |
| Weight | 3.16 kg |
| Width | 8.4 cm |
