Product no 990590138
Model 10133001
Brand BlueWalker
EAN 4260074978162
Weight 3.5 kg

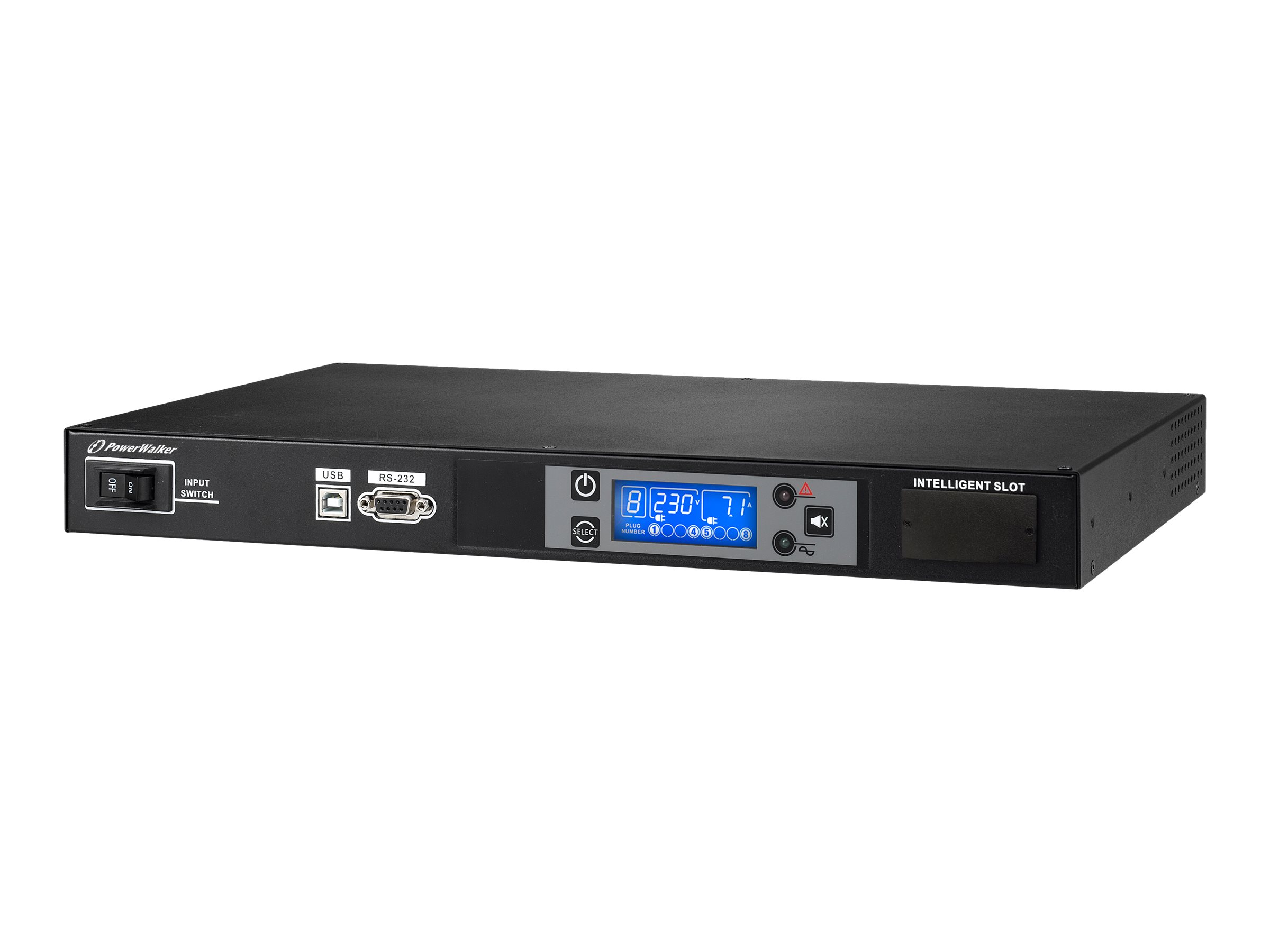

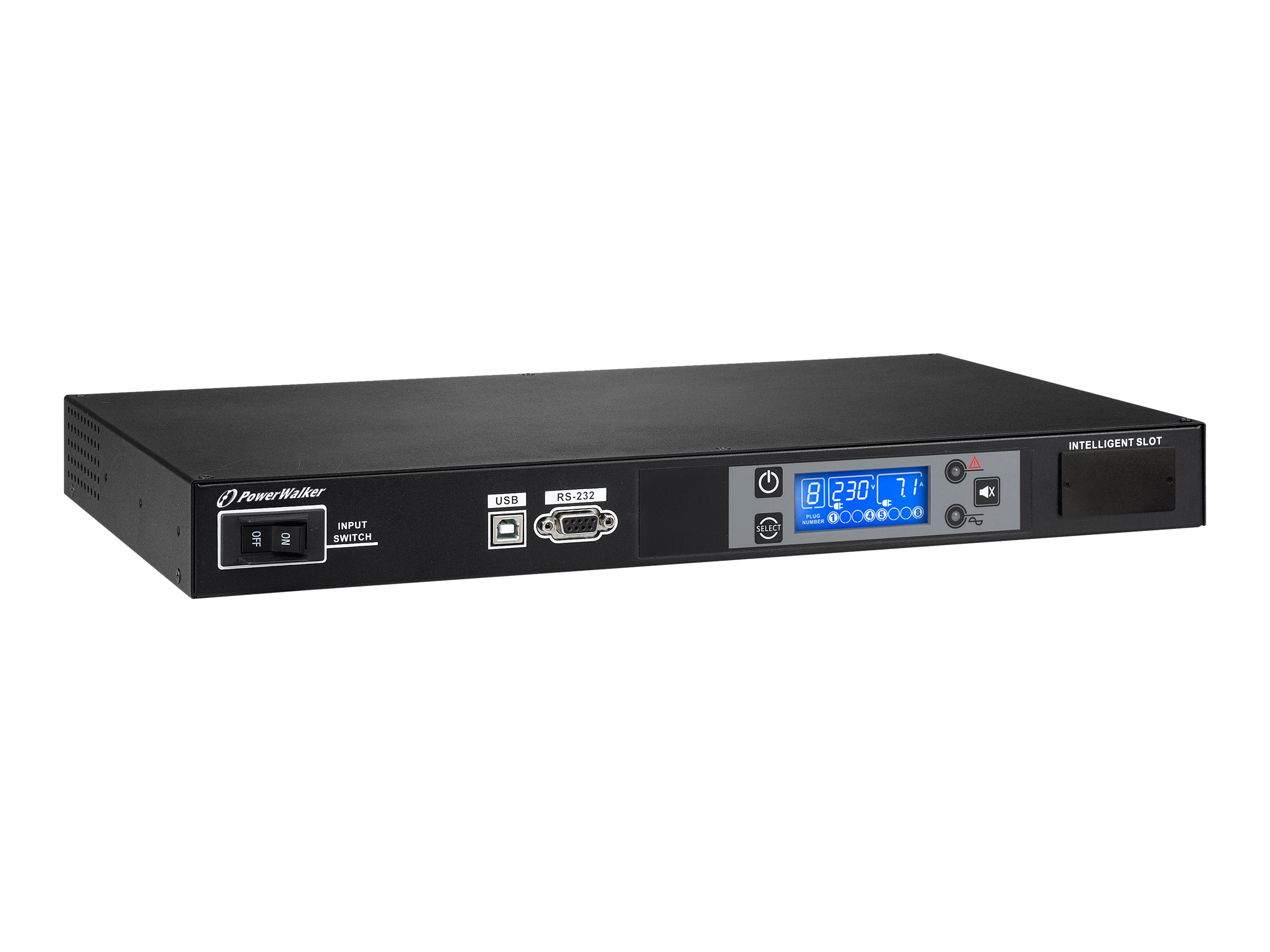

Produktbeskrivelse | PowerWalker PDU RC-16A - strømfordelingsenhed - 3680 VA |
Enhedstype | Strømfordelingsenhed - rackversion |
Rackstørrelse | 1U |
Vægt | 3.5 kg |
Lokalisering | Engelsk |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 220/230/240 V |
Strømkapacitet | 3680 VA |
Input-stik | 1 x strøm IEC 60320 C20 16A |

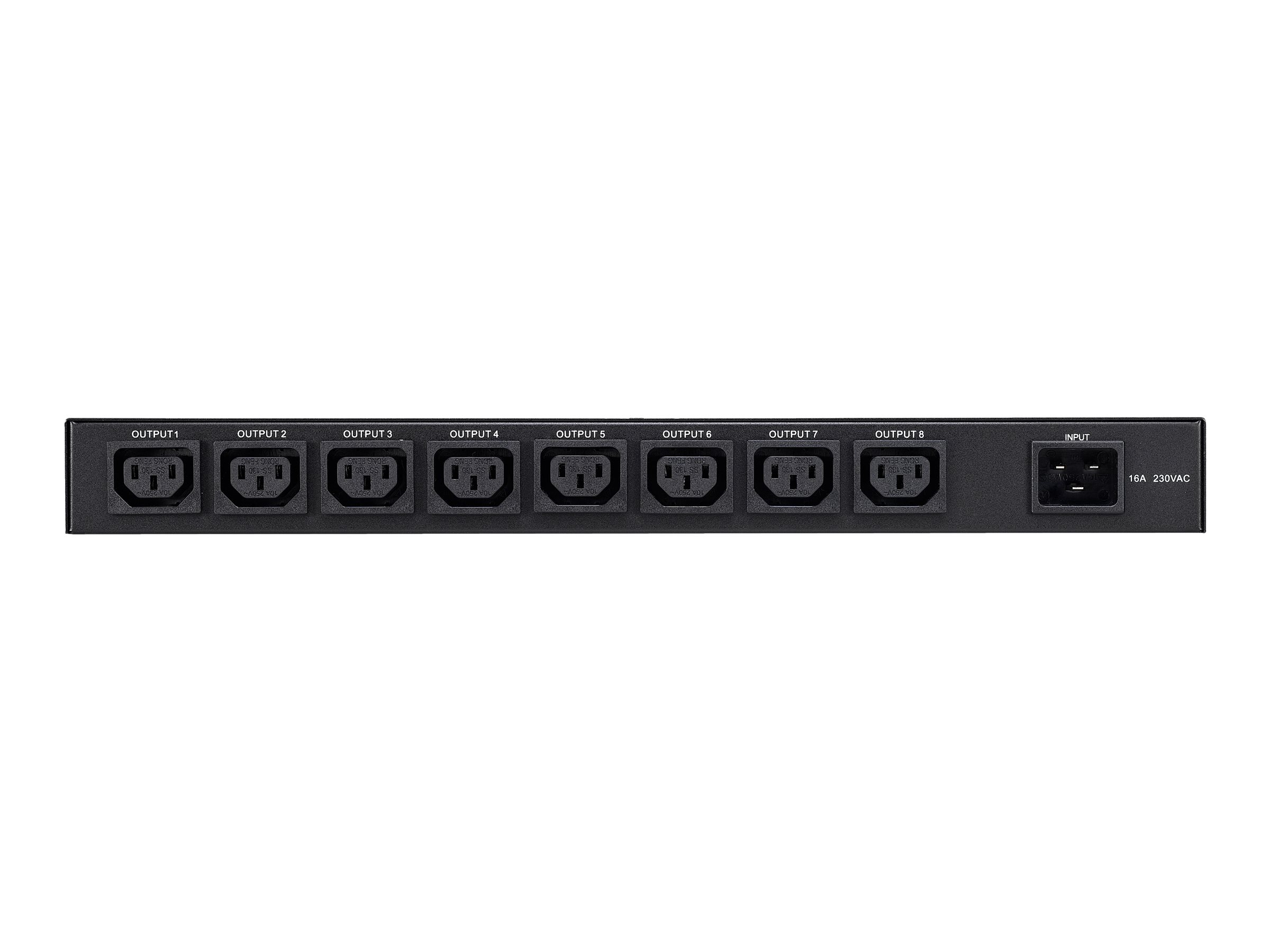

Output-stikforbindelser | 8 x power IEC 60320 C13 |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 43 cm x 25 cm x 4.4 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Color | Black |
Device Type | Power distribution unit - rack-mountable |
Height (Rack Units) | 1U |
Localization | English |
Power Device | |
Circuit Protection | Circuit breaker |
Frequency Provided | 50/60 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C20 16A |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 184 - 300 V |
Max Electric Current | 16 A |
Output Voltage | AC 220/230/240 V 50/60 Hz |
Power Capacity | 3680 VA |
Power Output Connectors Details | 8 x power IEC 60320 C13 |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 Intelligent Slot |
Miscellaneous | |
Cables Included | Power cable - external | USB cable - external |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, EN 60950-1 |
Features | LCD display, current meter, overcurrent protection, overload protection, vertical orientation, horizontal orientation, programmable turn-on/-off |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 90% (non-condensing) |
Max Operating Temperature | 50 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 25 cm |
Height | 4.4 cm |
Weight | 3.5 kg |
Width | 43 cm |
