Product no 96287
Model E10G42BTDA
Brand
Go to brand's website
EAN 5032037041461
Weight 0.21 kg

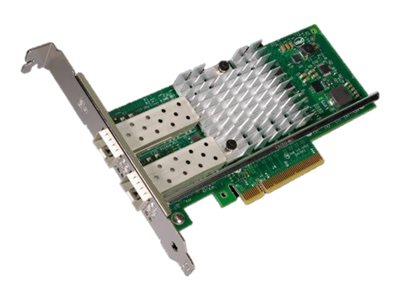

Produktbeskrivelse | Intel Ethernet Converged Network Adapter X520-DA2 - netværksadapter - PCIe 2.0 x8 - 10Gb Ethernet / FCoE SFP+ x 2 |
Enhedstype | Netværksadapter |
Model | Indstikskort - lavprofil |
Grænseflade (bus) type | PCI Express 2.0 x8 |
Porte | 10Gb Ethernet / FCoE SFP+ x 2 |
Dimensioner (B x D x H) | 14.5 cm |
Dataforbindelsesprotokol | 10GbE, FCoE |
Dataoverførselshastighed | 10 Gbps |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, IPSec, iSCSI |
Processor | Intel 82599ES |
Overensstemmelsesstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as |
Systemkrav | Microsoft Windows 7, Linux 2.6.x, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2003 SP2, Red Hat Enterprise Linux 6, VMware ESXi, Windows 8, Microsoft Windows Server 2012, VMware ESX, Linux 3.x, FreeBSD 9, Microsoft Windows Server 2012 R2 |
Producentgaranti | Begrænset livtidsgaranti |
General | |
---|---|
Device Type | Network adapter |
Form Factor | Plug-in card - low profile |
Interface (Bus) Type | PCI Express 2.0 x8 |
Networking | |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as |
Connectivity Technology | Wired |
Data Link Protocol | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
Data Transfer Rate | 10 Gbps |
Features | Flow control, VLAN support, packet filtering, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV) |
Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, iSCSI |
Ports | 10Gb Ethernet / FCoE SFP+ x 2 |
Remote Management Protocol | SNMP, RMON |
Status Indicators | Port transmission speed, link/activity |
Processor / Memory | |
Processor | Intel 82599ES |
Expansion / Connectivity | |
Compatible Slots | 1 x PCI Express 2.0 x8 - full-length, low-profile |
Interfaces | 2 x 10Gb Ethernet / FCoE - SFP+ |
Miscellaneous | |
Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS |
Software / System Requirements | |
OS Required | Microsoft Windows 7, Linux 2.6.x, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server |
Dimensions & Weight | |
Depth | 14.5 cm |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime | Limited warranty - money back guarantee - 90 days |
Environmental Parameters | |
Max Operating Temperature | 55 °C |
Min Operating Temperature | 0 °C |
