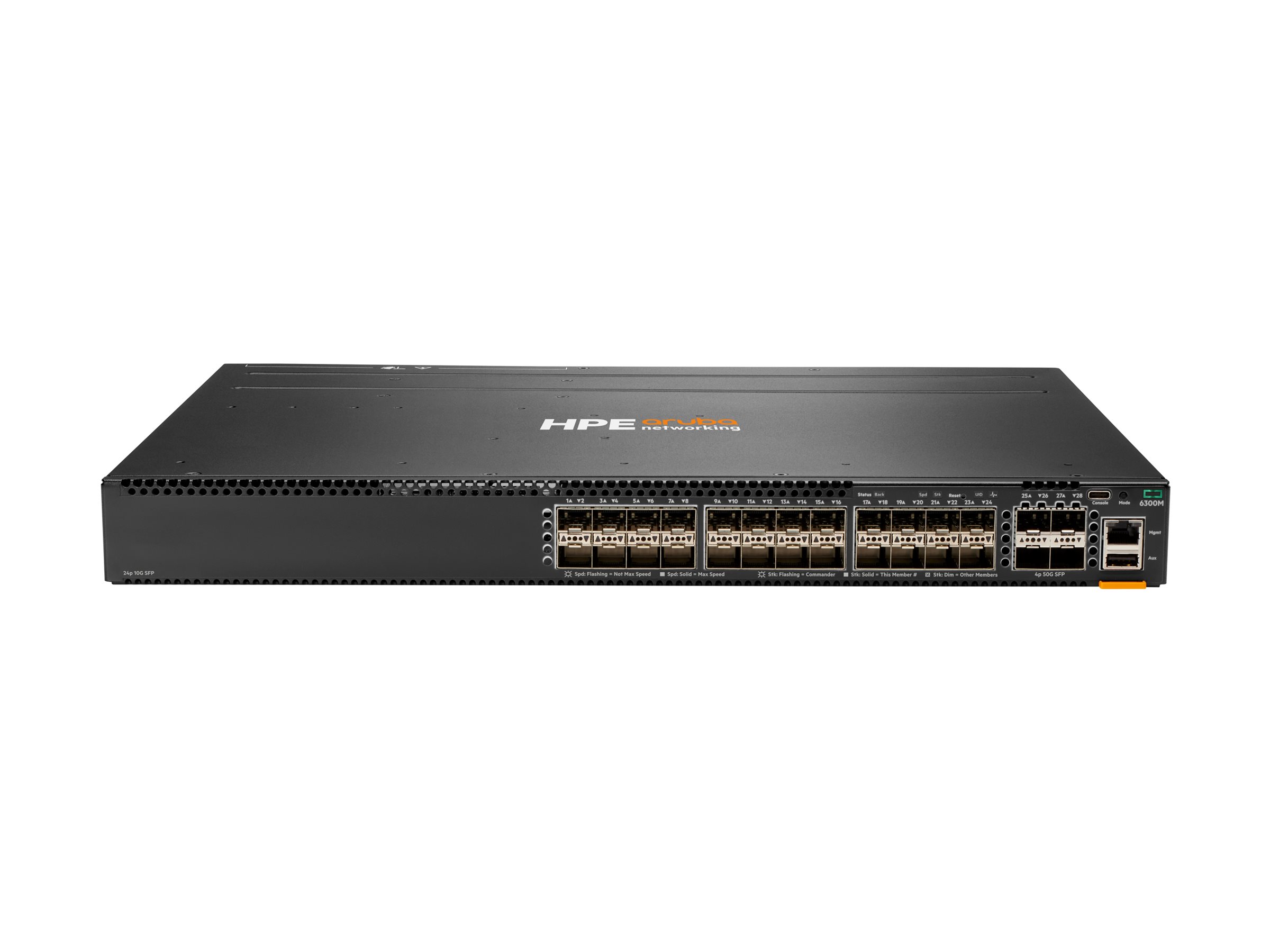

HPE Aruba 6300M Switch 24-porte 10 Gigabit
HPE Aruba 6300M - Switch - L3 - Administreret - 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) - front og side til ryg - monterbar på stativ
76 773,00DKK61 418,40DKK excl. VAT
-
Product no 995538352
Model JL658A
Brand Hewlett Packard Ente
EAN 0190017339382
Weight 7.44 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Aruba 6300M - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret - kan stables |
| Pakningstype | Front og side til ryg monterbar på stativ 1U |
| Undertype | 10 Gigabit Ethernet |
| Porte | 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 1 Gigabit/10 Gigabit/25 Gigabit/50 Gigabit SFP56 (uplink/stacking) |
| Præstation | Omkoblingskapacitet: 880 Gbps<br>Kapacitet: 654 Mpps<br>Latens (1 Gbps): 1.99 µs<br>Latens (10 Gbps): 1.49 µs<br>Latens (25 Gbps): 2.85 µs<br>Latens (50 Gbps): 2.82 µs<br>Stablende båndbredde: 200 Gbps |
| Kapacitet | Switched virtual interfaces (SVIs): 1000<br>IPv4 værtstabelkapacitet: 32000<br>IPv6 værtstabelkapacitet: 32000<br>IPv4 ruter (Unicast): 64000<br>IPv6 ruter (Unicast): 32000<br>IPv4 ruter (Multicast): 8000<br>IPv6 ruter (Multicast): 8000<br>IGMP-grupper: 8000<br>MLD-grupper: 4000<br>IPv4 ACL-indgange (ingress): 5000<br>IPv6 ACL-poster (indgang): 1250<br>MAC ACL-indgange (ingress): 5000<br>IPv4 ACL-indgange (egress): 2000<br>IPv6 ACL-poster (udgang): 500<br>MAC ACL-indgange (egress): 2000 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, statisk IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Protokol til fjernadministration | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Egenskaber | DHCP-understøttelse, understøttet af ARP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, Høj rådighedsgrad, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MDL snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP beskyttelse, dobbelt firmware-billeder, MVRP, pakkestormbeskyttelse, CoS, SP, transmissions-stormbeskyttelse, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA-værn, ZTP, PIM, VLAN Tagging, RSTP, IPv4 og IPv6 dobbelt stak, IP multicast, Aruba VSF, dynamisk IPv6 lockdown, ND-snagen, Unicast Storm-beskyttelse, Microsoft NLB |
| Overensstemmelsesstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Dimensioner (B x D x H) | 44.2 cm x 38.5 cm x 4.4 cm |
| Vægt | 5.8 kg |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Switched virtual interfaces (SVIs): 1000 | IPv4 host table capacity: 32000 | IPv6 host table capacity: 32000 | IPv4 routes (Unicast): 64000 | IPv6 routes (Unicast): 32000 | IPv4 routes (Multicast): 8000 | IPv6 routes (Multicast): 8000 | IGMP groups: |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Serv |
| Flash Memory | 32 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance | Switching capacity: 880 Gbps | Throughput: 654 Mpps | Latency (1 Gbps): 1.99 µs | Latency (10 Gbps): 1.49 µs | Latency (25 Gbps): 2.85 µs | Latency (50 Gbps): 2.82 µs | Stacking bandwidth: 200 Gbps |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Processor | 1 x ARM Cortex-A72: 1.78 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Subtype | 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 24 x Gigabit / 10Gbit LAN SFP+ | 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 | 1 x USB-C console | 1 x management | 1 x USB Type A |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CA |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.8 kg |
| Width | 44.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networwing Analytics Engine, the CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of HPE Aruba Networking NetEdit and HPE CX Mobile App verify that configurations are flawless and easy to deploy. A powerful HPE Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. HPE Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.
Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. Now supporting MACsec 256, PTP, AVB and LRM.
High performance 880 to 1760 Gbps system switching capacity, 660 to 1310 MPPS of system throughput and up to 200 to 400 Gbps stacking bandwidth.
Series includes full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit and up to 90W PoE, SFP+ model and switch bundle with power-to-port airflow for data center 1GbE ToR and OOBM deployments.
Built-in high speed 10/25/40/50/100GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via the Network Analytics Engine.
Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN Dynamic Segmentation enables enhanced security and simple access for users and IoT.
Three stackable, high-performance CX 6300L Layer 2-only; access switches with HPE Smart Rate Multi-Gigabit and MACsec encryption.
Automation and Analytics
- The HPE Aruba Networking CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The HPE Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
- HPE Aruba Networking NetEdit support provides automation that allows for rapid network-wide changes, and helps ensure policy conformance post network updates.
Performance and Power
- The HPE Aruba Networking CX 6300 Switch Series uses a fully distributed architecture with HPE Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1/10/25/50GbE (50GbE for DAC connectivity only) for a total of up to 200 Gbps of stacking throughput per switch.
- The S0E91A switch model also supports QSFP28 uplink speeds of 40 GbE and 100 GbE for up to 400 Gbps of stacking throughput.
- Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 90W PoE on every port for a total of 2880W of PoE.
- HPE Aruba Networking CX 6300L stackable, high-performance Layer 2-only switches available for customers needing scalability, high-capacity, and cost-effective connectivity in the access layer
Smarter Segmentation
- The HPE Aruba Networking CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
The HPE Aruba Networking Data Center Networking Solution
- HPE Aruba Networking offer customers highly differentiated pre-engineered IT infrastructure solutions that span a wide variety HPE Compute, HPE Storage, HPE Networking that span virtualization, vSAN, HCI, HPC, MCS, Microsoft, SAP HANA, Vmware, Nutanix application and IaaS service offerings.
- HPE Aruba Networking 10/25 and 40/100G CX switches can be deployed as part of these solutions and is often designed into these integrated solutions along with HPE ProLiant DL/DX servers, HPE SimpliVity, Nimble, Synergy, Cray Shasta, Cray ClusterStor, Superdome Flex and HPE GreenLake.
- These ready-to-deploy, integrated IT data center solutions help simplify and speed IT service delivery while reducing the time, risk, and expertise needed to deploy complex solutions.
- Use these new tracking SKUs (R9FXXX) when HPE Aruba Networking CX switches are included in HPE integrated and mixed compute, storage and networking configuration and deployments.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | (24 1G/10G SFP+ ports, (4) 1/10/25/50G SFP ports |
| Memory and processor | Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 8 MB Shared Packet Buffer Memory |
| Latency | 1Gbps: 1.99μSec, 10Gbps: 1.49μSec, 25Gbps: 2.85μSec 50Gbps: 2.82μSec |
| Throughput | 654 Mpps |
| Switching capacity | 880 Gbps |
| Stacking capabilities | Up to 10 switches per stack |
| Management features | HPE Aruba Networking AirWave HPE Aruba Networking Central Network Management HPE Aruba Networking NetEdit Command-line interface SNMP v2c/v3 RMON |
| Input voltage | 100-240 VAC |
| Power consumption | 85 W (maximum) |
| Product dimensions (metric) | 4.4 x 44.2 x 38.5 cm |
| Weight | 5.11 kg |
