Product no 999218684
Model DS-2CD2183G2-IS(2.8m
Brand Hikvision Digital Te
EAN 6941264095224
Weight 0.52 kg

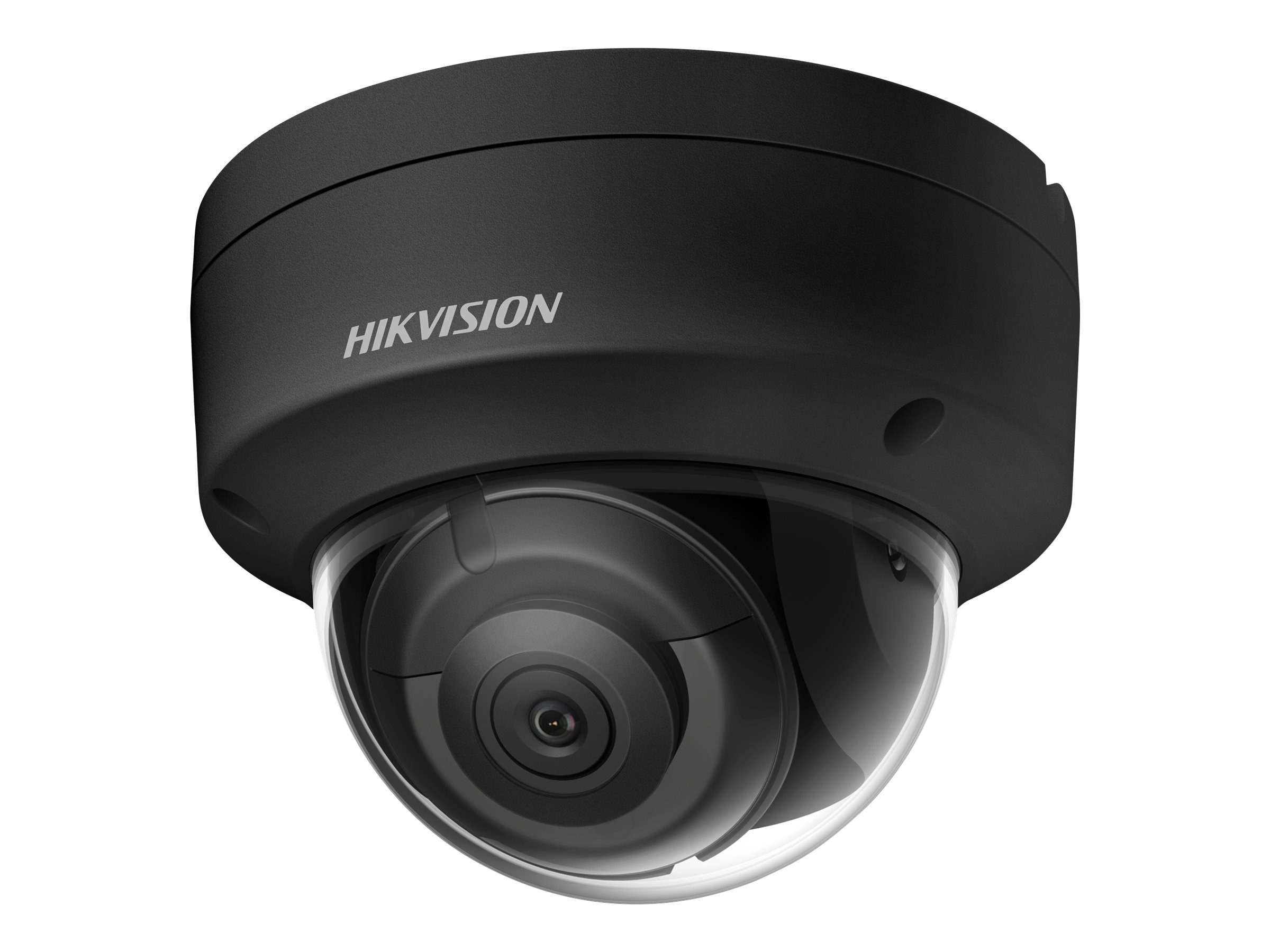

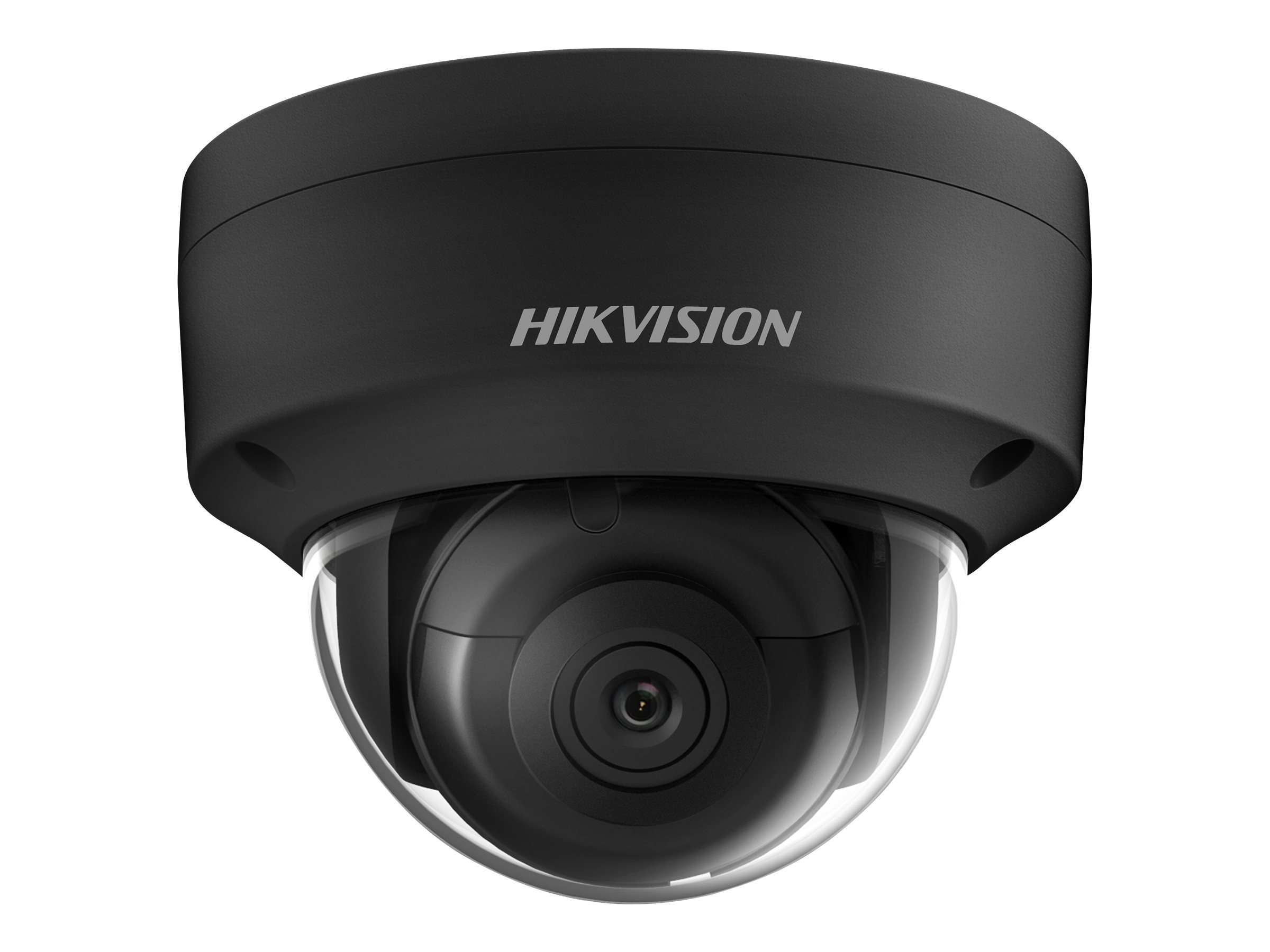

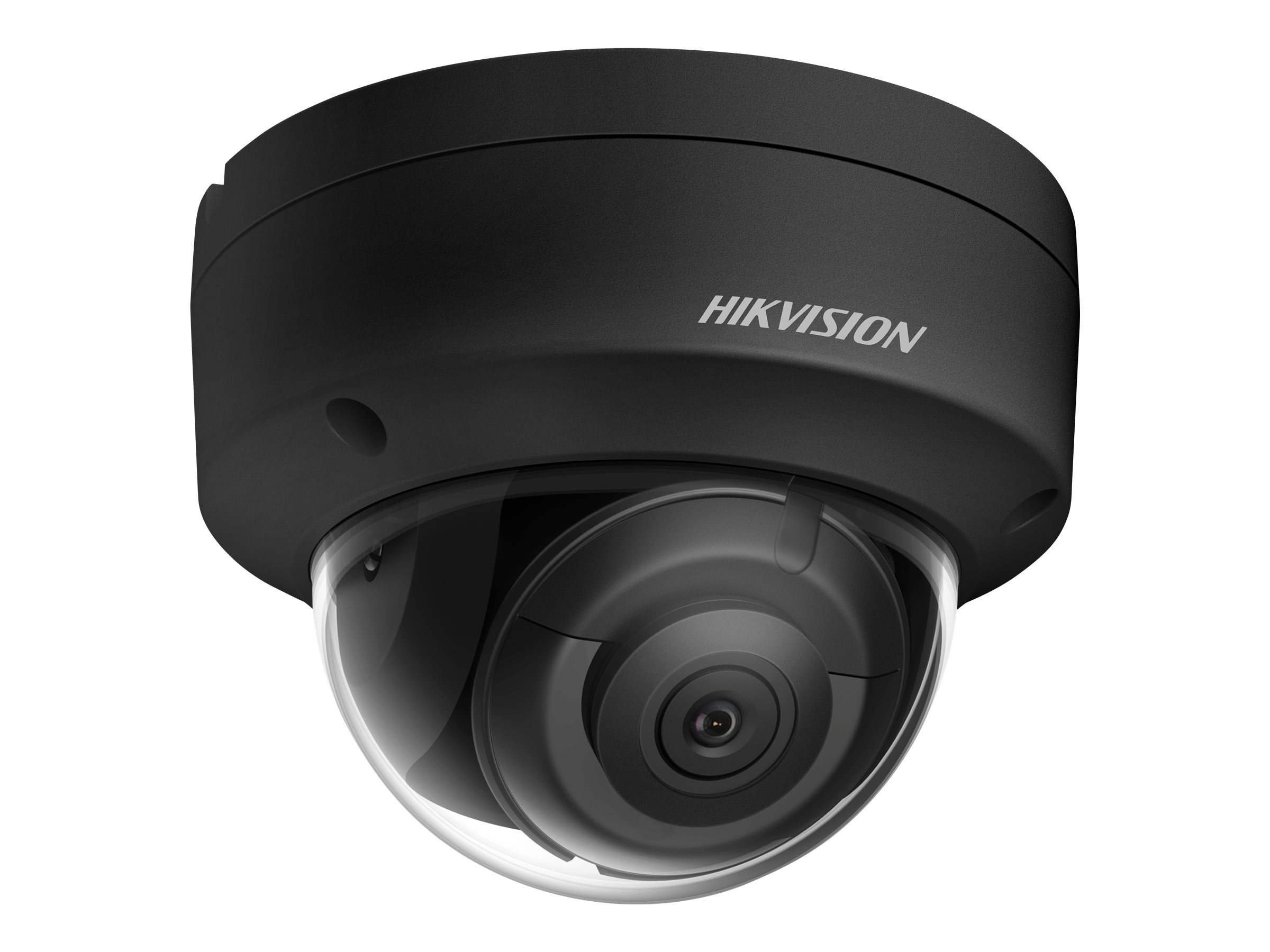

Produktbeskrivelse | Hikvision Pro Series with AcuSense DS-2CD2183G2-IS - netværksovervågningskamera - kuppel |
Enhedstype | Netværksovervågningskamera - fast - kuppel - støvsikker / vandtæt / beskyttet mod vandaler |
Audio | Ja |
Dimensioner (B x D x H) | 11.08 cm x 11.08 cm x 8.47 cm |
Vægt | 520 g |
Farve | Sort |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Maksimum opløsning | 3840 x 2160 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 4K |
Billedsensortype | PS CMOS - 1/2.8" - 8 MP |
Minimumbelysning | 0.005 lux - farve - F1.6 - AGC on<br>0 lux - IR - infrarøde LEDer på |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 2.8 mm |
Objektivmontering | M12 montering |
Objektiv Iris | F/1.6 |
Poanoreringsvinkel (grad) | 0 til 355 |
Krængningsvinkel (grad) | 0 til 75 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE klasse 3 |
Egenskaber | Backlight Compensation (BLC), skarphedskontrol, rotering af digitalbillede, progressiv scanning, mætningskontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, Wide Dynamic Range (WDR), ansigtsregistrering, Bevægelses Detektions Teknologi, infrarød skære filter, Privacy Mask Function, pille-detektion, tredobbelt akse-rotationsmekanisme, nulstillingsknap, kodeordsbeskyttelse, tredobbelt video-stream, Region of Interest (ROI), indtrængningsdetektion, 3D Digital Noise Reduction Technology, ONVIF (Profil S) support, ONVIF (Profile G) support, Line Crossing Detection, vandmærke, hjerteslag, anti-flimren, Internet Server Application Programming Interface (ISAPI) |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -30 °C - 60 °C; 0 - 95% (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
Audio Support | Yes |
Connectivity Technology | Wired |
Depth | 11.08 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 8.47 cm |
Weight | 520 g |
Width | 11.08 cm |
Camera | |
Digital Video Capture Resolution | 1280 x 720, 352 x 240, 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 640 x 360, 2560 x 1440, 3072 x 1728, 3840 x 2160 |
Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Backlight Compensation (BLC), sharpness control, digital image rotation, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, infrared cut |
Frame Rate (max) | 30 frames per second |
Infrared Distance | 30 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 3840 x 2160 |
Minimum Illumination | 0.005 lux - color - F1.6 - AGC on | 0 lux - IR - infrared LEDs on |
Motion Detection | Yes |
Type | Color - Day&Night - fixed - dustproof / waterproof / vandal-proof |
Video Modes | 4K |
Image Sensor | |
Type | 8 MP PS CMOS 1/2.8" |
Lens Construction | |
Diagonal Field of View (degree) | 128 |
Focal Length | 2.8 mm |
Horizontal Field of View (degree) | 107 |
Lens Iris | F/1.6 |
Type | M12 mount - fixed focal |
Vertical Field of View (degree) | 57 |
Panning | |
Range (degree) | 0 to 355 |
Tilting | |
Range (degree) | 0 to 75 |
Interfaces | |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, NFS |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line in | Audio line out |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | Black |
Compliant Standards | UL 60950-1, FCC CFR47 Part 15 B, IP67, IK10, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 55032:2015, ICES-003 issue 6, AS/NZS 60950-1:2015, IEEE 802.3af, IEEE 802.1x, CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, EN 60950-1:2005+Am1:2009 |
Power | |
Power Device | 7.5 Watt |
Power Requirements | DC 12 V / PoE Class 3 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Dimensions & Weight (Shipping) | |
Shipping Depth | 13.4 cm |
Shipping Height | 10.8 cm |
Shipping Weight | 720 g |
Shipping Width | 13.4 cm |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 0 - 95% (non-condensing) |
