Product no 999680699
Model DS-2CD2E43G2-U(2.8mm
Brand Hikvision Digital Te
EAN 6931847135119
Weight 0.155 kg

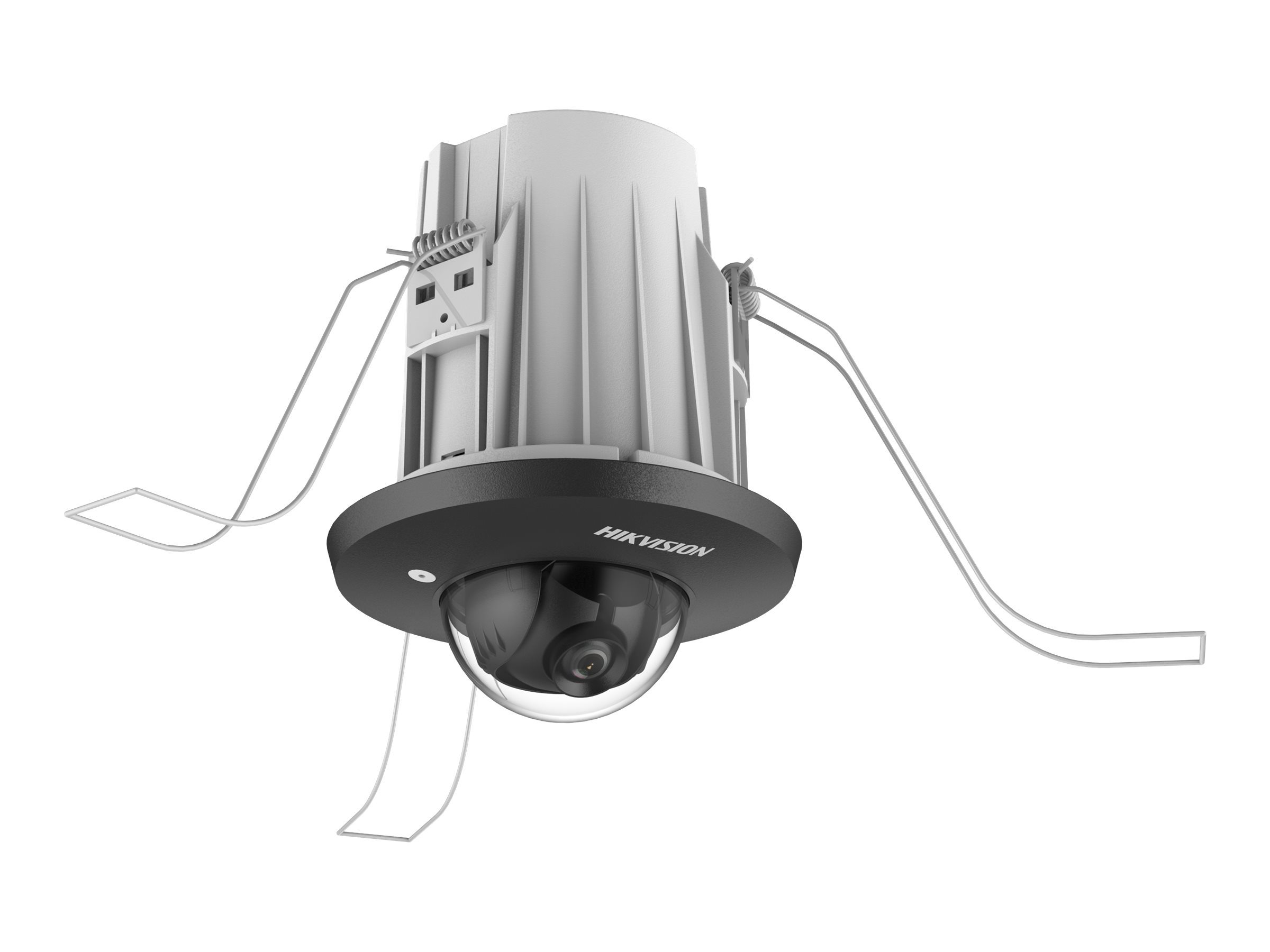

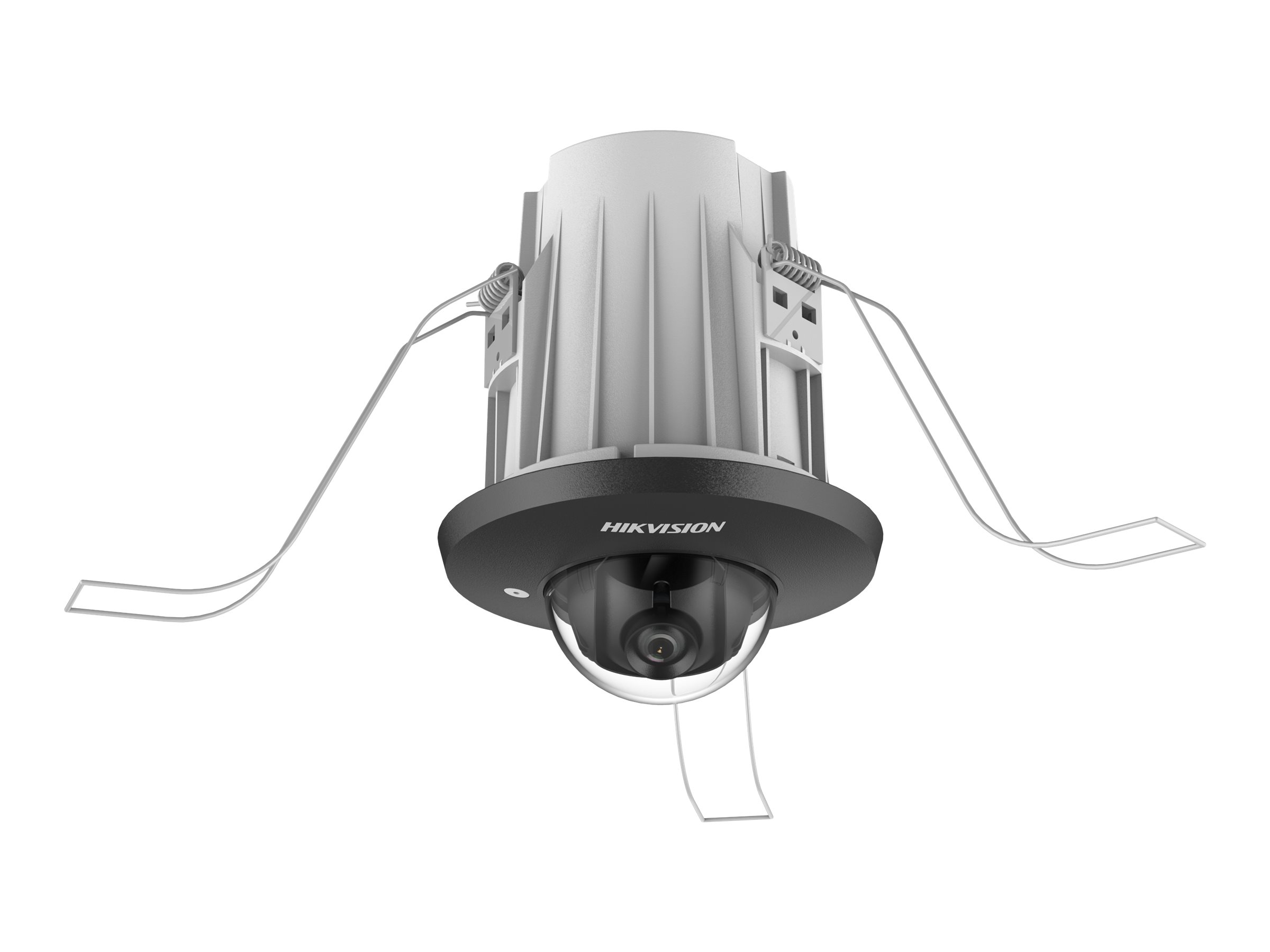

Produktbeskrivelse | Hikvision Pro Series EasyIP 2.0 Plus with AcuSense DS-2CD2E43G2-U - netværksovervågningskamera - kuppel |
Enhedstype | Netværksovervågningskamera - fast - kuppel |
Audio | Ja: indbygget mikrofon |
Kamera monteringstype | Montering i loftet |
Dimensioner (B x D x H) | 9.39 cm x 9.39 cm x 11.75 cm |
Vægt | 155 g |
Connectivity teknologi | Med ledning |
Kamera | Farve |
Maksimum opløsning | 2688 x 1520 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | CMOS - 1/3" - 4 MP |
Minimumbelysning | 0.005 lux - farve - F1.6 - AGC on |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 2.8 mm |
Objektivmontering | M12 montering |
Objektiv Iris | F/1.6 |
Krængningsvinkel (grad) | 0 til 75 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE klasse 3 |
Egenskaber | Backlight Compensation (BLC), skarphedskontrol, rotering af digitalbillede, hvidbalance, progressiv scanning, mætningskontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, Wide Dynamic Range (WDR), ansigtsregistrering, Privacy Mask Function, justerbar forøgelseskontrol, Highlight Compensation (HLC), NAS-Ready, pille-detektion, meddelelsesbillede til e-mail, notifikationsbillede til FTP, nulstillingsknap, kodeordsbeskyttelse, tredobbelt video-stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), indtrængningsdetektion, ONVIF (Profil S) support, ONVIF (Profile G) support, plastikkabinet, Pixel Counter Support, Line Crossing Detection, hjerteslag, anti-flimren, Internet Server Application Programming Interface (ISAPI), DORI-dækning, IP-adressefiltrering, 3D digital støjreduktion (DNR), miljøstøjfiltrering, op til 6 kanalers samtidig live visning, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), AcuSense-teknologi |
Producentgaranti | 5 års garanti |
Miljømæssige parametre (operativ) | -10 °C - 50 °C; op til 95 % (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
Audio Support | Yes: built-in microphone |
Camera Mount Type | In-ceiling mount |
Connectivity Technology | Wired |
Depth | 9.39 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 11.75 cm |
Weight | 155 g |
Width | 9.39 cm |
Camera | |
Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, adj |
Max Digital Video Resolution | 2688 x 1520 |
Minimum Illumination | 0.005 lux - color - F1.6 - AGC on |
Motion Detection | Yes |
Type | Color - fixed |
Video Capture | 1920 x 1080, 50 Hz @ 25 fps | 1280 x 720, 50 Hz @ 25 fps | 1920 x 1080, 60 Hz @ 30 fps | 1280 x 720, 60 Hz @ 30 fps | 2688 x 1520, 50 Hz @ 25 fps | 2688 x 1520, 60 Hz @ 30 fps |
Image Sensor | |
Type | 4 MP CMOS 1/3" |
Lens Construction | |
Diagonal Field of View (degree) | 122 |
Focal Length | 2.8 mm |
Horizontal Field of View (degree) | 103 |
Lens Iris | F/1.6 |
Type | M12 mount - fixed focal |
Vertical Field of View (degree) | 55 |
Tilting | |
Range (degree) | 0 to 75 |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Compliant Standards | UL, CB, EMC, FCC CFR47 Part 15 B, REACH, LVD, RCM, RoHS 2011/65/EU, Regulation EC 1907/2006, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 55032:2015, IEEE 802.3af, UL 62368-1, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2019, |
Power | |
Power Requirements | DC 12 V / PoE Class 3 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Dimensions & Weight (Shipping) | |
Shipping Depth | 13.5 cm |
Shipping Height | 18.3 cm |
Shipping Weight | 325 g |
Shipping Width | 13.5 cm |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -10 °C |
Relative Humidity (operating) | Up to 95% (non-condensing) |
