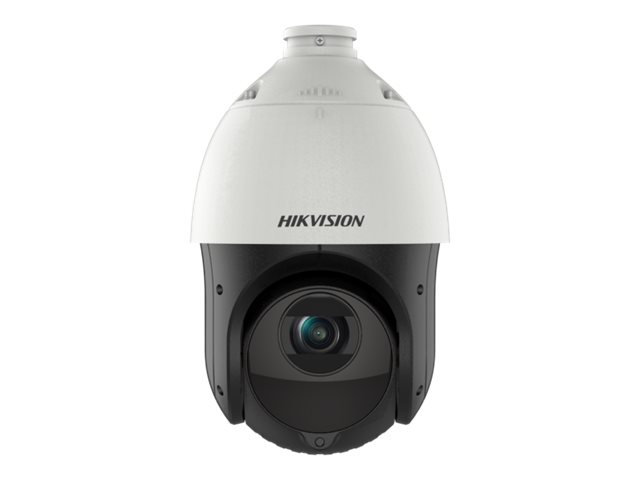

Hikvision Pro Series DS-2DE4425IW-DE(T5) Netværksovervågningskamera 2560 x 1440
Hikvision Pro Series DS-2DE4425IW-DE(T5) - Netværksovervågningskamera - PTZ - kanontårn - farve (Dag/nat) - 4 MP - 2560 x 1440 - motoriseret - audio - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+ - DC 12 V / PoE Plus
3 917,00DKK3 133,60DKK excl. VAT
-
Product no 999680687
Model DS-2DE4425IW-DE(T5)
Brand Hikvision Digital Te
EAN 6931847127138
Weight 4.22 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hikvision Pro Series DS-2DE4425IW-DE(T5) - netværksovervågningskamera - kanontårn |
| Enhedstype | Netværksovervågningskamera - pan / tilt / zoom - kanontårn |
| Audio | Ja |
| Dimensioner (B x D x H) | 16.45 cm x 16.45 cm x 29 cm |
| Vægt | 2 kg |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 25 x |
| Maksimum opløsning | 2560 x 1440 |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | PS CMOS - 1/2.8" - 4 MP |
| Minimumbelysning | 0.005 lux - farve - F1.6 - AGC on<br>0.001 lux - S/H - F1.6 - AGC on<br>0 lux - IR |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 4.8 mm - 120 mm |
| Fokusindstilling | Automatisk, manuel, semi-auto |
| Poanoreringsvinkel (grad) | 360 |
| Krængningsvinkel (grad) | -15 til +90 |
| Interface | Ethernet 10Base-T/100Base-TX |
| Spænding | DC 12 V / PoE Plus |
| Egenskaber | Backlight Compensation (BLC), skarphedskontrol, hvidbalance, progressiv scanning, mætningskontrol, lysstyrkekontrol, kontrastkontrol, e-mail advarsler, Wide Dynamic Range (WDR), varmeapparat, ansigtsregistrering, infrarød skære filter, Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, Elektronisk billedstabilisator (EIS), strømstødsbeskyttelse, pille-detektion, notifikationsbillede til FTP, nulstillingsknap, kodeordsbeskyttelse, lynresistent, Region of Interest (ROI), Defog, indtrængningsdetektion, 300 forudindstillede positioner, audioundtagelsesdetektion, ONVIF (Profil S) support, ONVIF (Profile G) support, objektaftagelsesdetektion, Line Crossing Detection, Voltage Transient Protection, vandmærke, Internet Server Application Programming Interface (ISAPI), detektion af bagage uden opsyn, IP-adressefiltrering, 3D digital støjreduktion (DNR), regionudgangsdetektion, regionindgangsdetektion, 8 patruljer, 4 mønsterscanninger, regional fokus, regional eksponering, 32 forindstillede positioner per patrulje, op til 20 kanalers samtidig live visning, miljøstøjfiltrering, Power-off Memory, 3 videostreams, ONVIF (Profile T) support, menneske- og køretøjsfiltrering, Auto-Flip, ansigtsanalyse, 3D Positioning, Preset Freezing, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), Face Capture, DarkFighter-teknologi, styrkekontrol |
| Miljømæssige parametre (operativ) | -30 °C - 65 °C; 0 - 90% (ikke-kondenserende) relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, G.711, G.722.1, MP2L2 |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 16.45 cm |
| Device Type | Network surveillance camera |
| Form Factor | Turret |
| Height | 29 cm |
| Weight | 2 kg |
| Width | 16.45 cm |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Digital Zoom | 16 |
| Exposure Range | 1 sec - 1/30000 sec |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, e-mail alerts, Wide Dynamic Range (WDR), heater, face detection, infrared cut filter, Privacy Mask Functio |
| Infrared Distance | 100 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination | 0.005 lux - color - F1.6 - AGC on | 0.001 lux - B&W - F1.6 - AGC on | 0 lux - IR |
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Capture | 2560 x 1440, 50 Hz @ 25 fps | 1920 x 1080, 50 Hz @ 25 fps | 1920 x 960, 50 Hz @ 25 fps | 1280 x 720, 50 Hz @ 25 fps | 2560 x 1440, 60 Hz @ 30 fps | 1920 x 1080, 60 Hz @ 30 fps | 1920 x 960, 60 Hz @ 30 fps | 1280 x 720, 60 Hz @ 30 fps |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/2.8" |
| Lens Construction | |
| Diagonal Field of View (degree) | 2.8 - 61.5 |
| Focal Length | 4.8 mm - 120 mm |
| Focus Adjustment | Automatic, manual, semi-auto |
| Horizontal Field of View (degree) | 2.4 - 55 |
| Optical Zoom | 25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.4 - 33 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 80 |
| Tilting | |
| Range (degree) | -15 to +90 |
| Speed (degree/sec) | Up to 80 |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, NFS, ISAPI, ISUP, SDK |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line in | Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IEC 60529 IP66, CB, EMC, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, LVD, KC, RCM, RoHS 2011/65/EU, EN 61000-3-3:2013, Regulation EC 1907/2006, TLS v1.2, WEEE 2012/19/EU, EN 61000-3-2:2014, EN 55032:2015, IEEE 802.3at, IEEE 802.1x, AS/NZS CISPR 32:20 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Environmental Parameters | |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
