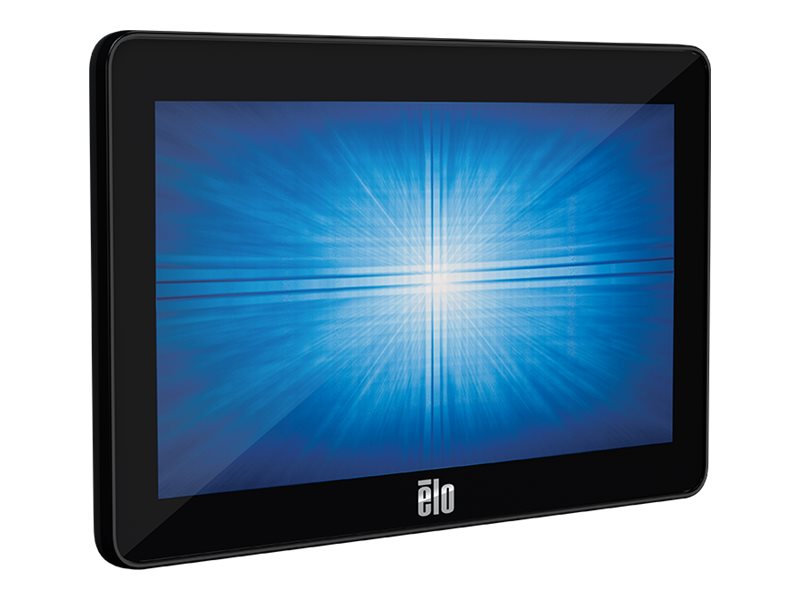

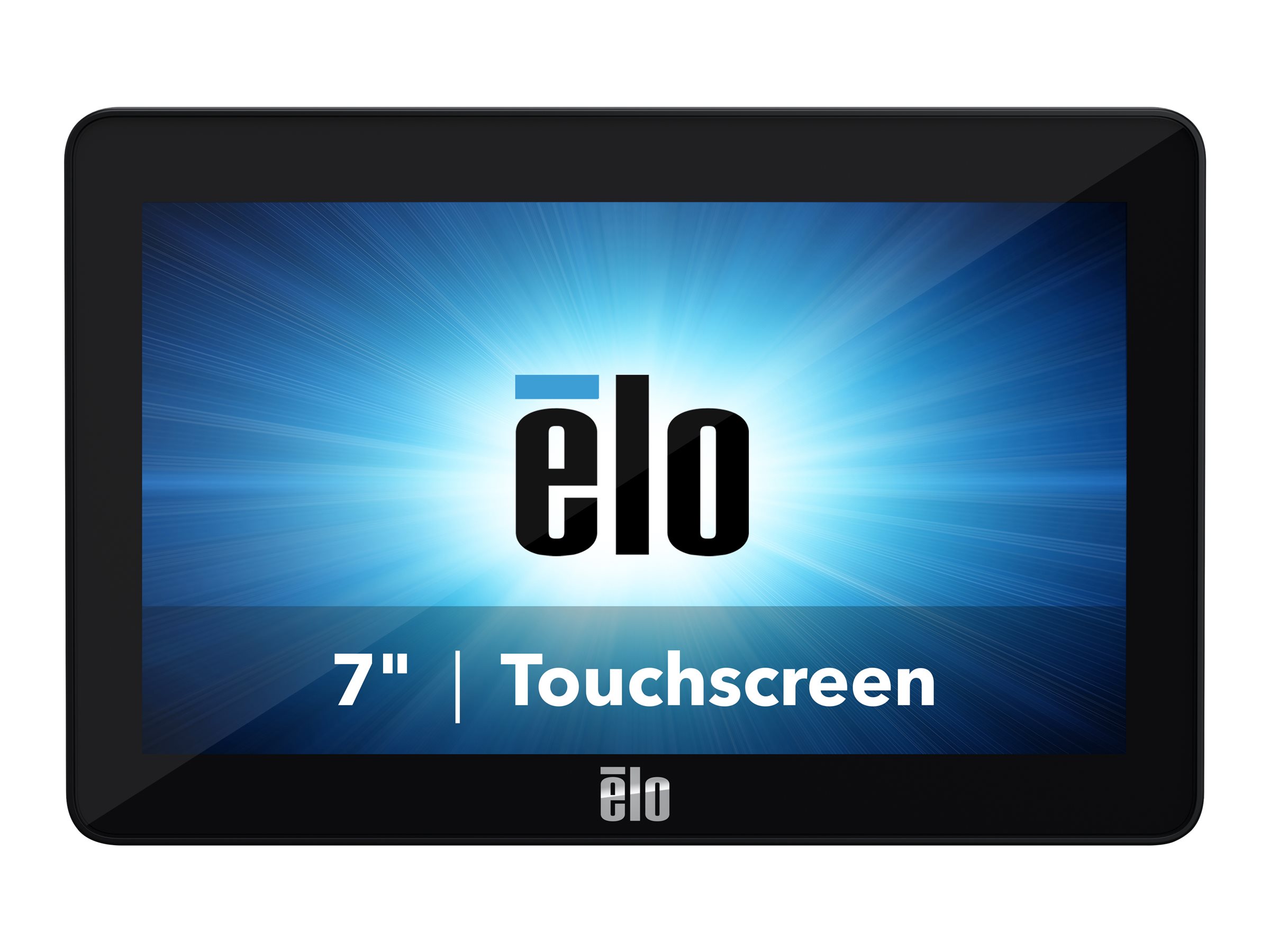

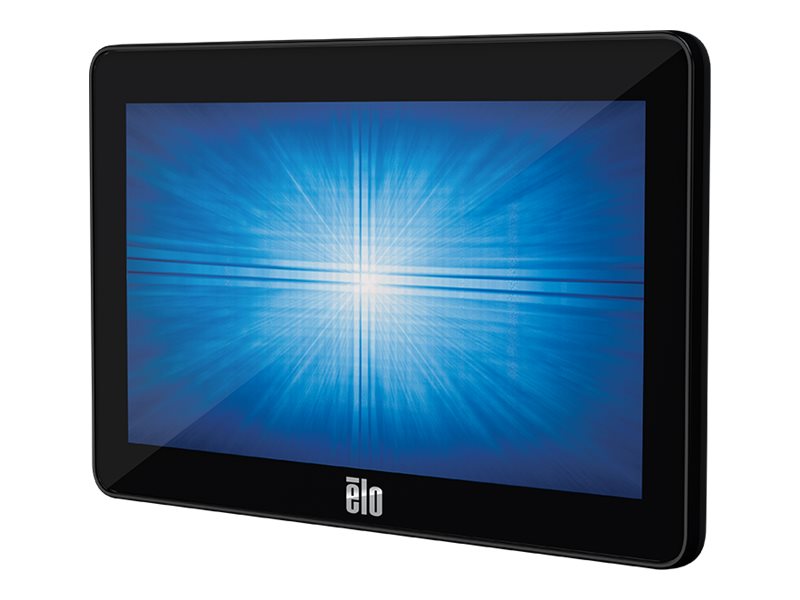

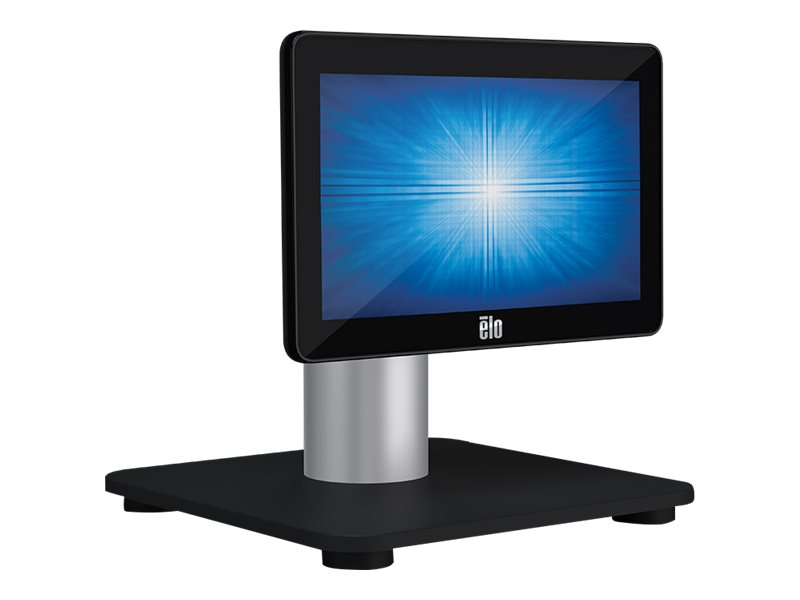

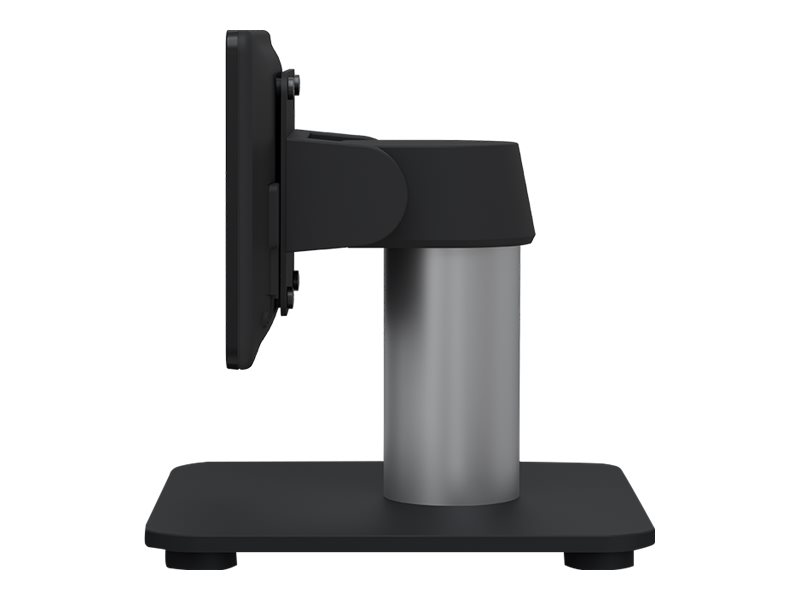

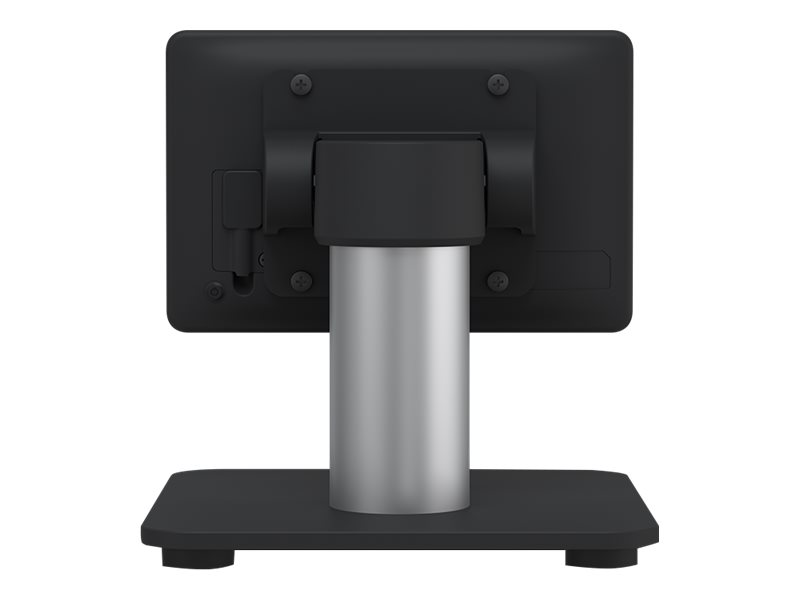

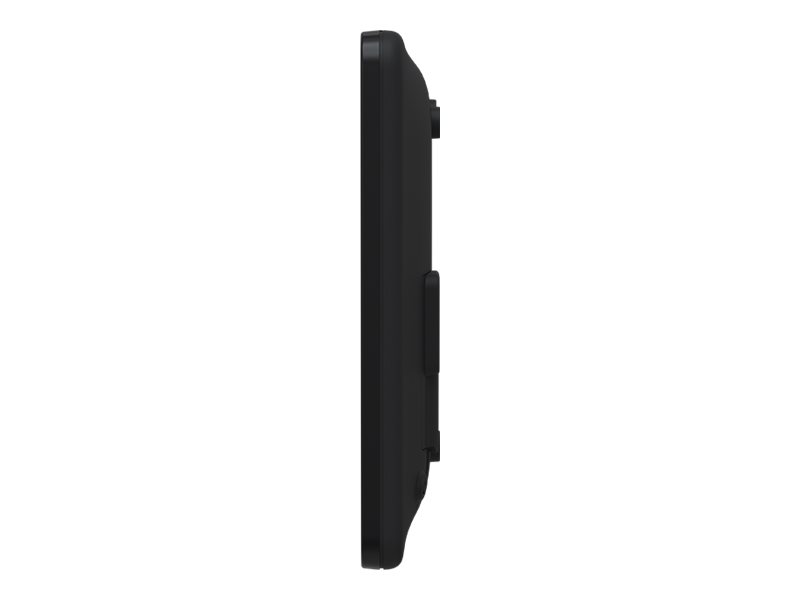

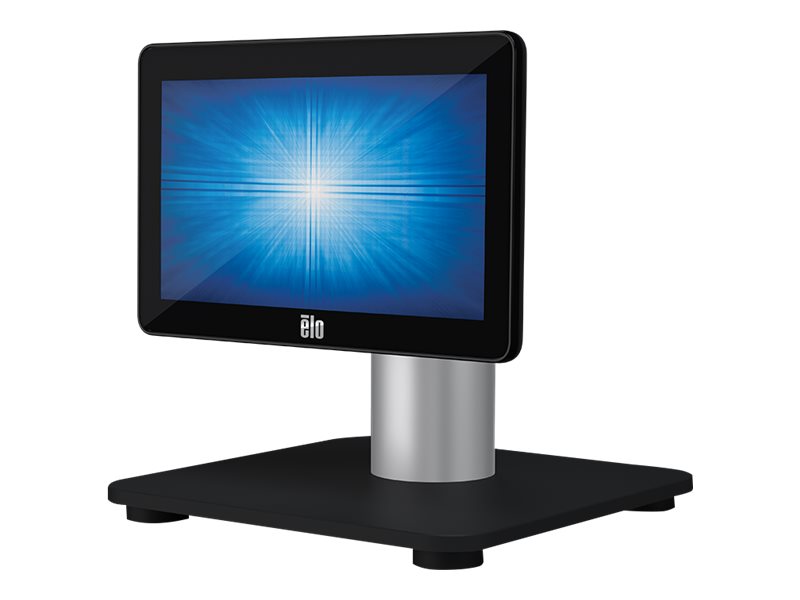

Elo 0702L 7" 800 x 480 USB 60Hz
Elo 0702L - LED-skærm - 7" - touchscreen - 800 x 480 @ 60 Hz - 430 cd/m² - 500:1 - 25 ms - USB - sort
2 237,00 DKK
1 789,60 DKK excl. VAT
-
Product no 994811330
Model E796382
Brand Elo TouchSystems
EAN 0843173110721
Weight 0.68 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Elo 0702L - LED-skærm - 7" |
| Enhedstype | LED-baggrundsbelyst LCD-skærm - 7" - touchscreen |
| Egenskaber | Touch-screen |
| Formatforhold | 5:3 |
| Standard opløsning | 800 x 480 ved 60 Hz |
| Lysstyrke | 430 cd/m² |
| Kontrastforhold | 500:1 |
| Responstid | 25 ms |
| Farve support | 16,2 millioner farver |
| Input-stik | USB |
| Spænding | DC 5 V |
| Farve | Sort |
| Dimensioner (B x D x H) - uden stander | 18.058 cm x 1.77 cm x 11.722 cm |
| Vægt | 350 g |
| Lokalisering | Global |
| Overensstemmelsesstandarder | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, KCC, IP65, RCM, IK06 |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Aspect Ratio | 5:3 |
| Backlight Technology | LED backlight |
| Brightness | 430 cd/m² |
| Color | Black |
| Color Support | 16.2 million colors |
| Contrast Ratio | 500:1 |
| Diagonal Size | 7" |
| Dimensions (WxDxH) | 18.058 cm x 1.77 cm x 11.722 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | Anti-glare, USB bus powered, Projected Capacitive Touch (P-CAP) technology |
| Horizontal Refresh Rate | 31.5 kHz |
| Horizontal Viewing Angle | 150 |
| Native Resolution | 800 x 480 at 60 Hz |
| Response Time | 25 ms |
| Vertical Refresh Rate | 60 Hz |
| Vertical Viewing Angle | 120 |
| Weight | 350 g |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Connectivity | |
| Interfaces | Micro-USB |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, KCC, IP65, RCM, IK06 |
| Localization | Worldwide |
| Power | |
| Input Voltage | DC 5 V |
| Power Consumption (Off Mode) | 1.9 Watt |
| Power Consumption (Typical) | 3.7 Watt |
| Power Consumption Sleep | 0.9 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 9.5 cm |
| Shipping Height | 17 cm |
| Shipping Weight | 650 g |
| Shipping Width | 23.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
