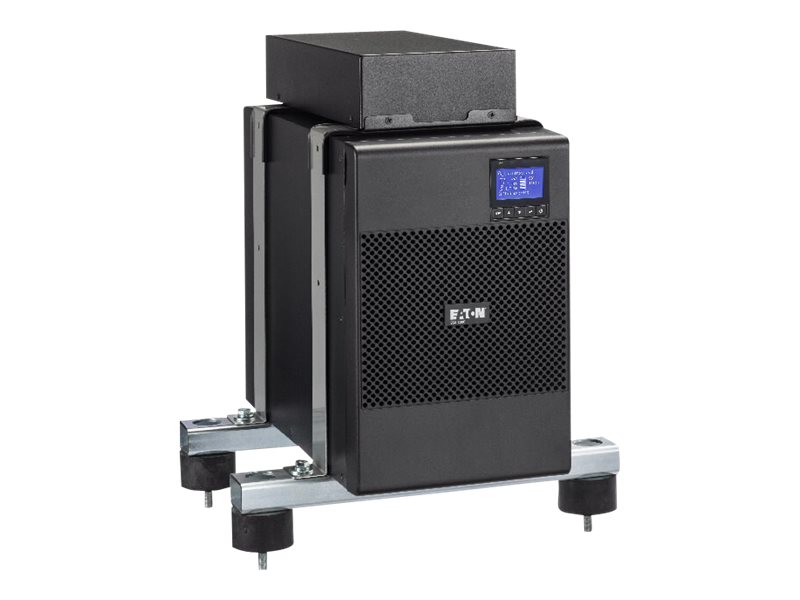

Eaton 9SX 9SX3000IM UPS 2700Watt 3000VA
Eaton 9SX uninterruptible power system (UPS) beskytter dit følsomme elektroniske udstyr mod de mest almindelige strømproblemer, herunder strømsvigt, strømafbrydelser, overspændinger, brownouts, ledningsstøj, højspændingsspidser, frekvensvariationer, overgangskoblinger og harmonisk forvrængning. Strømafbrydelser kan opstå, når man mindst venter det, og strømkvaliteten kan være uberegnelig. Disse strømproblemer har potentiale til at ødelægge kritiske data, ødelægge ikke-gemte arbejdssessioner og beskadige hardware - hvilket medfører timevis af tabt produktivitet og dyre reparationer.
-
Product no 994728703
Model 9SX3000IM
Brand Eaton Corporation
EAN 0743172091024
Weight 33.4 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Eaton 9SX 9SX3000IM - UPS - 2700 Watt - 3000 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 33.4 kg |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V |
| Strømkapacitet | 2700 Watt / 3000 VA |
| Input-stik | 1 x strøm IEC 60320 C20 16A |
| Output-stikforbindelser | 8 x strøm IEC 60320 C13 10 A<br>1 x strøm IEC 60320 C19 16A |
| Batteri | Kan udvides |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 21.4 cm x 41.2 cm x 34.6 cm |
| General | |
|---|---|
| Device Type | UPS - external |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 16A |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 140 - 276 V |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 10A | 1 x power IEC 60320 C19 16A |
| UPS Technology | On-line |
| Battery | |
| Run Time (Up To) | 6 min at 2500 Watts |
| Type | Expandable |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | EPO (emergency power off) - mini terminal block | Relay output - mini terminal block |
| Miscellaneous | |
| Cables Included | 2 x power cable - external - 2 m |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, KCC, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, BIS |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Depth | 41.2 cm |
| Height | 34.6 cm |
| Weight | 33.4 kg |
| Width | 21.4 cm |
