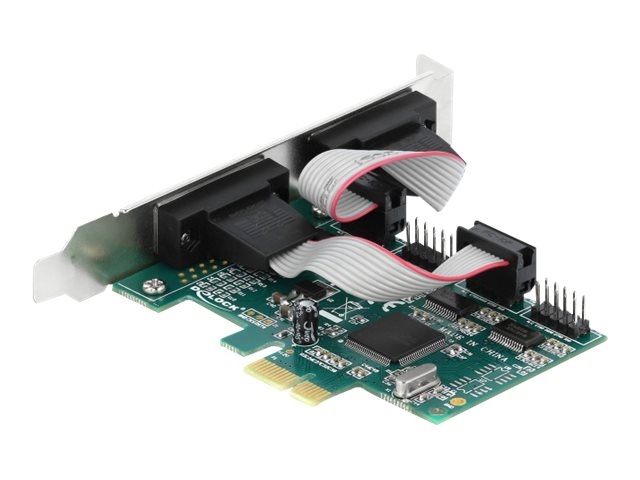

DeLock Seriel adapter PCI Express 1.1 x1 115.2Kbps
Delock - Seriel adapter - PCIe 1.1 lavprofil - RS-232 x 4 - grøn
182,00DKK145,60DKK excl. VAT
-
Product no 995592415
Model 90410
Brand DeLOCK
EAN 4043619904105
Weight 0.2 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Delock - seriel adapter - PCIe 1.1 - RS-232 x 4 |
| Enhedstype | Seriel adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 1.1 x1 |
| PCI-specifikationsrevision | PCIe 1.1 |
| Porte | RS-232 x 4 |
| Dimensioner (B x D x H) | 6.1 cm x 1.6 cm x 8.2 cm |
| Dataforbindelsesprotokol | RS-232 |
| Dataoverførselshastighed | 115.2 Kbps |
| Farve | Grøn |
| Systemkrav | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Linux Kernel 3.18 |
| General | |
|---|---|
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 115.2 Kbps |
| Ports | RS-232 x 4 |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Color | Green |
| Package Type | Retail |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Linux Kernel 3.18 |
| Dimensions & Weight | |
| Depth | 1.6 cm |
| Height | 8.2 cm |
| Width | 6.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
