Product no 994857514
Model 12585
Brand DeLOCK
EAN 4043619125852
Weight 0.12 kg

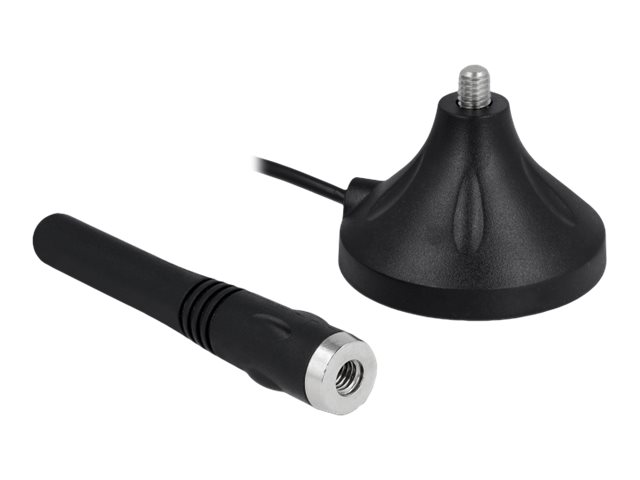

Produktbeskrivelse | Delock LTE Antenna - antenne |
Produkttype | Antenne |
Dimensioner (B x D x H) | 4.8 cm x 4.8 cm x 11 cm |
Produktmateriale | Metal |
Farve | Sort |
Beregnet til | Mobil, Wi-Fi, Bluetooth, Smart Home, telefon |
Antenneplacering/montering | Indendørs / udendørs, magnetisk monterbar |
Kompatibilitet | DECT, UMTS, GSM, LTE, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, Z-Wave, LoRa, NB-IoT |
Frekvensrækkevidde | 1.71 - 2.17 GHz, 698 - 960 MHz, 2.5 - 2.7 GHz |
Forstærkning | 2-3 dBi |
Direktivitet | Omni-directional |
Overensstemmelsesstandarder | RG-174 |
General | |
---|---|
Cable Length | 3 m |
Depth | 4.8 cm |
Enclosure Color | Black |
Height | 11 cm |
Product Material | Metal |
Product Type | Antenna |
Width | 4.8 cm |
Antenna | |
Antenna Placing / Mounting | Indoor / outdoor, magnetic mountable |
Compatibility | DECT, UMTS, GSM, LTE, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, Z-Wave, LoRa, NB-IoT |
Directivity | Omni-directional |
Frequency Range | 1.71 - 2.17 GHz, 698 - 960 MHz, 2.5 - 2.7 GHz |
Gain | 2-3 dBi |
Impedance | 50 Ohm |
Intended For | Cellular, Wi-Fi, Bluetooth, Smart Home, phone |
Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
Cabling & Wiring | |
Compliant Standards | RG-174 |
Connector Provided | 1 x SMA plug |
Miscellaneous | |
Features | Linear vertical polarization, IPX5 compliant |
Mounting Kit | Included |
Environmental Parameters | |
Max Operating Temperature | 70 °C |
Min Operating Temperature | -20 °C |
