Product no 998561055
Model OLS3000EA
Brand CyberPower Systems
EAN 4711027790251
Weight 26 kg
Produktbeskrivelse | CyberPower Online S Series OLS3000EA - UPS - 2700 Watt - 3000 VA |
Enhedstype | UPS - aktiv Power Factor Correction (PFC) - ekstern |
Vægt | 26 kg |
Indgangspænding | AC 230 V |
Udgangspænding | AC 208/220/230/240 V ± 1% |
Strømkapacitet | 2700 Watt / 3000 VA |
Input-stik | 1 x strøm IEC 60320 C20 |
Output-stikforbindelser | 1 x hardwire<br>6 x power IEC 60320 C13<br>1 x strøm IEC 60320 C19 |
Batteri | Blysyre - 9 At |
Driftstid (op til) | 4.3 min ved fuld belastning |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 19.6 cm x 41.6 cm x 33.7 cm |
General | |
---|---|
Color | Black |
Device Type | UPS - active Power Factor Correction (PFC) - external |
Power Device | |
Circuit Protection | Fuse, circuit breaker |
Efficiency | 95% Eco mode |
Frequency Provided | 50/60 Hz ± 0.5% |
Frequency Required | 50/60 Hz ± 10Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Input Voltage | AC 230 V |
Input Voltage Margin | + 10% / - 10% |
Input Voltage Range | AC 190 - 300 V |
Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 2700 Watt / 3000 VA |
Power Factor (PF) | 0.9 |
Power Output Connectors Details | 1 x hardwire | 6 x power IEC 60320 C13 | 1 x power IEC 60320 C19 |
Surge Energy Rating | 370 Joules |
Surge Suppression | Yes |
Total Harmonic Distortion (THD) | 5 % |
UPS Technology | On-line |
Battery | |
Capacity | 9 Ah |
Features | Sealed |
Recharge Time | 4 hours |
Run Time (Up To) | 4.3 min at full load | 13.8 min at half load |
Technology | Lead acid |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |

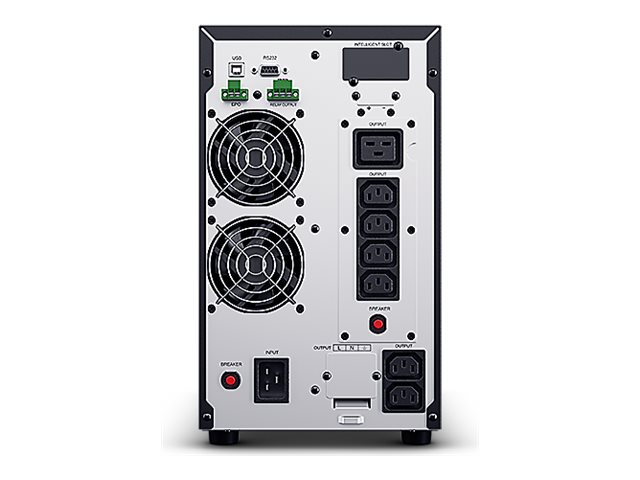

Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) | 1 x dry contact |
Miscellaneous | |
Cables Included | Power cable - external - 1.5 m | USB cable - external |
Compliant Standards | RoHS, LoA |
Features | Built-in 2 cooling fans, variable speed fans, metal housing, audible alarm, emergency power off, LCD display, internal bypass, overload protection, Smart Battery Management (SMB), Eco-Mode, start on battery, generator compatible, double conversion, z |
Environmental Parameters | |
Humidity Range Operating | 20 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 41.6 cm |
Height | 33.7 cm |
Weight | 26 kg |
Width | 19.6 cm |
