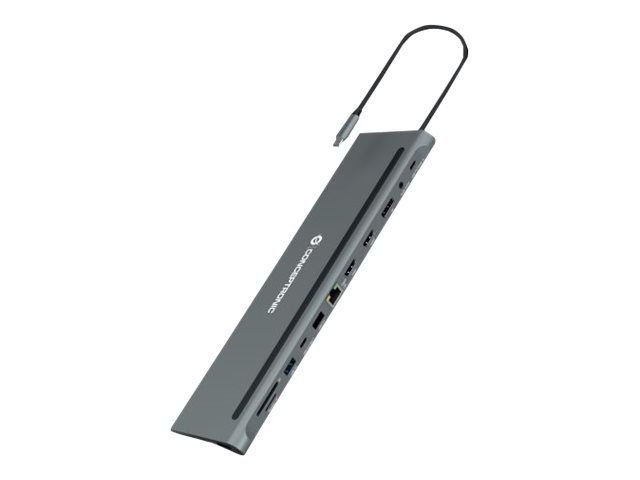

Conceptronic DONN17G Dockingstation
Conceptronic DONN17G - Dockingstation - USB-C 3.2 Gen 1 - 2 x HDMI, DP - 1GbE
517,00DKK413,60DKK excl. VAT
-
Product no 1000913344
Model DONN17G
Brand Conceptronic
EAN 4015867229545
Weight 0.232 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Conceptronic DONN17G - dockingstation - USB-C 3.2 Gen 1 - 2 x HDMI, DP - 1GbE |
| Produkttype | Dockingstation |
| Docking-interface | USB-C 3.2 Gen 1 |
| Videointerfacer | 2 x HDMI, DP |
| Dimensioner (B x D x H) | 6 cm x 28 cm x 1.7 cm |
| Vægt | 232 g |
| Farve | Grå |
| Netværk | Gigabit Ethernet |
| General | |
|---|---|
| Depth | 28 cm |
| Enclosure Color | Gray |
| Height | 1.7 cm |
| Product Type | Docking station |
| Weight | 232 g |
| Width | 6 cm |
| Video | |
| Max Resolution Details | 3840 x 2160, 4K - 60 Hz (Single Display) | 3840 x 2160, 4K - 60 Hz (Dual Display) | 3840 x 2160, 4K - 30 Hz (Triple Display) |
| Networking | |
| Compliant Standards | USB 2.0, USB 3.0 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card | 1 (total) / 1 (free) x microSD |
| Interfaces | 2 x audio / video - HDMI - 19 pin HDMI Type A | 1 x USB-C 3.2 Gen 1 with Power Delivery (100 W) - 24 pin USB-C | 1 x display / video - DisplayPort - 20 pin DisplayPort | 2 x SuperSpeed USB 3.0 - 9 pin USB Type A | 1 x USB 2.0 - 4 pin USB Type A | 1 x |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 18 cm |
| Compliant Standards | Plug and Play, RoHS, WEEE, Directive 2014/30/EU, Directive 2015/863, 2011/65/EU, USB Power Delivery, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, HDMI 2.0 |
| Features | MST (multi-stream transport), 100W power delivery, Mirror Mode, triple display support, aluminum housing, Extend Mode |
| System Requirements | |
| OS Required | Apple MacOS X 10.5 or later, Android 5.0 or later, Microsoft Windows XP / Vista / 7 / 8 / 10 or later |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
