Produktbeskrivelse | Club 3D CSV-7210 - KVM / audio-switch - 2 porte |
Enhedstype | KVM / audio-switch - 2 porte |
Undertype | KVM |
Porte | 2 x KVM / audio |
Antal KVM-brugere | 1 lokalbruger |
Egenskaber | 4K opløsningssupport, metalkabinet, 12-bit Deep Color-support, HDR-support, indbygget 2-port USB 3.1 hub |
Overensstemmelsesstandarder | HDCP 1.4, HDCP 2.2 |
Dimensioner (B x D x H) | 17.8 cm x 7.5 cm x 2.6 cm |
Vægt | 370 g |
Systemkrav | Apple MacOS, Linux, Microsoft Windows |
General | |
---|---|
Compliant Standards | HDCP 1.4, HDCP 2.2 |
Device Type | KVM / audio switch - 2 ports |
Enclosure Type | Desktop |
Features | 4K resolution support, metal housing, 12-bit Deep Color support, HDR support, built-in 2-port USB 3.1 hub |
Keyboard / Mouse Interface | USB |
KVM Local Users Qty | 1 local user |
Max Resolution | 4096 x 2160 @ 60 Hz |
Ports | 2 x KVM / audio |
Subtype | KVM |
Expansion / Connectivity | |
Interfaces | 1 x IrDA mini-jack | 1 x microphone mini-jack console | 1 x audio output mini-jack console | 1 x mouse (USB) Type A console | 1 x keyboard (USB) Type A console | 1 x HDMI console | 2 x DisplayPort console | 2 x DisplayPort | 2 x keyboard (USB) / mous |
Power | |
Power Device | External power adapter |
Power Provided | 5 V - 3 A |
Miscellaneous | |
Cables Included | 2 x USB 3.1 Type A to Type B cable |
Compliant Standards | FCC, RoHS, EMI |

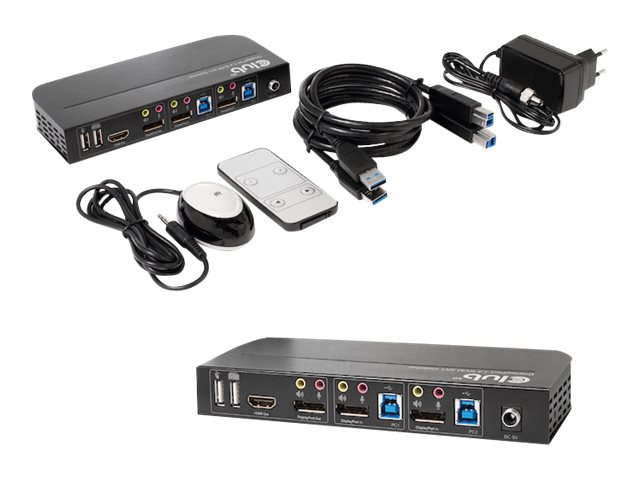

Included Accessories | Wireless remote control, IR extender |
Software / System Requirements | |
OS Required | Apple MacOS, Linux, Microsoft Windows |
Dimensions & Weight | |
Depth | 7.5 cm |
Height | 2.6 cm |
Weight | 370 g |
Width | 17.8 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 21 cm |
Shipping Height | 6.5 cm |
Shipping Weight | 787 g |
Shipping Width | 23 cm |
Environmental Parameters | |
Humidity Range Operating | 10 - 85% RH (non-condensing) |
Humidity Range Storage | 5 - 90% RH (non-condensing) |
Max Operating Temperature | 45 °C |
Max Storage Temperature | 80 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -10 °C |
