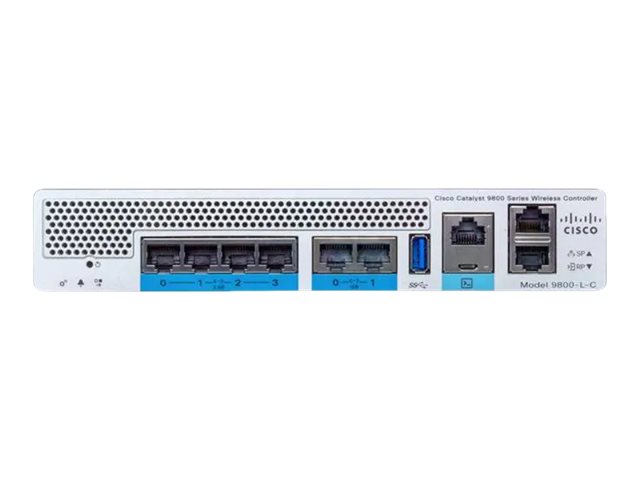

Cisco Catalyst 9800-L Wireless Controller
Cisco Catalyst 9800-L Wireless Controller - Styringsenhed for netværk - 10GbE - Wi-Fi 6 - 1U - rackmonterbar
34 400,00DKK27 520,00DKK excl. VAT
-
Product no 995017334
Model C9800-L-C-K9
Brand Cisco Systems
EAN 0889728225472
Weight 3.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9800-L Wireless Controller - styringsenhed for netværk - Wi-Fi 6 |
| Enhedstype | Styringsenhed for netværk |
| Formfaktor | Rackmonterbar - 1U |
| Dataforbindelsesprotokol | Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Præstation | Kapacitet: 5 Gbps |
| Kapacitet | Maksimum antal adgangs punkter: 250<br>Maksimum antal klienter: 5000<br>Trådløse LANs: 4096<br>VLANs understøttet: 4096 |
| Effekt | AC 120/230 V (50/60 Hz) |
| Dimensioner (B x D x H) | 21.59 cm x 23.01 cm x 4.02 cm |
| Vægt | 1.79 kg |
| Producentgaranti | 1 års garanti |
| General | |
|---|---|
| Depth | 23.01 cm |
| Device Type | Network management device |
| Height | 4.02 cm |
| Height (Rack Units) | 1U |
| Weight | 1.79 kg |
| Width | 21.59 cm |
| Networking | |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Capacity | Maximum number of access points: 250 | Maximum number of clients: 5000 | Wireless LANs: 4096 | VLANs supported: 4096 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1 |
| Encryption Algorithm | Triple DES, AES, IKE, SSL, TLS, WPA, WPA2, PKI, ESP, CRL, CCM, CCMP |
| Features | VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CAPWAP support, Internet Control Message Protocol (ICMP), User Datagram Protocol (UDP), Datagram Transport Layer Security (DTLS) |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour |
| Performance | Throughput: 5 Gbps |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Status Indicators | Power, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 | 1 x management - RJ-45 | 1 x USB - Type A | 1 x mini-USB - Type B | 1 x redundancy | 4 x 10Gb Ethernet - RJ-45 | 4 x 1/2.5GBase-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | VCCI, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, AS/NZS CISPR 22, CNS 13438, EN 300 386, KN32, UL/CSA60950-1, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000 |
| Power | |
| Power Consumption Operational | 86.9 Watt |
| Power Device | External power adapter |
| Power Provided | 110 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided | Cisco IOS XE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
