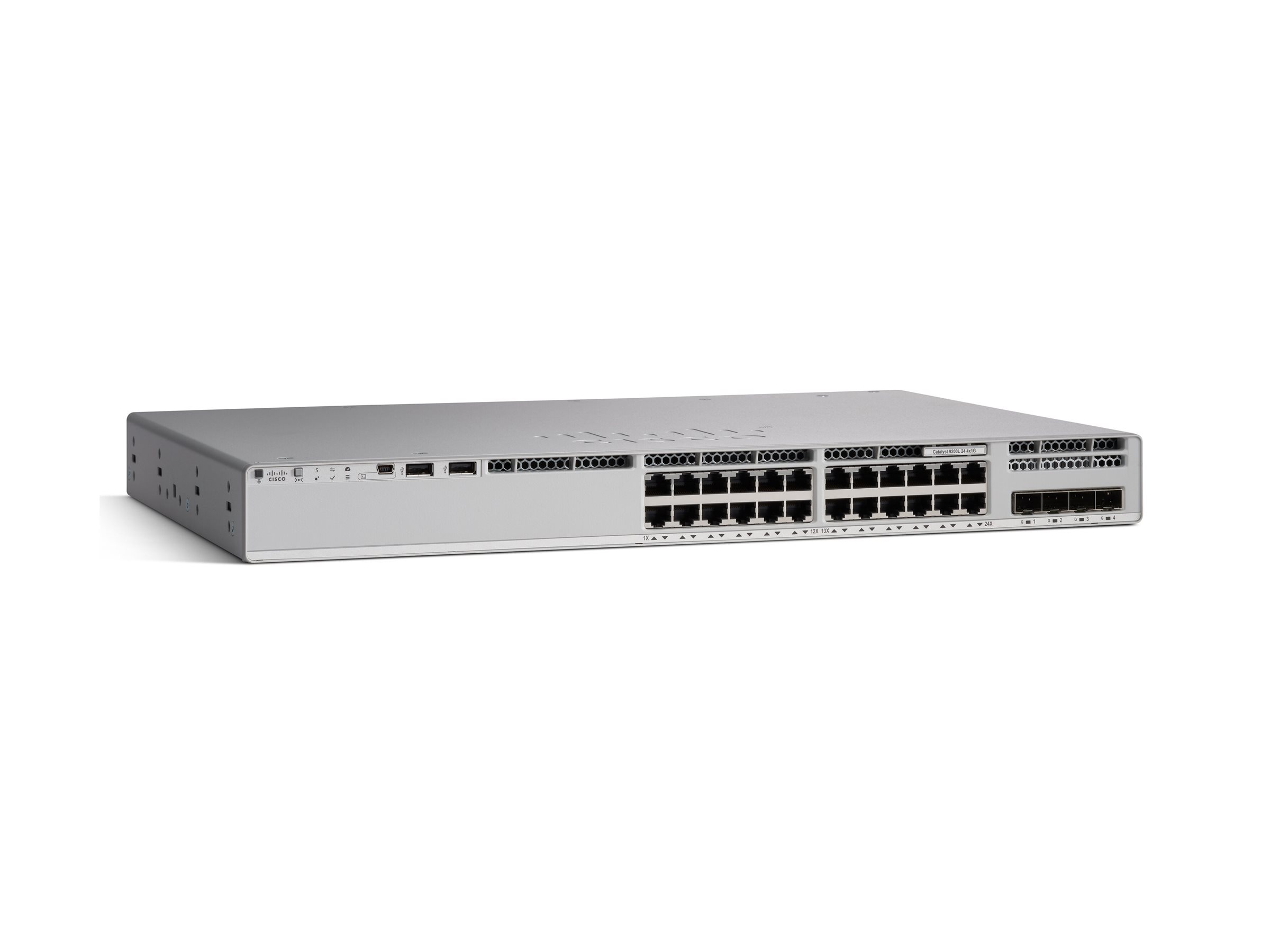

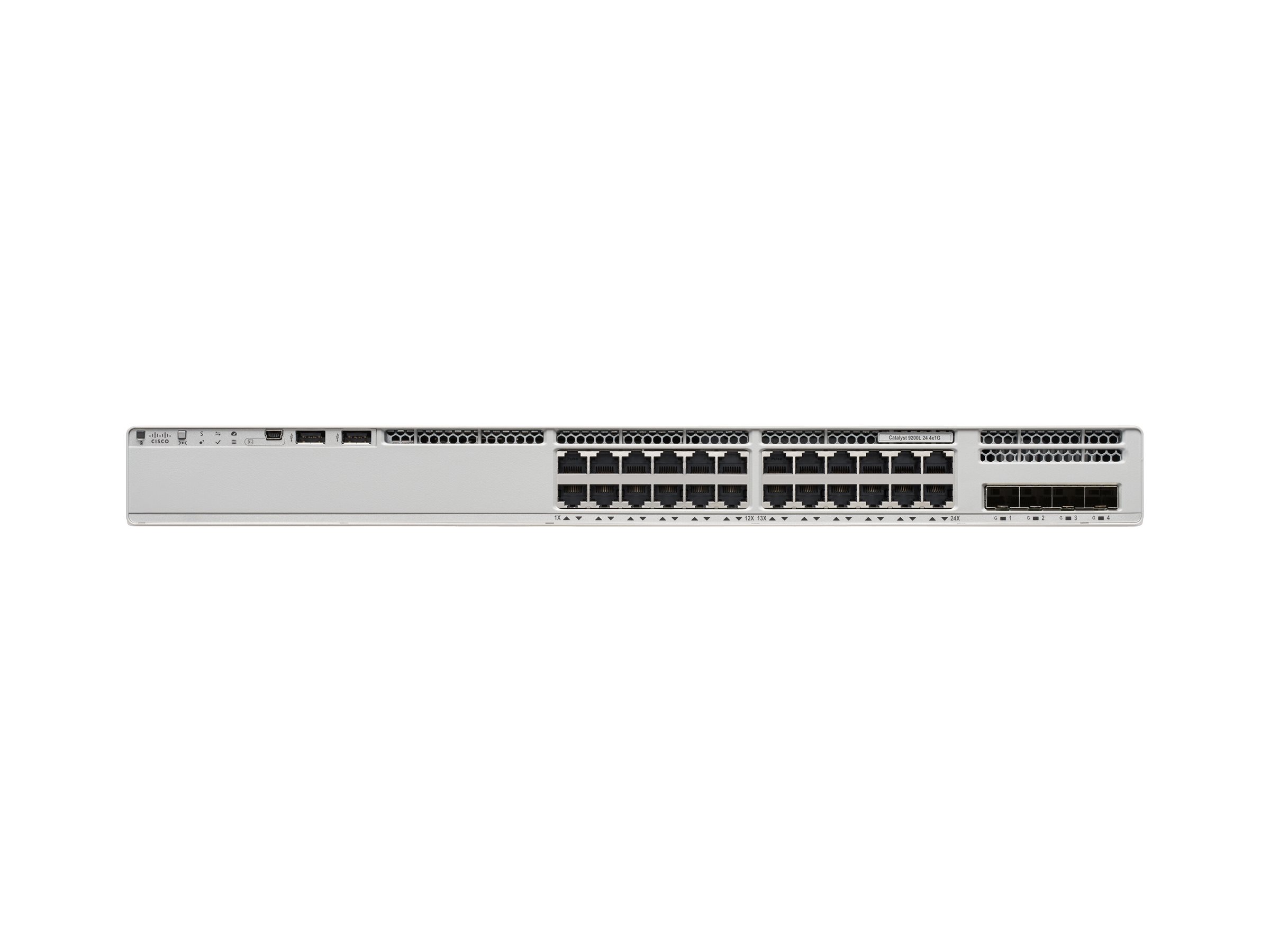

Cisco Catalyst 9200 Switch 24-porte Gigabit
Catalyst 9200-serien leverer de bedste funktioner. Den er meget sikker og altid tændt, og den giver IT-enkelhed, hvilket resulterer i en fantastisk oplevelse hver gang.
-
Product no 994547697
Model C9200-24T-E
Brand Cisco Systems
EAN 0889728168229
Weight 7.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Cisco Catalyst 9200 - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret - kan stables |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 |
| Præstation | Stablende båndbredde: 160 Gbps<br>Skift af båndbredde: 128 Gbps<br>Videresendelseshastighed: 190,4 Mpps |
| Kapacitet | Virtuelle netværk: 4<br>IPv4 indtastning i routing-tabel: 4000<br>IPv6 indtastning i routing-tabel: 2000<br>Flexible NetFlow entries: 16000<br>Pakkebufferstørrelse: 6 MB<br>VLAN ID'er: 4096<br>Switched virtual interfaces (SVIs): 1000 |
| MAC adresse table størrelse | 32.000 optegnelser |
| Jumborammesupport | 9198 byte |
| Routingprotokol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, police-baseret routing (PBR), RIPng, MSTP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Egenskaber | Understøttet af ARP, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, Cisco StackWise-160 teknologi, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Effekt | AC 100-240 V (50 - 60 Hz) |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44.5 cm x 35 cm x 4.4 cm |
| Vægt | 5 kg |
| General | |
|---|---|
| Capacity | Virtual networks: 4 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | Flexible NetFlow entries: 16000 | Packet buffer size: 6 MB | VLAN IDs: 4096 | Switched virtual interfaces (SVIs): 1000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | 128-bit AES |
| Features | ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Bas |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance | Stacking bandwidth: 160 Gbps | Switching bandwidth: 128 Gbps | Forwarding rate: 190.4 Mpps |
| Ports | 24 x 10/100/1000 |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Subtype | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 | 1 x network stack device | 1 x management (LAN) RJ-45 | 1 x console RJ-45 |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 125 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 P |
| MTBF | 587,800 hours |
| Dimensions & Weight | |
| Depth | 35 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
Super sikker
Få avancerede sikkerhedsfunktioner, der beskytter integriteten af din hardware, software og alle data, der flyder gennem switchen.
Altid på
Catalyst 9200-seriens switche giver modstandsdygtighed, analyse og sikkerhed på virksomhedsniveau, så din virksomhed kan køre problemfrit.
