AXIS P5676-LE Netværksovervågningskamera Automatisk irisblænder Udendørs Indendørs 2688 x 1512

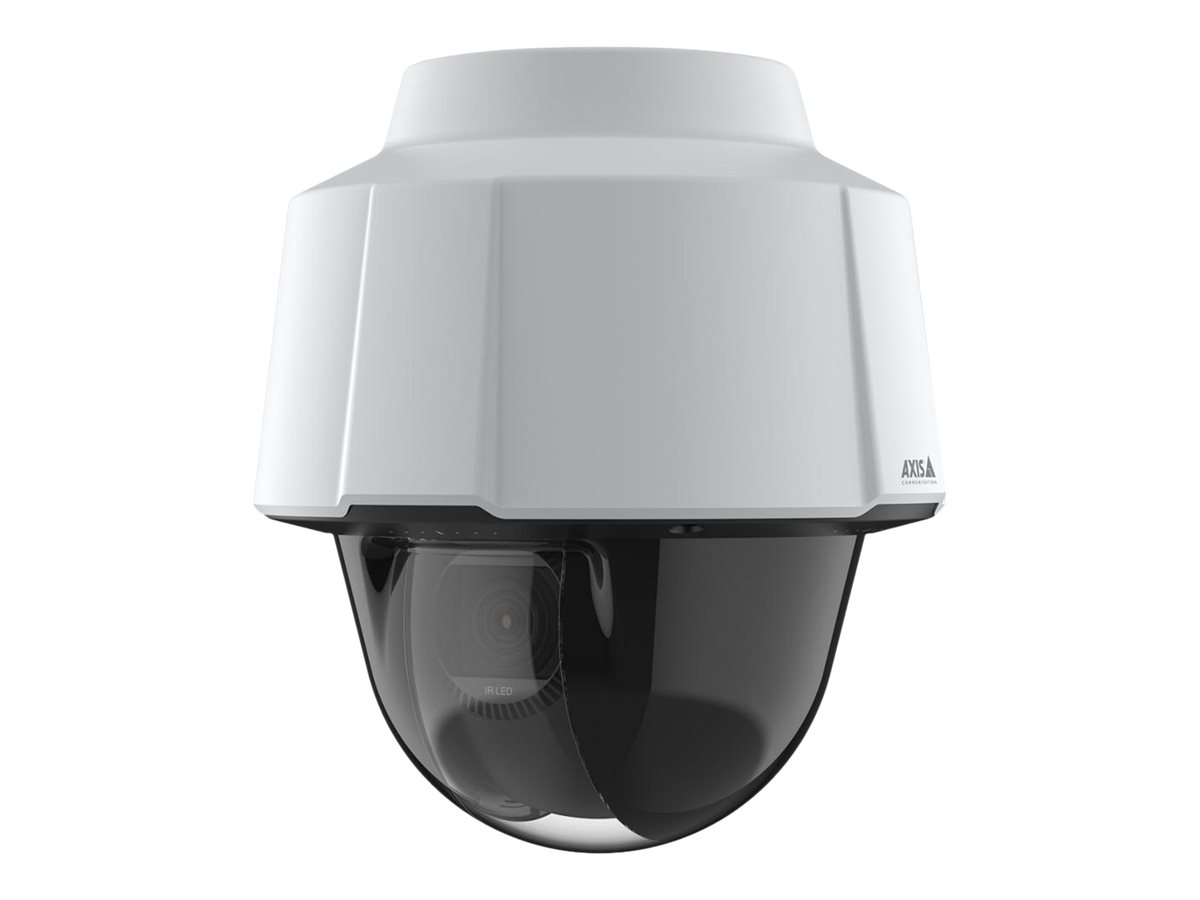

AXIS P5676-LE - Netværksovervågningskamera - PTZ - udendørs, indendørs - vandalresistent - farve (Dag/nat) - 4 MP - 2688 x 1512 - automatisk irisblænder - motoriseret - audio - LAN 10/100 - MJPEG, H.265, H.264B, H.264H, H.264M - DC 20 - 28 V / AC 20 - 24 V / PoE Class 6
18 084,00DKK14 467,20DKK excl. VAT
-
Product no 1001065625
Model 02413-001
Brand Axis Communications
EAN 7331021076938
Weight 3.19 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS P5676-LE - netværksovervågningskamera |
| Enhedstype | Netværksovervågningskamera - pan / tilt / zoom - udendørs, indendørs - vandalresistent |
| Audio | Ja: tovejs-audiofunktion |
| Dimensioner (B x D x H) | 20.5 cm x 20.5 cm x 24.2 cm |
| Vægt | 2.5 kg |
| Farve | Hvid, NCS S 1002-B |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 30 x |
| Maksimum opløsning | 2688 x 1512 |
| Billedhastighed (maks.) | 50 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | PS RGB CMOS - 1/2.9" - 4 MP |
| Minimumbelysning | 0.1 lux - farve - F1.6 - 30 IRE<br>0.01 lux - S/H - F1.6 - 30 IRE<br>0.11 lux - farve - F1.6 - 50 IRE<br>0.03 lux - S/H - F1.6 - 50 IRE<br>0 lux - IR |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 4.5 mm - 135 mm |
| Fokusindstilling | (mindsteafstand 1.3 m) |
| Objektiv Iris | F/1.6-4.6 - automatisk irisblænder (P-Iris) |
| Poanoreringsvinkel (grad) | 360 |
| Krængningsvinkel (grad) | 0 til 90 |
| Interface | Ethernet 10Base-T/100Base-TX |
| Spænding | DC 20 - 28 V / AC 20 - 24 V / PoE Class 6 |
| Egenskaber | Skarphedskontrol, hvidbalance, mætningskontrol, lysstyrkekontrol, kontrastkontrol, Advanced Gatekeeper, 256 forudindstillede positioner, kodeordsbeskyttelse, støddetektion, Variable Bitrate (VBR), Audio Detection, OptimizedIR, auto-kontroltilegnelse, Zipstream-teknologi, ONVIF (Profil S) support, ONVIF (Profile G) support, eksponeringskontrol, Pixel Counter Support, infrarødt skåret filter, digest-autentificering, Forensic WDR, IP-adressefiltrering, elektronisk billedstabilisering, eksponeringszone, vagttur, retningsindikator på skærmen, HTTP-kryptering, fokusgenkald, underskrevet firmware, sikker støvle, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, Lightfinder 2.0 teknologi, autotracking 2, Nadir flip, afrimning, kompression, 180° billedrotation, lav latens-tilstand, hukommelseskortkryptering, brugeradgangslog, centraliseret certifikatsadministration, råstyrkeforsinkelsesbeskyttelse, Maskinlærings-behandlingsenhed (MLPU), billedfrys, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis-enheds-ID, videostreaming-indikator, kontrolkø, signeret video, fintuning af opførsel ved lavt lys, tonekortlægning, tromleforvrængningskorrektion, netværkshøjttalerparring, indstil ny panorering 0°, spotfokus, dag/nat skifteniveau, 20 individuelle polygoner og mosaik-fortrolighedsmasker, retningshjælp PTZ, målblænde |
| Producentgaranti | 5 års garanti |
| Miljømæssige parametre (operativ) | -30 °C - 50 °C; 10 - 100% RH (condensing) relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 20.5 cm |
| Device Type | Network surveillance camera |
| Height | 24.2 cm |
| Localization | Argentina, Australia, China, United Kingdom, European Union |
| Weight | 2.5 kg |
| Width | 20.5 cm |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1512, 320 x 180 |
| Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
| Digital Zoom | 12 |
| Exposure Range | 1/5 sec - 1/50000 sec |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, Advanced Gatekeeper, 256 preset positions, password protection, shock detection, Variable Bitrate (VBR), Audio Detection, OptimizedIR, auto gain control, Zips |
| Flash Memory | 512 MB |
| Frame Rate (max) | 50 frames per second |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1512 |
| Minimum Illumination | 0.1 lux - color - F1.6 - 30 IRE | 0.01 lux - B&W - F1.6 - 30 IRE | 0.11 lux - color - F1.6 - 50 IRE | 0.03 lux - B&W - F1.6 - 50 IRE | 0 lux - IR |
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor - vandal-resistant |
| Image Sensor | |
| Type | 4 MP PS RGB CMOS 1/2.9" |
| Lens Construction | |
| Focal Length | 4.5 mm - 135 mm |
| Horizontal Field of View (degree) | 2.1 - 57.1 |
| Lens Iris | F/1.6-4.6 auto iris (P-Iris) |
| Min Focus Distance | 1.3 m |
| Optical Zoom | 30 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.2 - 34.4 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 350 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Speed (degree/sec) | Up to 350 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, NTCIP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line-in/microphone | Audio line out |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, RoHS 2011/65/EU, IEC 62471, NEMA250 T |
| Included Accessories | RJ45 push-pull connector |
| Power | |
| Power Device | 13 Watt |
| Power Requirements | DC 20 - 28 V / AC 20 - 24 V / PoE Class 6 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
