AXIS M5000 Netværksovervågningskamera Automatisk irisblænder Indendørs 2592 x 1944

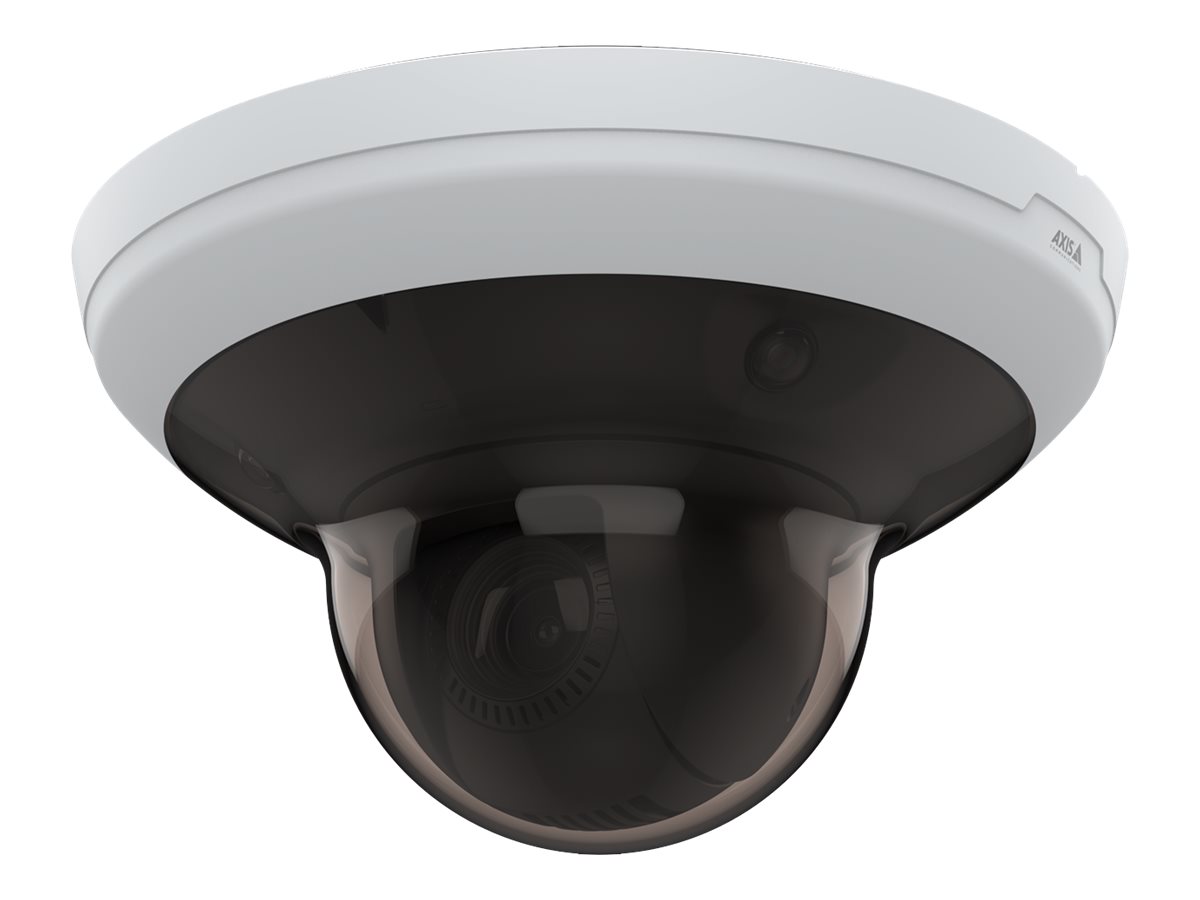

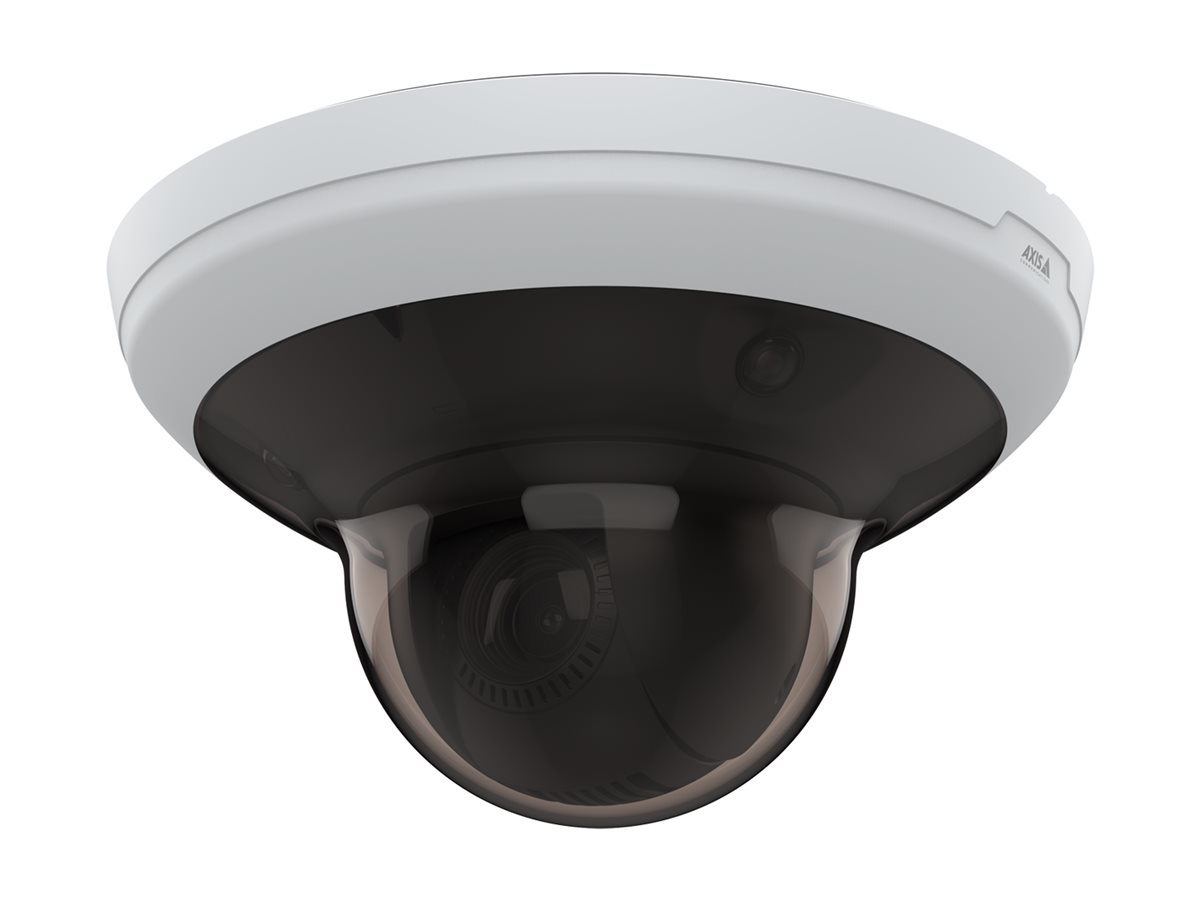

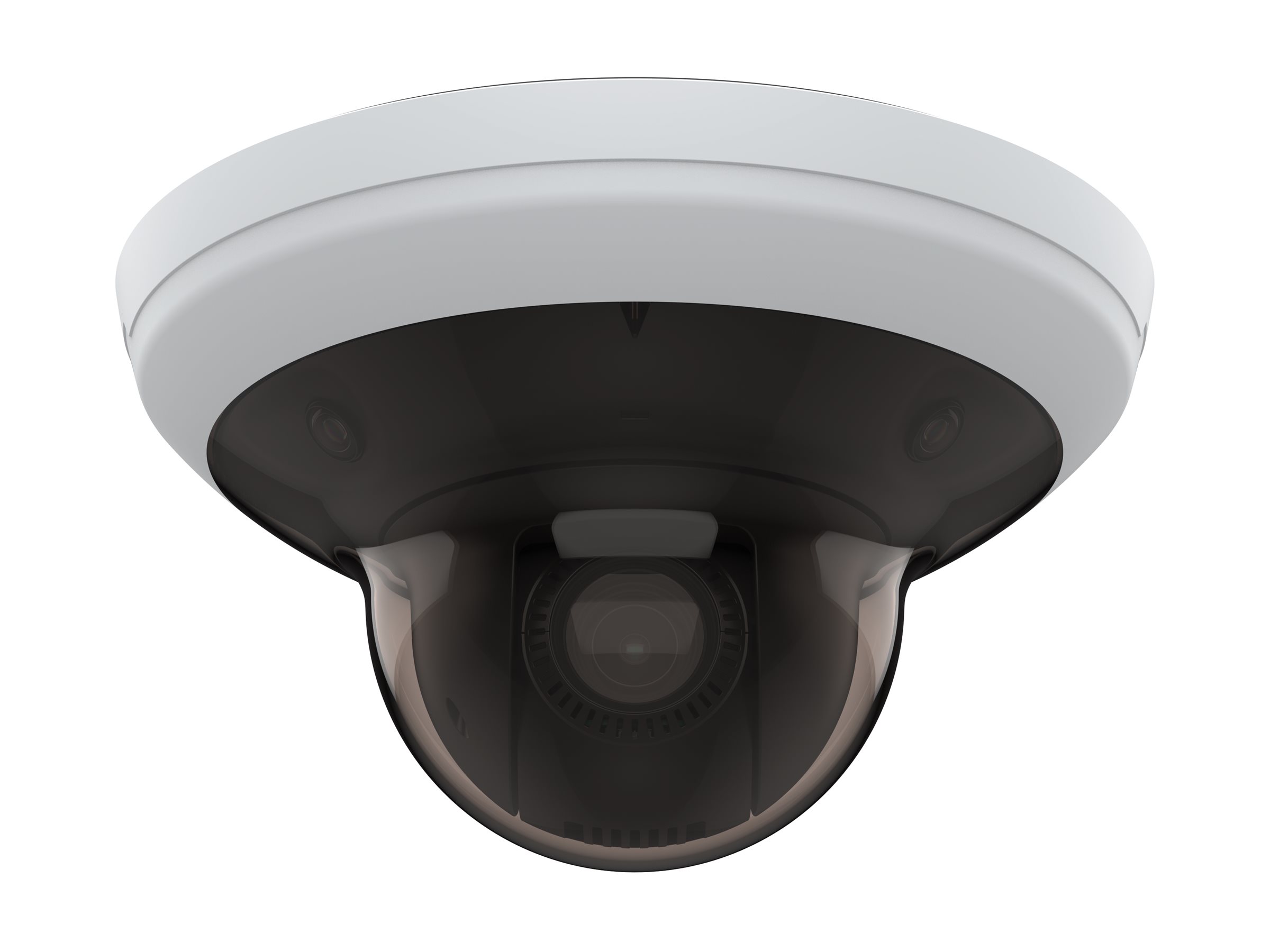

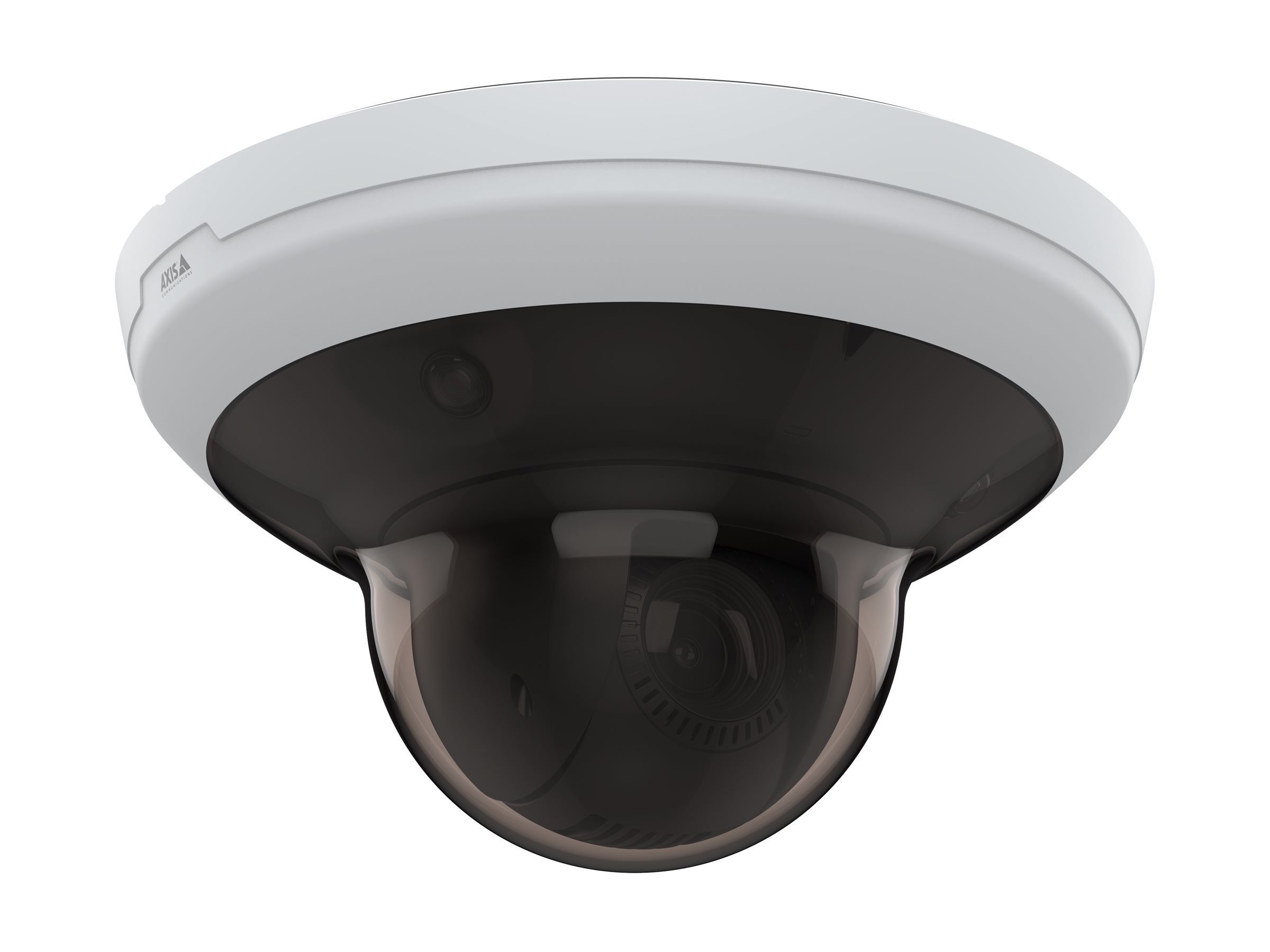

AXIS M5000 - Netværksovervågningskamera - PTZ - kuppel - indendørs - farve (Dag/nat) - 15 MP - 2592 x 1944 - 1080p - automatisk irisblænder - motoriseret - audio - GbE - MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - DC 20 - 28 V / PoE Class 4
11 567,00 DKK
9 253,60 DKK excl. VAT
-
Product no 1000643251
Model 02187-001
Brand Axis Communications
EAN 7331021074439
Weight 1.95 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS M5000 - netværksovervågningskamera - kuppel |
| Enhedstype | Netværksovervågningskamera - pan / tilt / zoom - kuppel - indendørs |
| Audio | Ja: tovejs-audiofunktion |
| Dimensioner (B x D x H) | 24.7 cm x 24.7 cm x 13.8 cm |
| Vægt | 1.95 kg |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 10 x |
| Maksimum opløsning | 2592 x 1944 |
| Billedhastighed (maks.) | 25 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Video Modes | 1080p |
| Billedsensortype | CMOS - 1/2.8" - 15 MP |
| Minimumbelysning | 0.09 lux - farve - F1.6 - 30 IRE<br>0.01 lux - S/H - F1.6 - 30 IRE<br>0.1 lux - farve - F1.6 - 50 IRE<br>0.01 lux - S/H - F1.6 - 50 IRE |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 4.7 mm - 47 mm |
| Fokusindstilling | Automatisk |
| Objektiv Iris | F/1.6-3.0 - automatisk irisblænder (P-Iris) |
| Poanoreringsvinkel (grad) | 360 |
| Krængningsvinkel (grad) | 0 til 180 |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Spænding | DC 20 - 28 V / PoE Class 4 |
| Egenskaber | Skarphedskontrol, hvidbalance, mætningskontrol, lysstyrkekontrol, kontrastkontrol, infrarød skære filter, kodeordsbeskyttelse, 100 forudindstillede positioner, e-Flip, Variable Bitrate (VBR), Audio Detection, auto-kontroltilegnelse, Zipstream-teknologi, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, Forensic WDR, IP-adressefiltrering, eksponeringszone, HTTP-kryptering, underskrevet firmware, sikker støvle, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 teknologi, dag/nat-tærskel, kompression, tekstskabelon, polygon-fortrolighedsmaske, køadministration, billedfrys |
| Producentgaranti | 5 års garanti |
| Miljømæssige parametre (operativ) | 0 °C - 40 °C; 10 - 85 % (ikke-kondenserende) relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 24.7 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 13.8 cm |
| Localization | Argentina, Australia, China, United Kingdom, Europe |
| Weight | 1.95 kg |
| Width | 24.7 cm |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 2592 x 1944, 320 x 180 |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Digital Zoom | 12 |
| Exposure Range | 2 sec - 1/66500 sec |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, infrared cut filter, password protection, 100 preset positions, e-Flip, Variable Bitrate (VBR), Audio Detection, auto gain control, Zipstream technology, ONVI |
| Flash Memory | 512 MB |
| Frame Rate (max) | 25 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination | 0.09 lux - color - F1.6 - 30 IRE | 0.01 lux - B&W - F1.6 - 30 IRE | 0.1 lux - color - F1.6 - 50 IRE | 0.01 lux - B&W - F1.6 - 50 IRE |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - pan / tilt / zoom - indoor |
| Video Modes | 1080p |
| Image Sensor | |
| Type | 15 MP CMOS 1/2.8" |
| Lens Construction | |
| Focal Length | 4.7 mm - 47 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 6.7 - 61.8 |
| Lens Iris | F/1.6-3.0 auto iris (P-Iris) |
| Optical Zoom | 10 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 3.8 - 36.3 |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | 0 to 180 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Microphone | Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IP51, NMB-3 Class A, RCM, IS13252, CAN ICES-3 Class A, AS/NZS CISPR 32 Class A, EN 55032 Class A, CAN |
| Included Accessories | Drill hole template, connector guard, terminal block connectors, Bayonet screws |
| Power | |
| Power Requirements | DC 20 - 28 V / PoE Class 4 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
