Product no 1000959672
Model 02380-001
Brand Axis Communications
EAN 7331021076709
Weight 4.1 kg

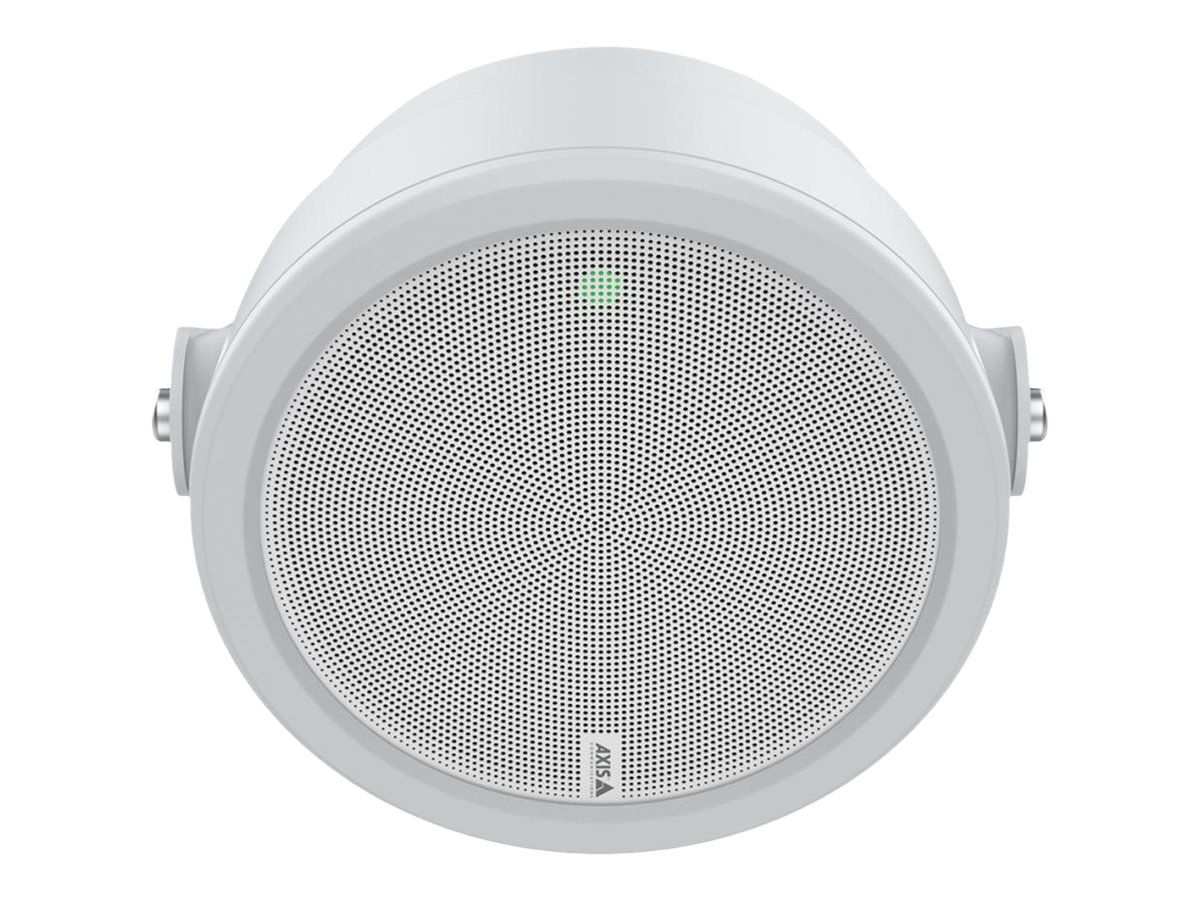

Produktbeskrivelse | Axis C1610-VE - lydprojektor |
Produkttype | Lydprojektor |
Egenskaber | DSP |
Integreret hukommelse | Flash - 512 MB |
Beskyttelse | Vandal-resistent |
Højttalertype | Aktiv |
Frekvensrespons | 200 - 16000 Hz |
Forstærker-outputstrøm | 7 W - D |
Forstærker | Integreret |
Interface | PoE, PoE-Plus |
Audioformater | WAV, G.726, MP3, ADPCM, AAC-LC, G.711 |
Dimensioner (B x D x H) | 10.5 cm |
Dimensioner - Diameter | 20.3 cm |
Vægt | 4.1 kg |
Producentgaranti | 5 års garanti |
General | |
---|---|
Enclosure Material | Aluminum |
Features | DSP, AXIS Audio Manager Edge, 2-way audio talkback |
Integrated Memory | Flash - 512 MB |
Microphone | Yes |
Product Type | Sound projector |
Protection | Vandal-resistant |
Speaker System | |
Amplifier | Integrated |
Amplifier Class | D |
Amplifier Output Power | 7W |
App-Controlled | Yes |
Audio Formats | WAV, G.726, MP3, ADPCM, AAC-LC, G.711 |
Coverage | 130° |
Frequency Response | 200 - 16000 Hz |
Interfaces | IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
Max Output Level (Max SPL) | 106 dB |
Maximum Sampling Rate Supported | 48 kHz |
Network Protocols | TCP, UDP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, NTP, UPnP, SSH, FTP, SSL, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, IGMP, DHCP, SOCKS, SIP |
Recommended Placing | Indoor / outdoor |
Speaker Type | Active |
Voice Codecs | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
VoIP Protocols | SIP, SRTP, SIP over TLS, SIPS |
Connections | |
Connector Type | LAN (RJ-45) | (4 pin terminal block) |
Miscellaneous | |
Compliant Standards | EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class B, MIL-STD 810G 509.5, EN 55032 Class B, AS/NZS CISPR 32 Class B, NEMA250 Type 4X, KCC KN32 Class B |
Included Accessories | AVHS authentication key, AXIS Camera Station license key, cable shoe, AXIS Connector Guard A |
Power | |
Power Source | Power over Ethernet (PoE) |
Dimensions & Weight | |
Diameter | 20.3 cm |
Height | 10.5 cm |
Weight | 4.1 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Humidity Range Operating | 10 - 100% RH (condensing) |
Humidity Range Storage | 5 - 95% RH (non-condensing) |
Max Operating Temperature | 55 °C |
Max Storage Temperature | 65 °C |
Min Operating Temperature | -40 °C |
Min Storage Temperature | -40 °C |
