Product no 993236331
Model VS0801HB-AT-G
Brand ATEN Technology
EAN 4719264646300
Weight 2.14 kg

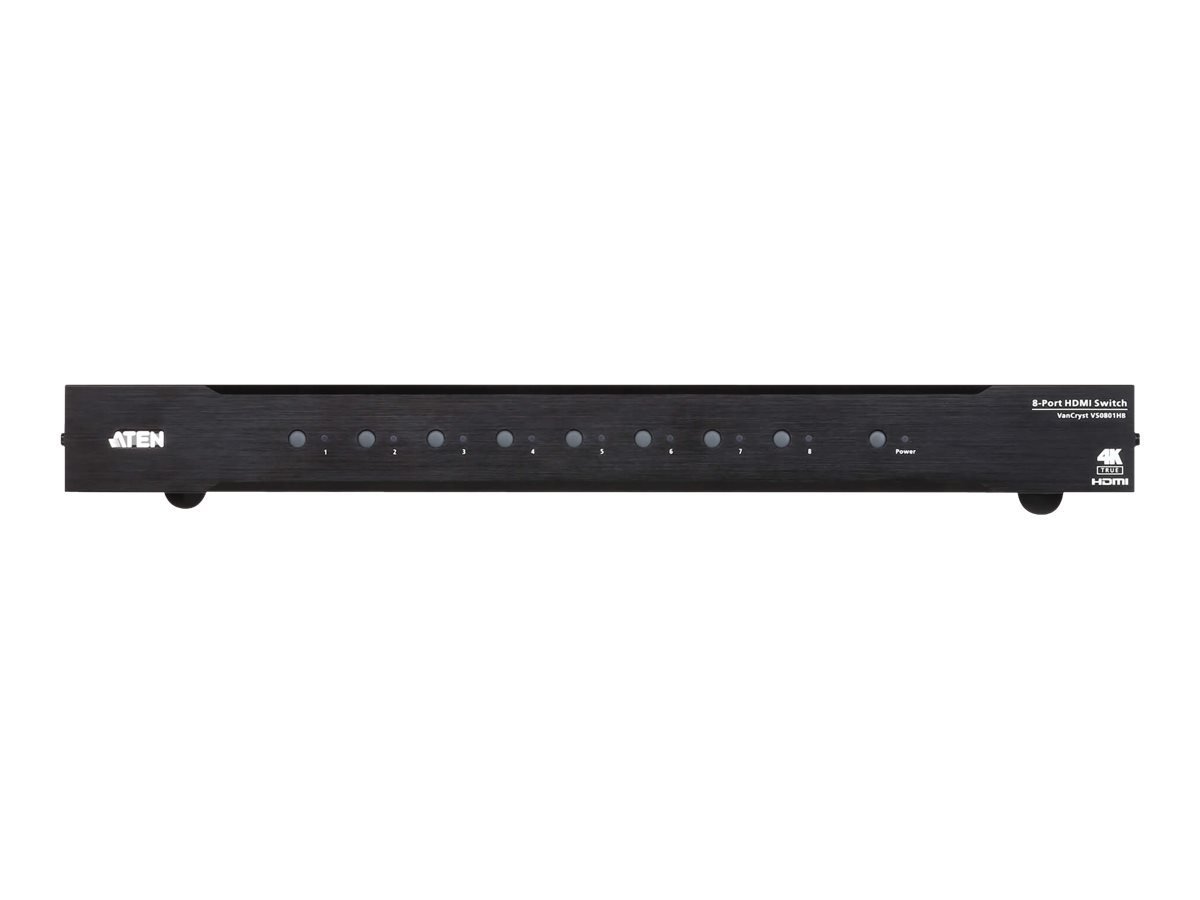

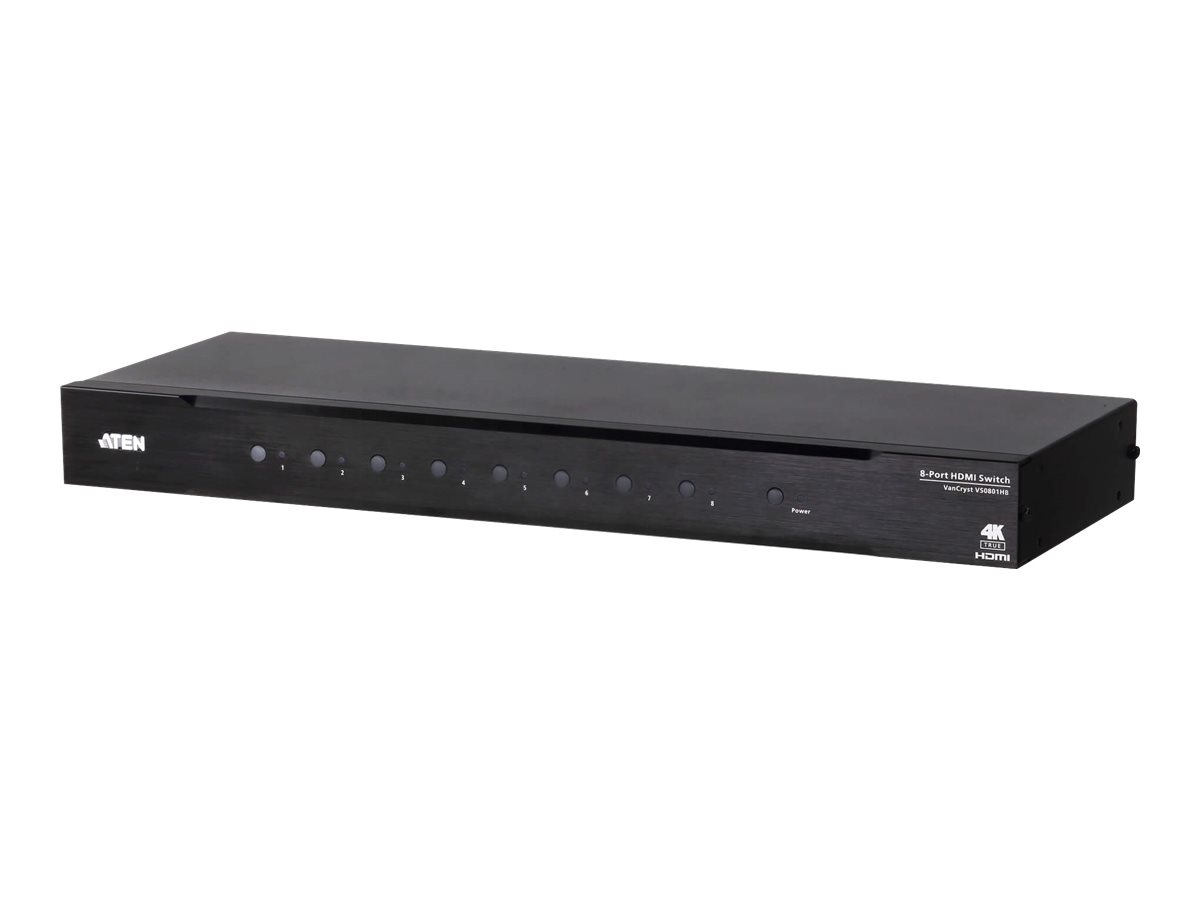

Produktbeskrivelse | ATEN VanCryst VS0801HB 8-Port True 4K HDMI Switch - video-/audioswitch - 8 porte - monterbar på stativ |
Enhedstype | Video-/audioswitch - 8 porte |
Pakningstype | Monterbar på stativ |
Undertype | HDMI |
Porte | 8 x HDMI |
Præstation | Maksimal datahastighed: 18 Gbps |
Egenskaber | 3D-support, 12-bit Deep Color-support |
Overensstemmelsesstandarder | HDCP 2.2 |
Dimensioner (B x D x H) | 43.72 cm x 15.83 cm x 4.4 cm |
Vægt | 2.14 kg |
General | |
---|---|
Compliant Standards | HDCP 2.2 |
Device Type | Video/audio switch - 8 ports |
Enclosure Type | Rack-mountable |
Features | 3D support, 12-bit Deep Color support |
Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
Max Video Bandwidth | 600 MHz |
Performance | Maximum data rate: 18 Gbps |
Ports | 8 x HDMI |
Subtype | HDMI |
Expansion / Connectivity | |
Interfaces | 8 x HDMI output Type A | 1 x HDMI input Type A | 1 x serial (RS-232) DB-9 | 1 x IrDA mini-jack |
Power | |
Power Consumption Operational | 14.84 Watt |
Power Device | External power adapter |
Miscellaneous | |
Compliant Standards | Plug and Play |
Included Accessories | Remote control |
Dimensions & Weight | |
Depth | 15.83 cm |
Height | 4.4 cm |
Weight | 2.14 kg |
Width | 43.72 cm |
Environmental Parameters | |
Humidity Range Operating | 0 - 80% (non-condensing) |
Max Operating Temperature | 40 °C |
Max Storage Temperature | 60 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -20 °C |
