Product no 1000207396
Model 90SB0A90-M0UAY0
Brand
ASUSTeK COMPUTER
Go to brand's website
EAN 4711081420217
Weight 1.47 kg

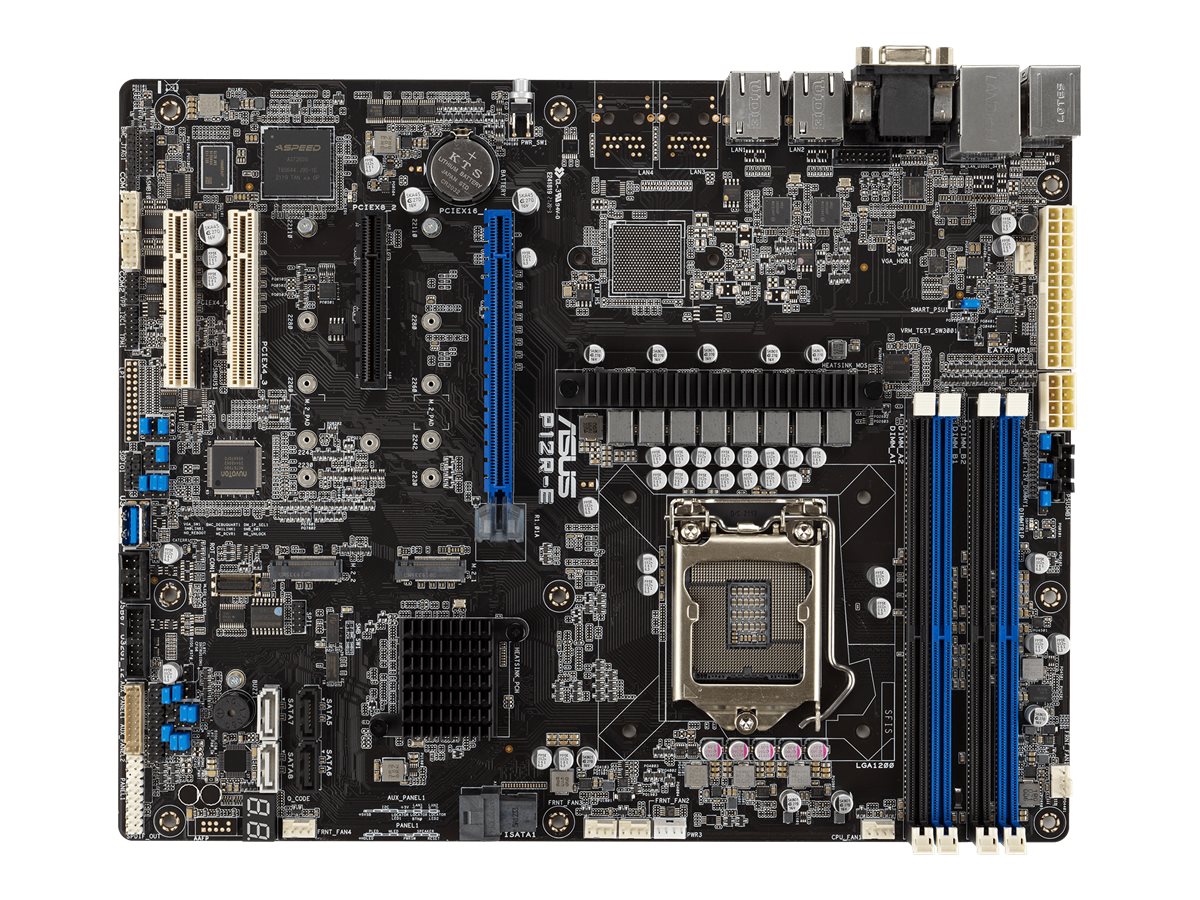

Produktbeskrivelse | ASUS P12R-E - bundkort - ATX - LGA1200 sokkel - C256 |
Produkttype | Bundkort - ATX |
Chipsættype | Intel C256 |
Processor-socket | 1 x LGA1200 sokkel |
Kompatible processorer | Pentium, Xeon E |
Max RAM-størrelse | 128 GB |
RAM understøttet | 4 DIMM åbninger - DDR4 ikke bufferet |
Lagringsporte | 1 x Mini-SAS HD, 4 x SATA-600, 1 x M.2 |
USB / FireWire porte | 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser) |
Grafik | ASPEED AST2600 |
Dedikeret videohukommelse | 64 MB |
LAN | 2 x 10 Gigabit Ethernet |
General | |
---|---|
Chipset Type | Intel C256 |
Compatible Processors | Pentium, Xeon E |
Max Processors Qty | 1 |
Processor Socket | LGA1200 Socket |
Product Type | Motherboard - ATX |
Supported RAM | |
Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
Features | Dual channel memory architecture |
Max Size | 128 GB |
Registered or Buffered | Unbuffered |
Technology | DDR4 |
Graphics | |
Dedicated Video Memory | 64 MB |
Graphics Controller | ASPEED AST2600 |
LAN | |
Network Controller | 2 x Intel I210AT |
Network Interfaces | 2 x 10 Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) | 1 x PCIe 4.0 x8 | 2 x PCIe 3.0 x8 (x4 mode) |

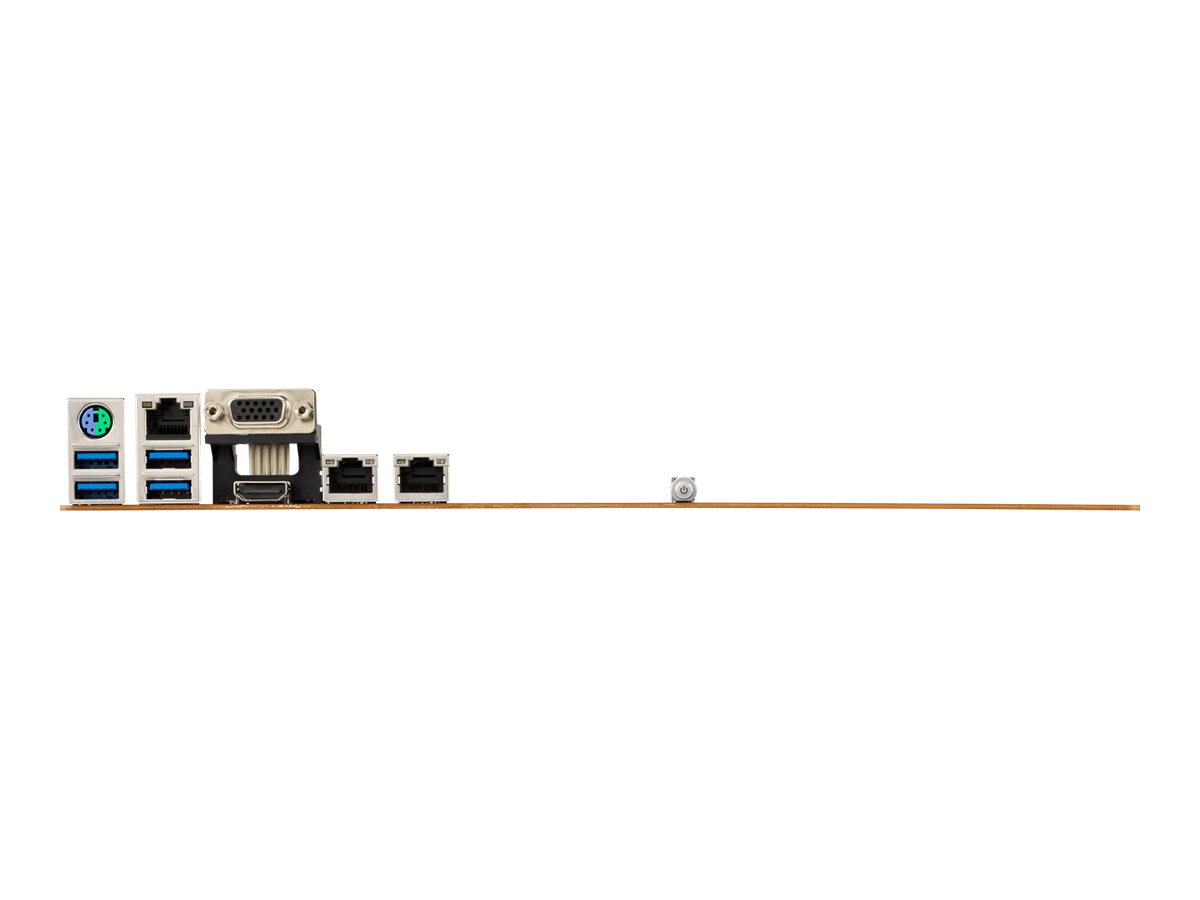

Interfaces | 2 x LAN (Gigabit Ethernet) | 1 x management | 1 x HDMI | 1 x VGA | 1 x PS/2 keyboard / mouse | 2 x USB 3.2 Gen 1 | 2 x USB 3.1 Gen 2 |
Internal Interfaces | 1 x serial - header | 2 x USB 3.2 Gen 1 - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices | SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
Miscellaneous | |
Depth | 24.4 cm |
Included Accessories | I/O back cover |
Weight | 760 g |
Width | 30.5 cm |
Dimensions & Weight (Shipping) | |
Shipping Weight | 1.3 kg |
