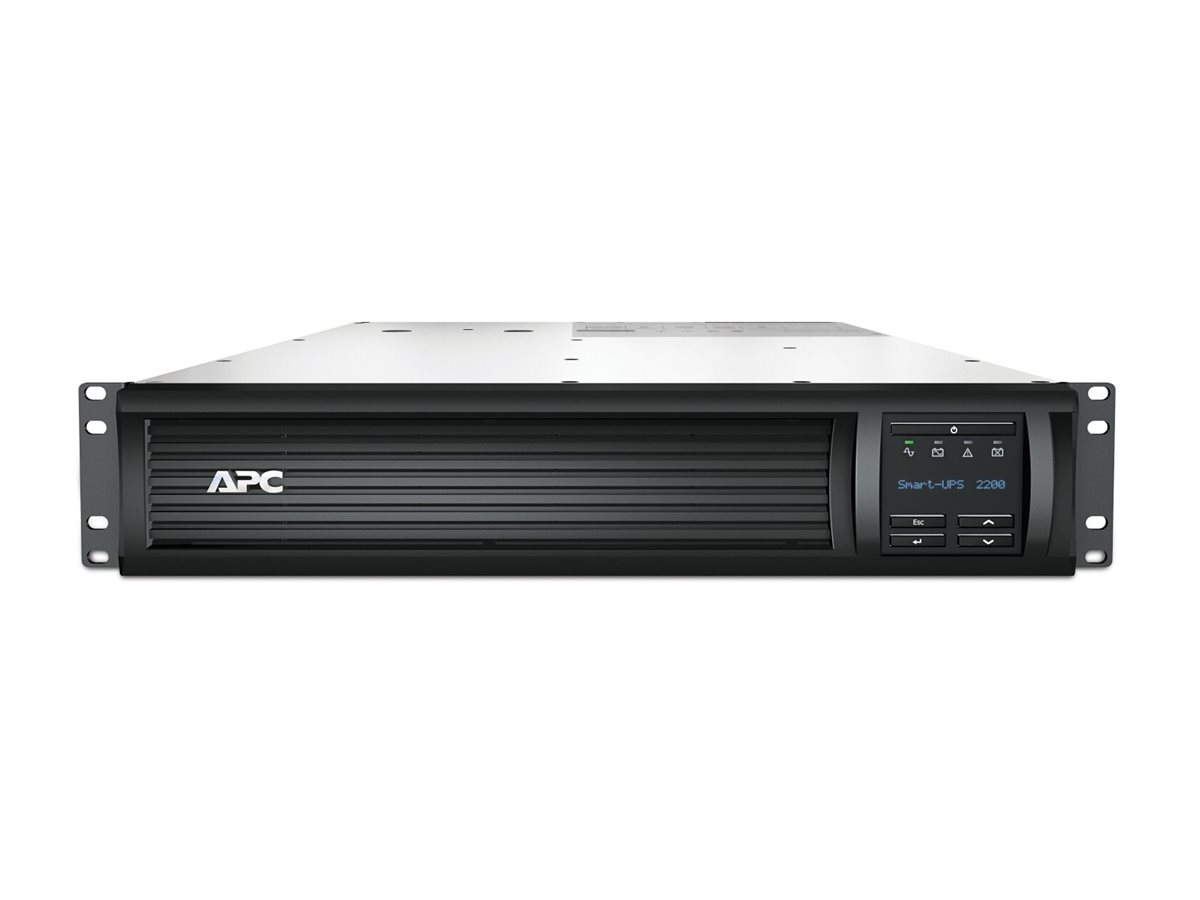

APC Smart-UPS 2200VA LCD RM UPS
APC Smart-UPS 2200VA LCD RM - UPS (rackversion) - AC 230 V - 1980 Watt - 2200 VA - Ethernet, RS-232, USB - output-stikforbindelser: 9 - 2U - med APC UPS Network Management Card - for P/N: AR3103SP, AR3106SP, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
18 635,00DKK14 908,00DKK excl. VAT
-
Product no 991254220
Model SMT2200RMI2UNC
Brand APC
EAN 0731304327691
Weight 55 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS 2200VA LCD RM - UPS - 1980 Watt - 2200 VA - med APC UPS Network Management Card |
| Enhedstype | UPS - rackversion |
| Rackstørrelse | 2U |
| Vægt | 42.22 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 5% |
| Strømkapacitet | 1980 Watt / 2200 VA |
| Input-stik | 1 |
| Output-stikforbindelser | 8 x power IEC 60320 C13<br>1 x strøm IEC 60320 C19 |
| Batteri | Blysyre |
| Driftstid (op til) | 5.4 min ved fuld belastning |
| Netværk | Ethernet, RS-232, USB |
| Udstyr inkluderet | Stativmonteringsskinner, temperatur sonde |
| Dimensioner (B x D x H) | 48 cm x 68.3 cm x 8.6 cm |
| Producentgaranti | 3 års garanti |
| Bundtet med | APC UPS Network Management Card |
| Designet for | P/N: AR2487G, AR3100W, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3140G, AR3140W, AR3150W, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A |
| General | |
|---|---|
| Bundled with | APC UPS Network Management Card |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 286 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Output Voltage | AC 230 V ± 5% - 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1980 Watt / 2200 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 1 x power IEC 60320 C19 |
| Surge Energy Rating | 375 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 5.4 min at full load | 16 min at half load |
| Technology | Lead acid |
| Transfer Time | 4 ms |
| Networking | |
| Remote Management Interface | Ethernet, RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x management (RS-232) - RJ-45 | 1 x management (USB) - 4 pin USB Type B | Management (Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | Serial cable - external | USB cable - external | Power cable - external - 2 m |
| Compliant Standards | GS, VDE, IEC 62040-2, IRAM, RoHS, WEEE, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter |
| Included Accessories | Rack mounting rails, temperature probe |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 68.3 cm |
| Height | 8.6 cm |
| Weight | 42.22 kg |
| Width | 48 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 98 cm |
| Shipping Height | 25.4 cm |
| Shipping Weight | 49.63 kg |
| Shipping Width | 60 cm |
| Compatibility Information | |
| Designed For | P/N: ACDC2513, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR31 |
