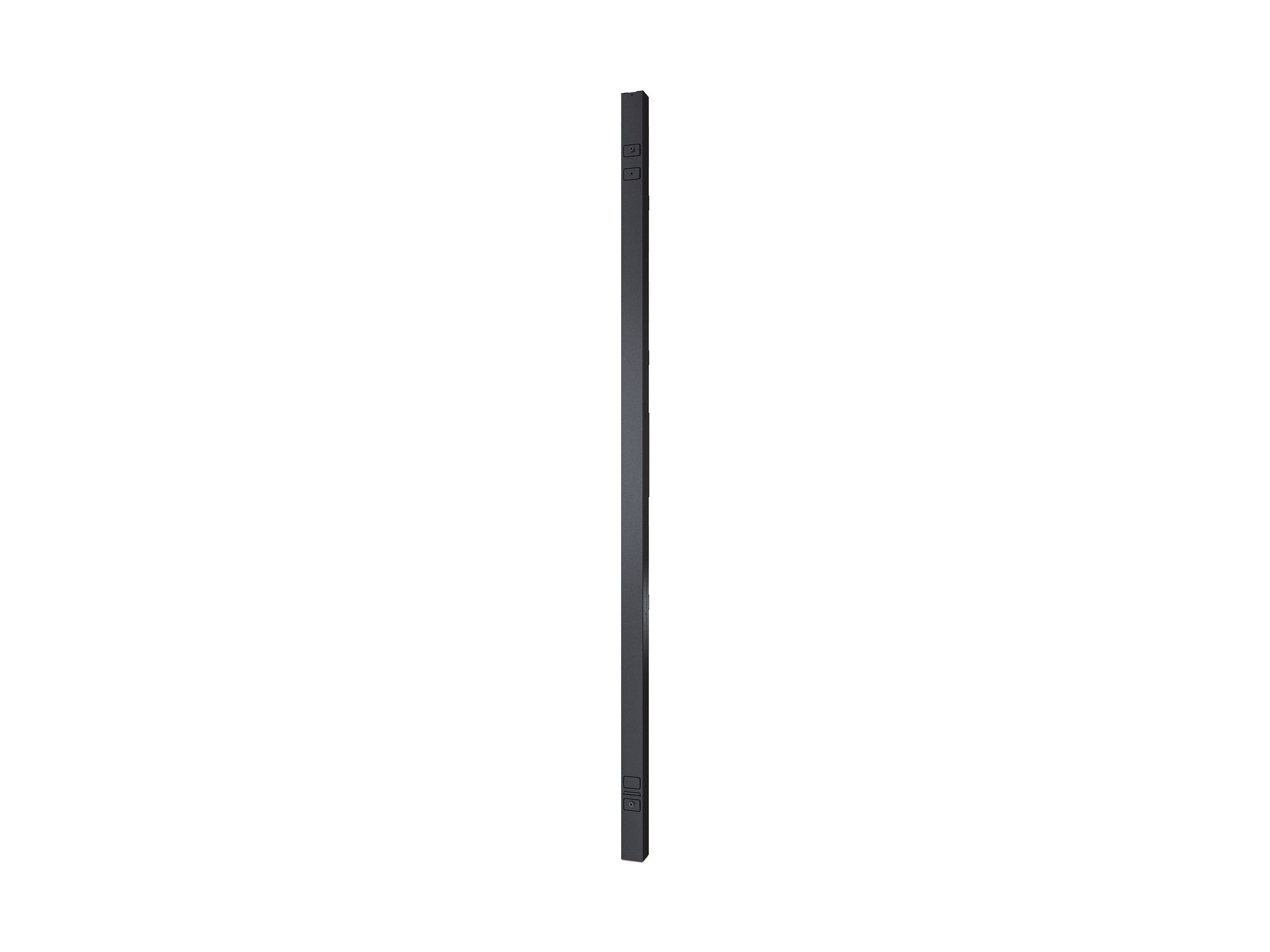

APC Metered Rack PDU ZeroU 2G Strømfordelingsenhed 24-stik 32A Sort
APC Metered Rack Power Distribution Units (PDU'er) giver aktiv måling for at muliggøre energioptimering og kredsløbsbeskyttelse. Brugerdefinerede alarmtærskler mindsker risikoen med lokale og eksterne alarmer i realtid, der advarer om potentiel overbelastning af kredsløb. Målte rack-PDU'er giver data om strømudnyttelse, så datacenterledere kan træffe informerede beslutninger om belastningsbalancering og dimensionering af IT-miljøer for at sænke de samlede ejeromkostninger. Metered Rack PDU'er omfatter reel strømovervågning, en temperatur-/fugtsensorport, låsbare IEC-stikdåser og strømafbrydere med ultra lav profil. Brugere kan få adgang til og konfigurere Metered Rack PDU'er via sikre web-, SNMP- eller telnet-grænseflader, som suppleres af APC's centraliserede administrationsplatforme ved hjælp af InfraStruxure central, drift, kapacitet og energieffektivitet.
-
Product no 989574107
Model AP8453
Brand APC
EAN 0731304317555
Weight 18.69 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Metered Rack PDU ZeroU 2G - strømfordelingsenhed |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Rackstørrelse | 0U |
| Vægt | 8.21 kg |
| Indgangspænding | AC 200/208/230 V |
| Udgangspænding | AC 230 V |
| Input-stik | 1 x strøm IEC 60309 32A |
| Output-stikforbindelser | 21 x power IEC 60320 C13<br>3 x strøm IEC 60320 C19 |
| Netværk | Ethernet |
| Protokol til fjernadministration | SNMP, Telnet |
| Farve | Sort |
| Dimensioner (B x D x H) | 5.6 cm x 5.1 cm x 182.9 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: AR3357X674, SMC1000I-2UC, SMC1000IC, SMC1500I-2UC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW |
| General | |
|---|---|
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 32A |
| Input Voltage | AC 200/208/230 V |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Output Connectors Details | 21 x power IEC 60320 C13 | 3 x power IEC 60320 C19 |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Telnet |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, REACH |
| Features | LCD display, firmware upgradable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 5.1 cm |
| Height | 182.9 cm |
| Weight | 8.21 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.7 cm |
| Shipping Height | 203.7 cm |
| Shipping Weight | 10.48 kg |
| Shipping Width | 16.3 cm |
| Compatibility Information | |
| Designed For | P/N: AP7950B, AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3350SP, AR3350W, AR |
