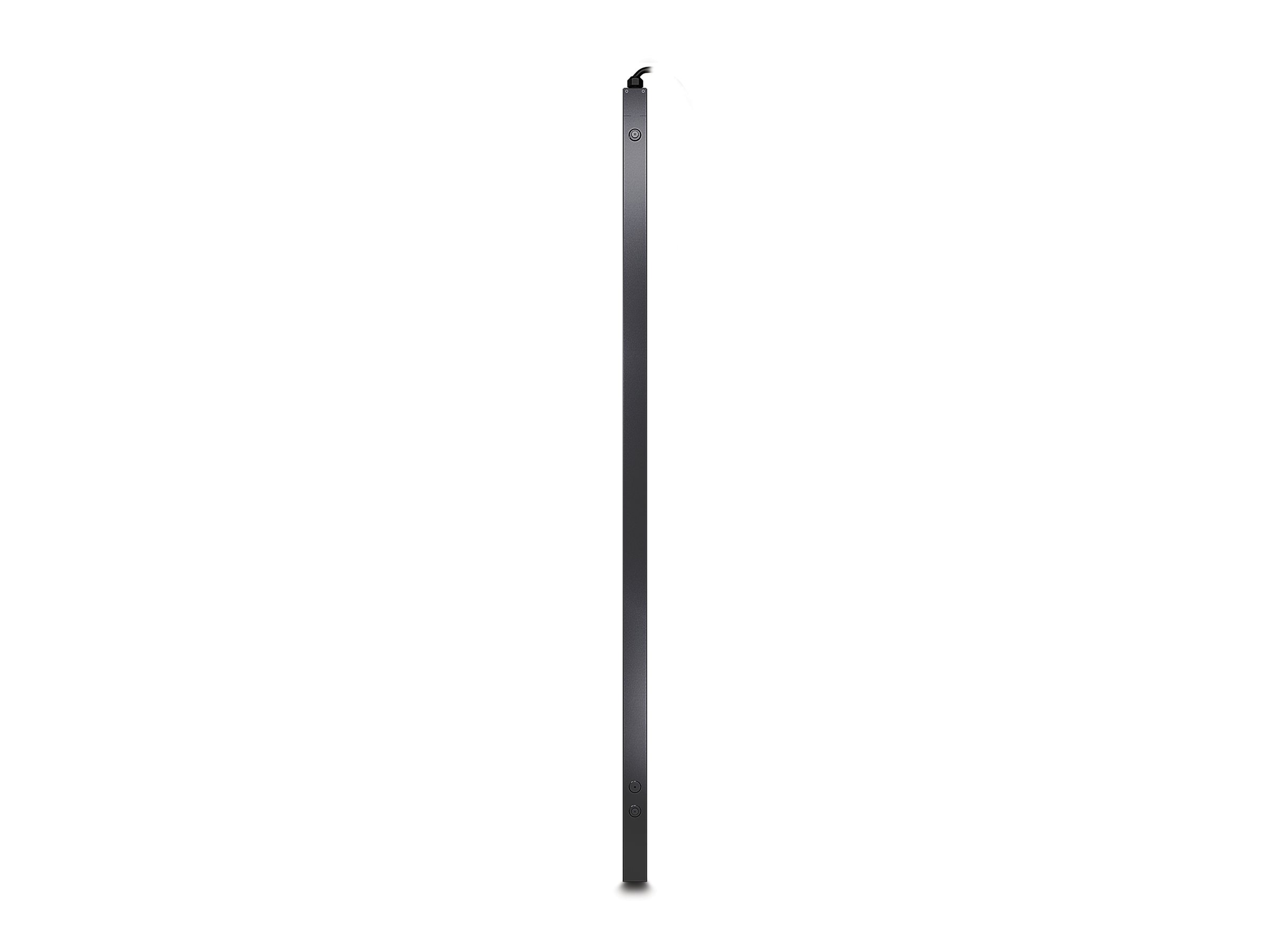

APC Metered Rack PDU Strømfordelingsenhed 42-stik Sort
APC Metered Rack PDU - Strømfordelingsenhed (rackversion) - AC 400 V - 11 kW - Ethernet 10/100, RS-232 - output-stikforbindelser: 42 (power IEC 60320 C13, IEC 60320 C19) - 0U - sort - for P/N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
-
Product no 987747191
Model AP8881
Brand APC
EAN 0731304277071
Weight 8.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Metered Rack PDU - strømfordelingsenhed - 11 kW |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Rackstørrelse | 0U |
| Vægt | 6.4 kg |
| Indgangspænding | AC 400 V |
| Udgangspænding | AC 230 V |
| Strømkapacitet | 11 kW |

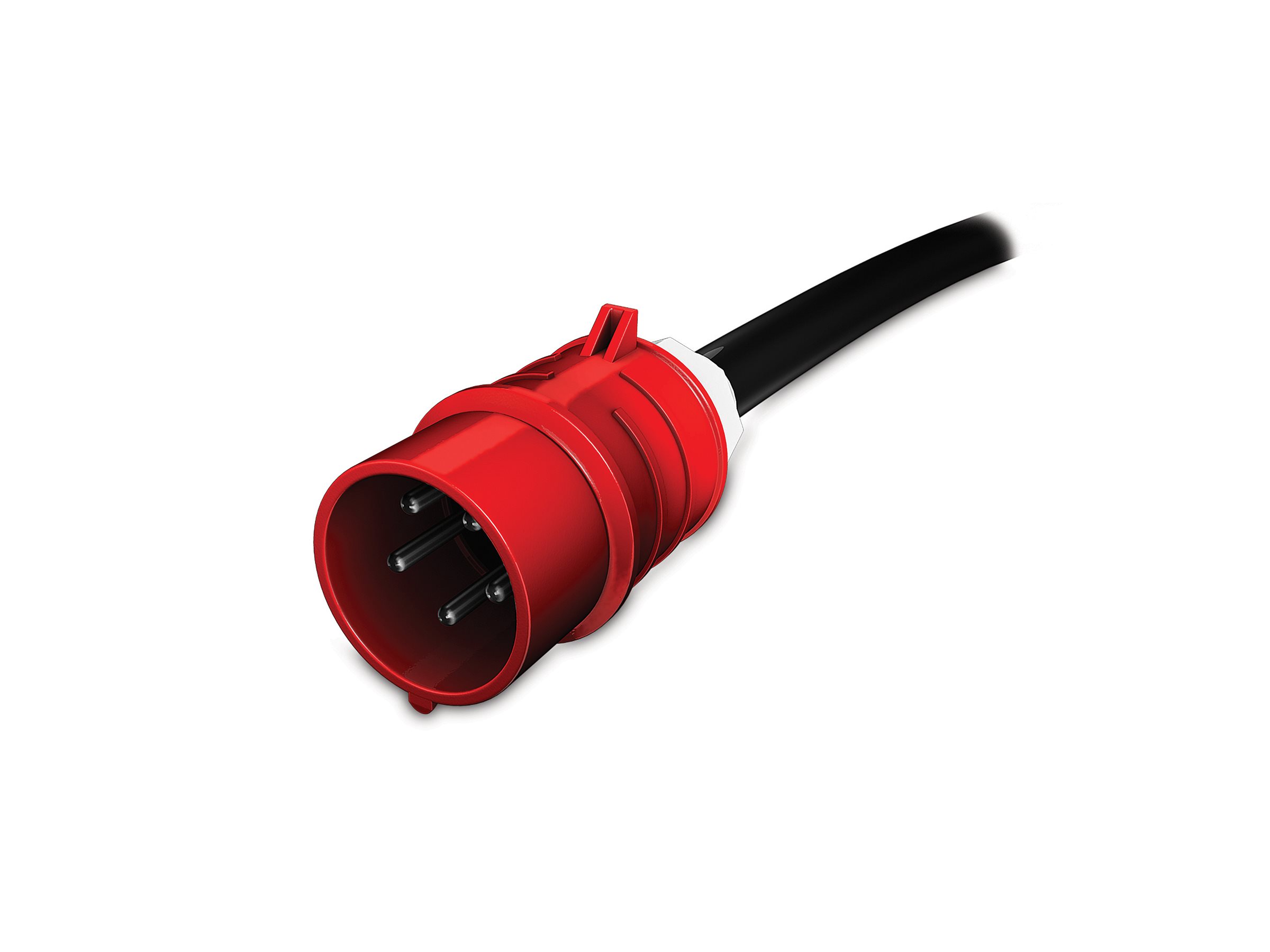

| Input-stik | Strøm IEC 60309 16A, strøm IEC 60309 20A |
| Output-stikforbindelser | 36 x power IEC 60320 C13<br>6 x strøm IEC 60320 C19 |
| Netværk | Ethernet 10/100, RS-232 |
| Protokol til fjernadministration | SNMP, Telnet, HTTP |
| Farve | Sort |
| Dimensioner (B x D x H) | 5.6 cm x 4.4 cm x 179 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: AR3357X674, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVUS, SMX2200RMLVUS, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW |
| General | |
|---|---|
| Color | Black |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60309 16A, power IEC 60309 20A |
| Input Voltage | AC 400 V |
| Output Voltage | AC 230 V |
| Power Capacity | 11 kW |
| Power Output Connectors Details | 36 x power IEC 60320 C13 | 6 x power IEC 60320 C19 |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x management (RS-232) |
| Miscellaneous | |
| Cables Included | Power cable 1.8 m | Serial cable - external |
| Compliant Standards | VDE, IEC 60950, CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH |
| Features | LCD display |
| Rack Mounting Kit | Included |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 5 °C |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 179 cm |
| Weight | 6.4 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 10.7 cm |
| Shipping Height | 200 cm |
| Shipping Weight | 8 kg |
| Shipping Width | 16.2 cm |
| Compatibility Information | |
| Designed For | P/N: AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3 |
