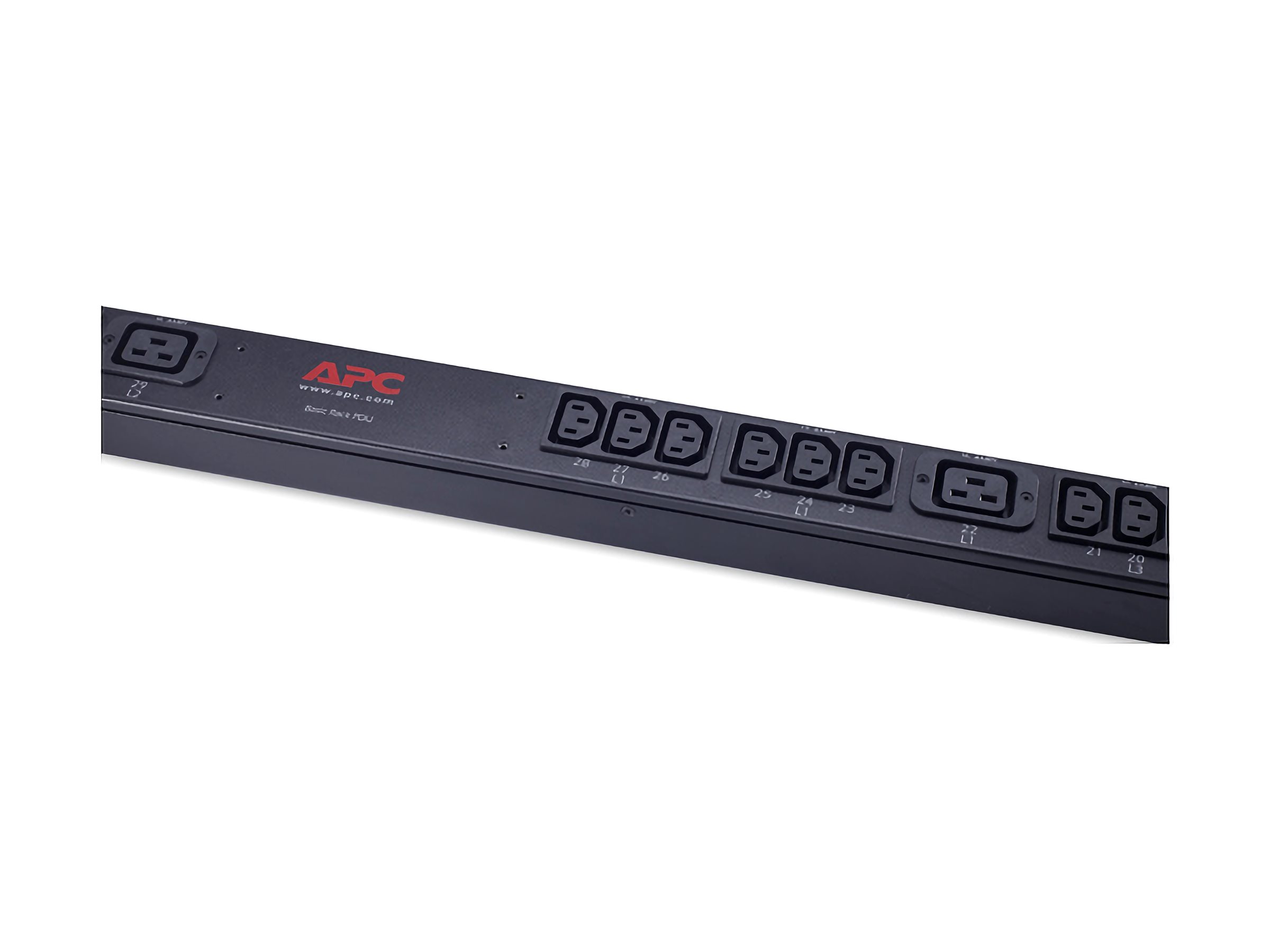

APC Basic Rack PDU Zero U Strømfordelingsenhed 42-stik 16A Sort
APC Basic Rack PDU Zero U - Strømfordelingsenhed (rackversion) - AC 230/400 V - tre faser - input: IEC 60309 16A - output-stikforbindelser: 42 (power IEC 60320 C13, IEC 60320 C19) - 0U - sort - for P/N: SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS

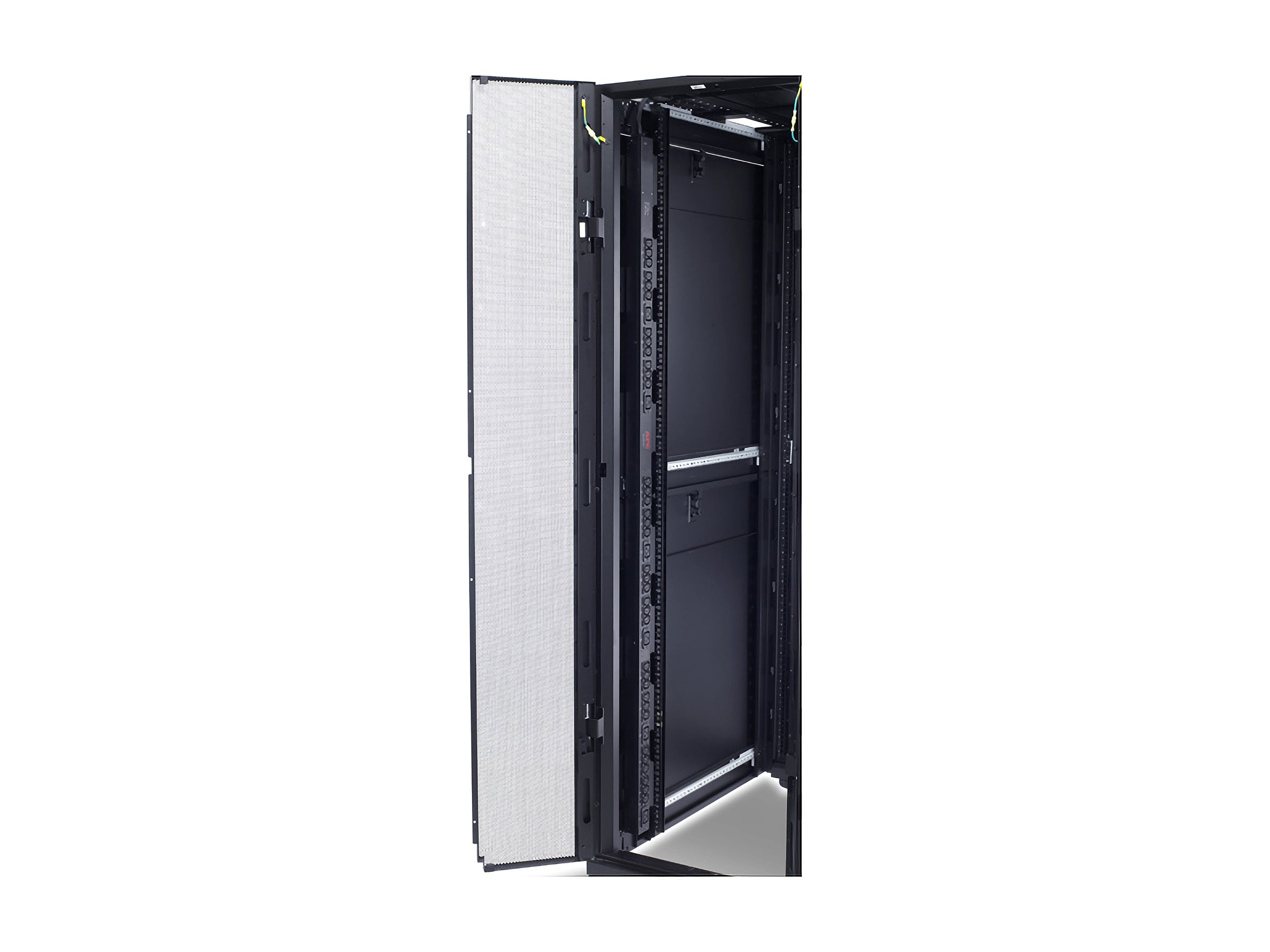

APC tilbyder et bredt udvalg af Basic Rack Power Distribution Units (PDU'er), som giver brugerne mulighed for at distribuere strømudtag til rackmonteret udstyr. Der findes vandrette og lodrette enheder samt en række forskellige strømindgange og -udgange, der passer til de fleste strømmiljøer. APC tilbyder nu Basic Rack PDU'er, der monteres lodret uden brug af værktøj i den bageste kanal i en NetShelter VX.
-
Product no 987996670
Model AP7557
Brand APC
EAN 0731304254102
Weight 8.54 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Basic Rack PDU Zero U - strømfordelingsenhed |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Rackstørrelse | 0U |
| Vægt | 5.5 kg |
| Indgangskabler | Tre faser |
| Indgangspænding | AC 230/400 V |
| Udgangspænding | AC 230 V |

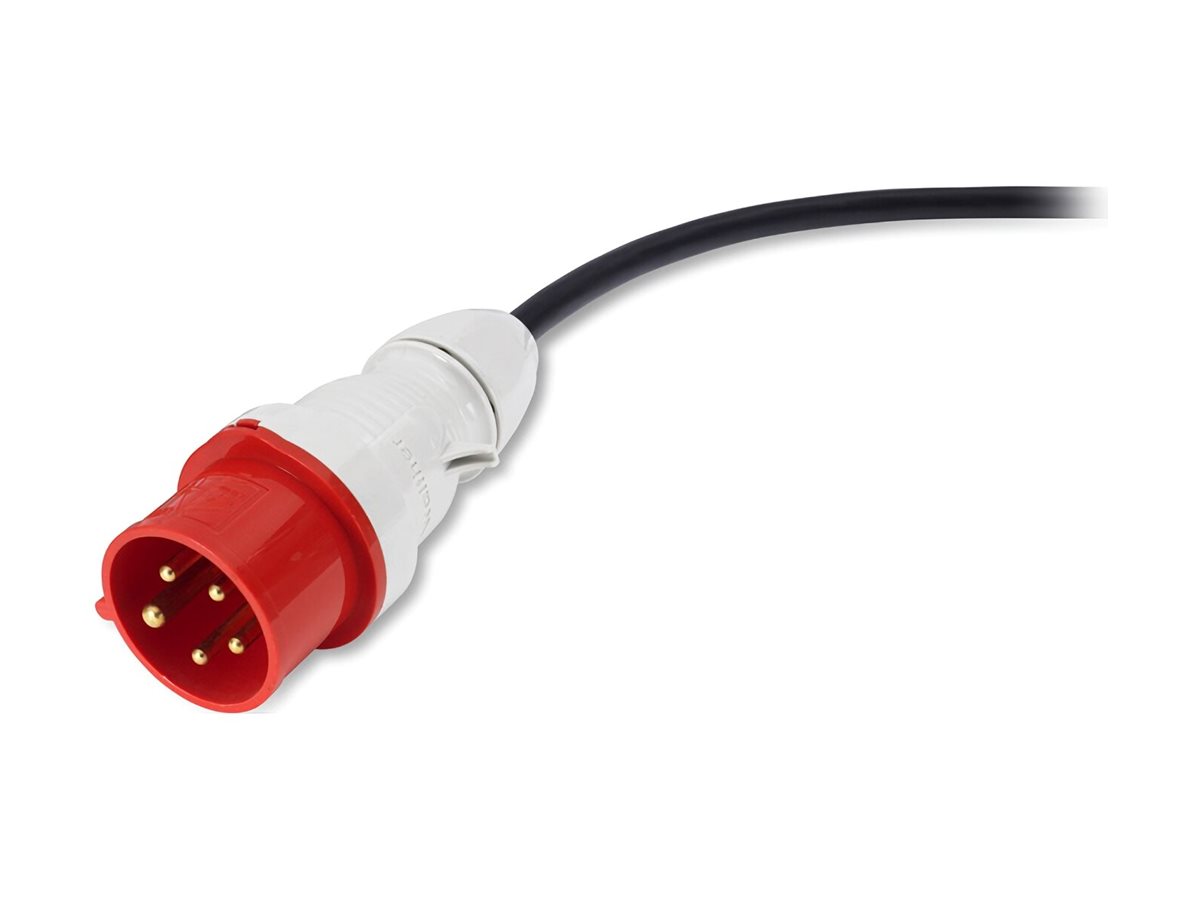

| Input-stik | 1 x strøm IEC 60309 16A |
| Output-stikforbindelser | 6 x strøm IEC 60320 C19<br>36 x power IEC 60320 C13 |
| Farve | Sort |
| Dimensioner (B x D x H) | 5.6 cm x 4.4 cm x 162 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: AR3357X674, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2KR2UX145, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW |
| General | |
|---|---|
| Color | Black |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60309 16A |
| Input Voltage | AC 230/400 V |
| Input Wiring | 3-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 230 V |
| Power Output Connectors Details | 6 x power IEC 60320 C19 | 36 x power IEC 60320 C13 |
| Miscellaneous | |
| Cables Included | Power cable 91 cm |
| Compliant Standards | C-Tick, GOST, VDE, CCC, MIC |
| Rack Mounting Kit | Included |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 162 cm |
| Weight | 5.5 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.7 cm |
| Shipping Height | 213 cm |
| Shipping Weight | 8.9 kg |
| Shipping Width | 15.2 cm |
| Compatibility Information | |
| Designed For | P/N: AP7950B, AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3 |
