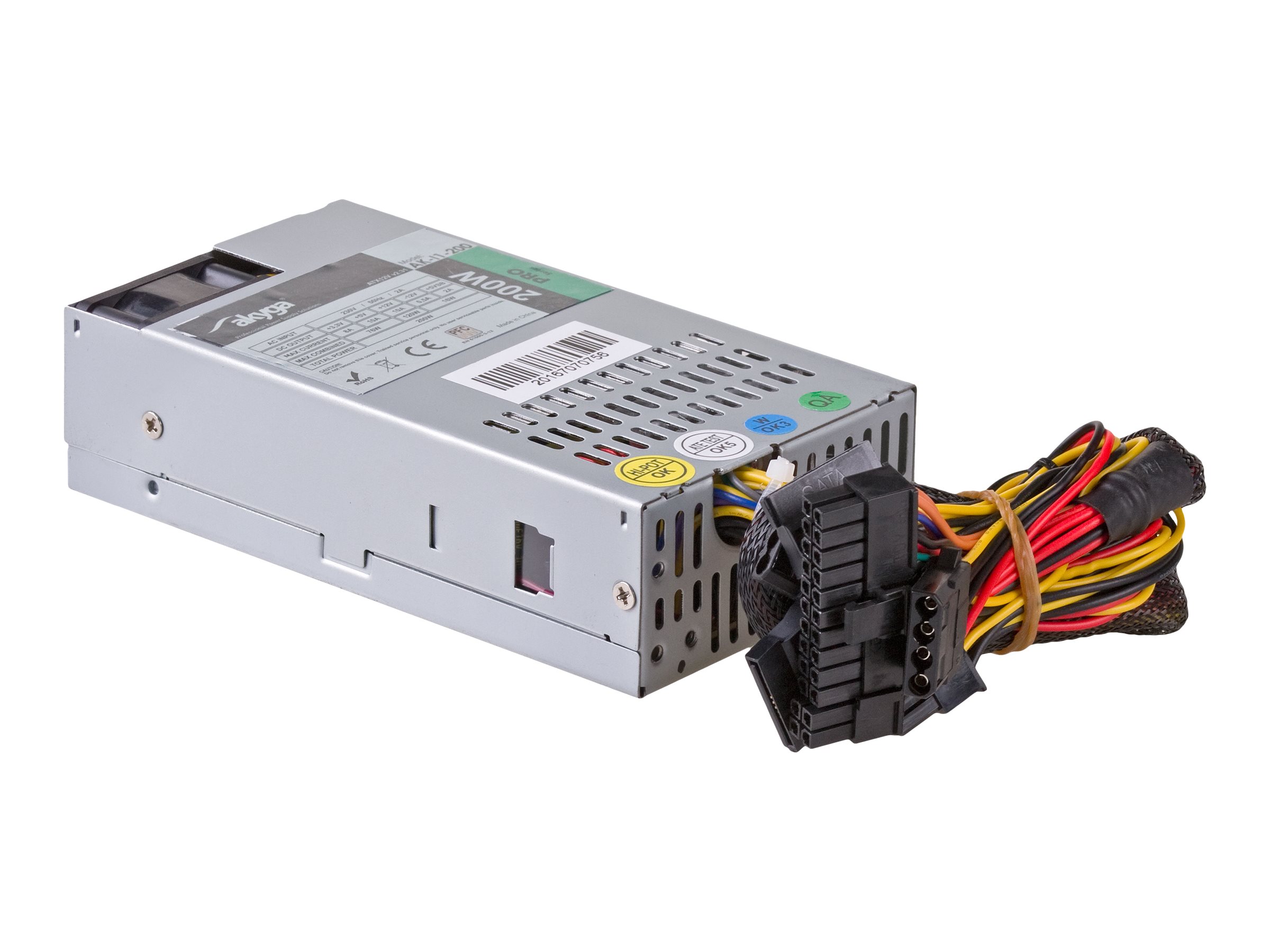

Akyga Pro Series AK-I1-200 Strømforsyning 200Watt
Akyga Pro Series AK-I1-200 - Strømforsyning (intern) - ITX - AC 230 V - 200 Watt - PFC - grå
255,00DKK204,00DKK excl. VAT
-
Product no 993960278
Model AK-I1-200
Brand Akyga
EAN 5901720132147
Weight 0.58 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Akyga Pro Series AK-I1-200 - strømforsyning - 200 Watt |
| Enhedstype | Strømforsyning - Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ITX |
| Vægt | 580 g |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, +12 V |
| Strømkapacitet | 200 Watt |
| Output Current | +3.3V - 8 A<br>+5V - 10 A<br>+12V - 10 A |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 1 x strøm 24 pin<br>1 x effekt ATX12V 4-pin stik<br>2 x 4-PIN intern strøm<br>2 x 15 pin Serial ATA strøm |
| Kølesystem | 40mm blæser |
| Farve | Grå |
| Dimensioner (B x D x H) | 8.15 cm x 15 cm x 4 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Color | Gray |
| Device Type | Power supply - Power Factor Correction (PFC) - internal |
| PSU Form Factor | ITX |
| Specification Compliance | ITX |
| Power Device | |
| Efficiency | 70% |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Output Current | +3.3V - 8 A | +5V - 10 A | +12V - 10 A |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 200 Watt |
| Power Output Connectors Details | 1 x power 24 pin | 1 x power 4 pin ATX12V connector | 2 x 4 pin internal power | 2 x 15 pin Serial ATA power |
| Miscellaneous | |
| Compliant Standards | RoHS, REACH |
| Cooling System | 40 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 4 cm |
| Weight | 580 g |
| Width | 8.15 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 21.1 cm |
| Shipping Height | 4.1 cm |
| Shipping Weight | 587 g |
| Shipping Width | 10.1 cm |
