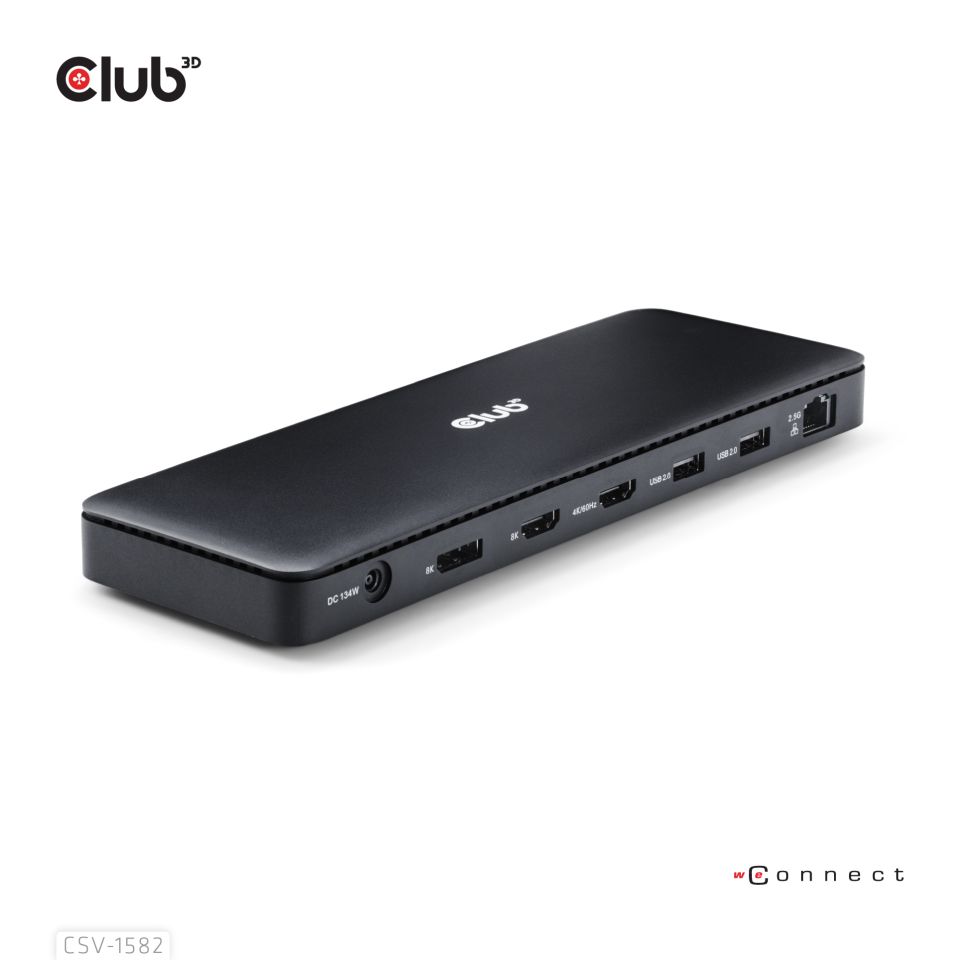

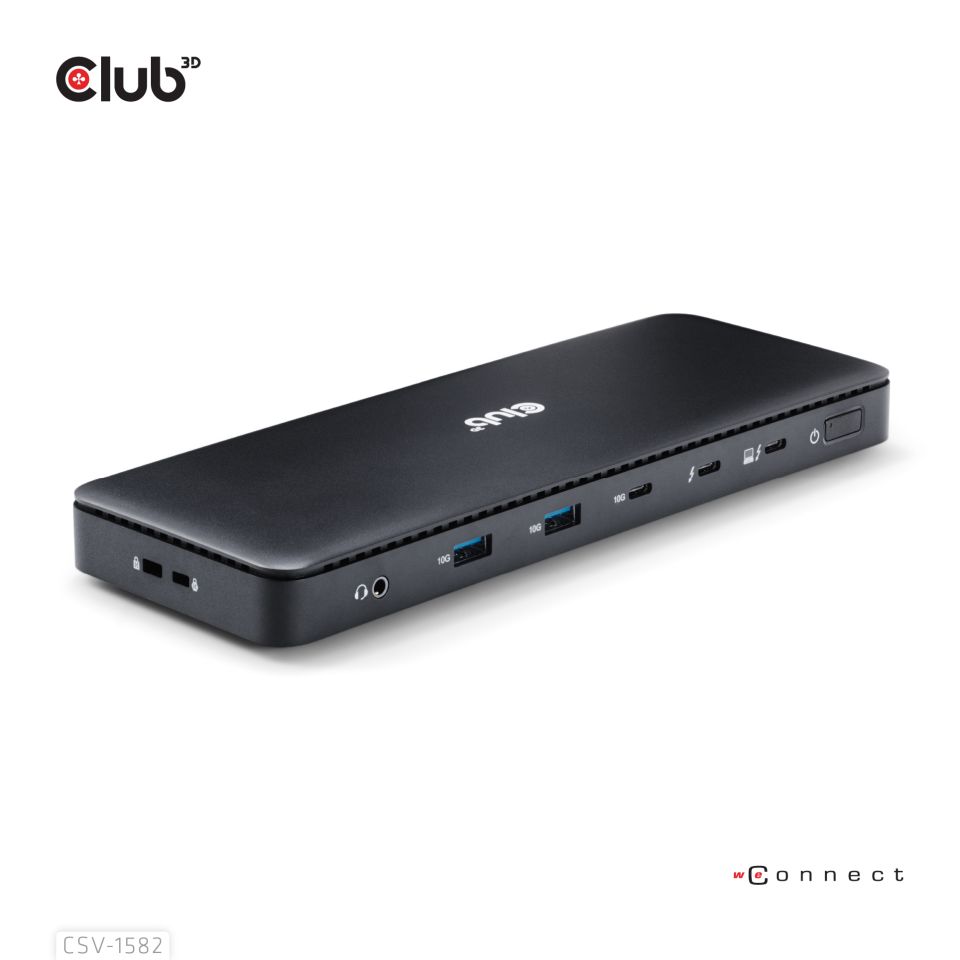

Club 3D CSV-1582 12-in-1 Thunderbolt 4 Dockingstation
Club 3D - Dockingstation - Thunderbolt 4 - HDMI, DP - 2.5 GbE - 4 x USB-A, 1 x USB-C, 1 x Thunderbolt - 96 Watt charging
1 440,00DKK1 152,00DKK ekskl. moms
-
Varenummer 1002206110
Model CSV-1582
Producent
EAN 8719214472955
Vægt 1.11 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Produktbeskrivelse | Club 3D - dockingstation - Thunderbolt 4 |
| Produkttype | Dockingstation |
| Docking-interface | Thunderbolt 4/USB-C |
| Videointerfacer | 2 x HDMI, DP |
| Dimensioner | 22.5 x 8.5 x 2.2 cm |
| Vægt | 392 g |
| Netværk | 2.5 Gigabit Ethernet |
| Effekt | Strømforsyningsadapter AC 100-240 V 120 Watt Strømforsyning |
| Features: | |
| • Adopting Goshen Ridge solution | |
| • Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC. | |
| • Slim compact aluminum design | |
| • Thunderbolt™ 4 Certified | |
| • Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3/DP-Alt-mode based PC's and Macs™ utilizing MacOS™ 11 and later versions (Limitations can vary on different Apple proprietary Silicon). | |
| • Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TB3, USB4, DP™ Alt mode, USB protocol | |
| • Allow to output single 8K30Hz, dual 4K/60Hz or triple (4K/60Hz*3) displays with extended desktop displays on Windows based systems | |
| • RJ45 supports 10M/100M/1000M/2.5G bandwidth | |
| • 1x Thunderbolt™ 4 downstream port, allow you to cascade Thunderbolt™ devices | |
| • Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock | |
| • Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices | |
| • Support TB4/USB4/TB3/DP-Alt-mode Hosts | |
| • Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space) | |
| Available Interfaces | |
| Upstream: 1x | |
| - Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™3, USB4, DP Alt mode, USB protocol | |
| - Support TB4/USB4/TB3/DP-Alt-mode Hosts | |
| - Support max. 96Watt Host charging, 5V/9V/15V@3A,[email protected] | |
| Downstream: | |
| Stream 1: | |
| - 1x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™4, Thunderbolt™3, USB4, DP Alt mode, USB protocol | |
| - Allow you to cascade Thunderbolt™ devices | |
| - Support max 8K30Hz or dual 4K60Hz video | |
| - Thunderbolt™ 4 port supports 15W downstream charging for connected device(The port does not support PD charging) | |
| Stream 2： DisplayPort™: | |
| - Support max 8K/30Hz | |
| - Support DP1.4 Specification | |
| - Support DPCP | |
| - Support RGB, YCbCr444, YCbCr422, YCbCr420 | |
| - Support 8/10/12 bit deep color | |
| - Support HDR | |
| HDMI1(Close to DP)： | |
| - Support max 8K/30Hz | |
| - Support HDCP 1.4&2.2 | |
| - Support RGB, YCbCr444, YCbCr422, YCbCr420 | |
| - Support 8/10/12 bit deep color | |
| - Support HDR | |
| Stream 3： HDMI™2(Close to USB2.0) | |
| - Support max 4K/60Hz | |
| - Support HDCP 1.4&2.2 | |
| - Support RGB, YCbCr444, YCbCr422, YCbCr420 | |
| - Support 8/10/12 bit deep color | |
| - Support HDR | |
| - Among all streams, max output 2 streams simultaneously, support output dual 4K/60Hz (or 8K/30Hz+4K/30Hz) or triple(4K/60Hz*3) displays with extended desktop displays on Windows system | |
| - DP™ and HDMI™1 Port output the same pictures on Mac OS system | |
| Note： | |
| The actual resolution supported is determined by the host and the Display together. | |
| Other Connections : | |
| 1x USB3.2 Gen2 Type-C | |
| - Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions | |
| - Support max 5V/1.5A downstream charging | |
| - Support short-circuit, over-current protection | |
| - Support reversible connection | |
| 2x USB3.2 Type-A Gen2 (close to USB-C 10G) | |
| - Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions | |
| - Support max 900mA downstream charging per port | |
| - Support short-circuit, over-current protection | |
| 2x USB2.0 Gen1 Type-A(close to RJ45) | |
| - Support max 480Mbps data transmission | |
| - Max 500mA downstream charging per port | |
| - Support short-circuit, over-current protection | |
| 1x Ethernet RJ45 | |
| - Support Gigabit Ethernet,10M/100M/1000M/2.5Gbps | |
| - Support Wake-On-LAN and Wake-On-WAN | |
| - Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data. | |
| 1x Audio JACK 3.5mm | |
| - Support 24/32-bit, 44.1/48/96/192/384KHz Sample Rate | |
| - Support Stereo output and microphone input | |
| - Automatic detection switch to CTIA/MTP mode | |
| 1x DC Power Jack | |
| - Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices | |
| - Used to connect 21V 134W DC power supply | |
| - Max 124W power for host and the DOCK and 10W is for buffer power | |
| - Max 96W for host charging | |
| - Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space) | |
| OS Support: | |
| • Windows 10 or upwards, Mac 13.5.2 (Limitations can vary on different Apple proprietary Silicon) | |

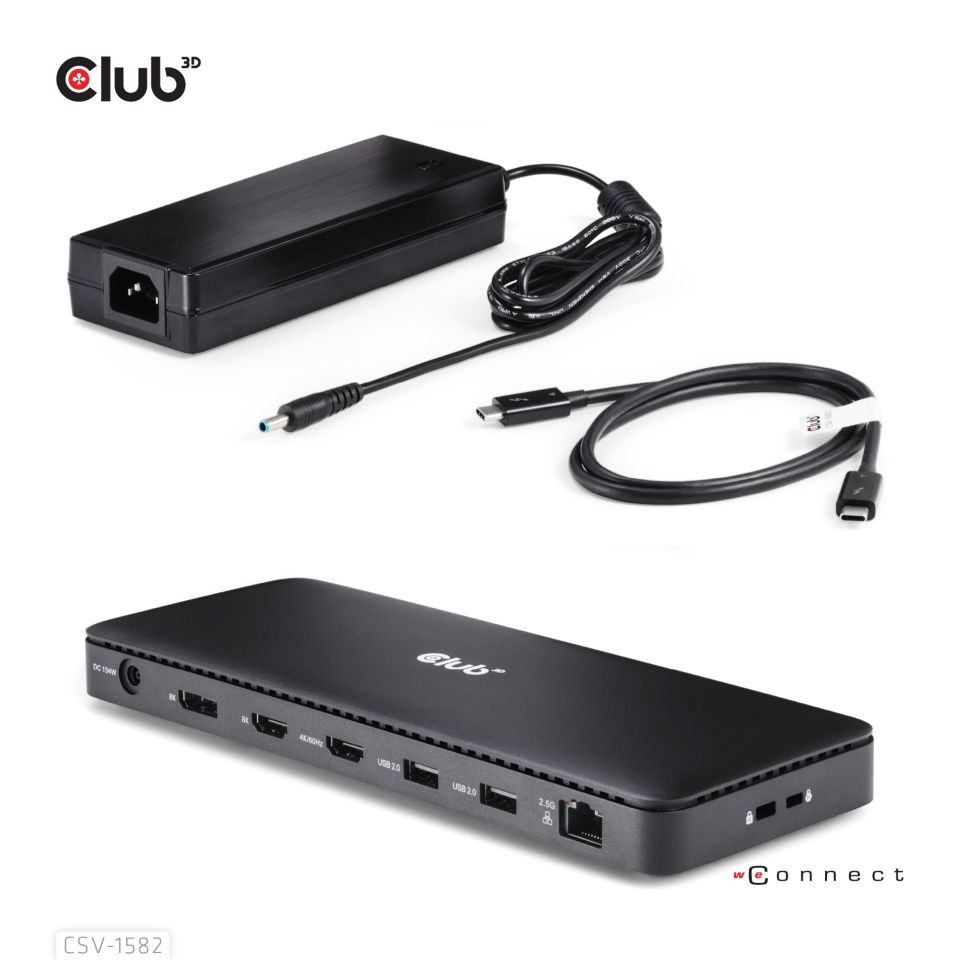

| In the Box: | |
| • CSV-1582 Thunderbolt™ 4 Certified 12-in-1 Docking Station | |
| • Power Adapter 21V6.4A(134Watt) | |
| • TB4 Cable 0.8m / 2.62 ft M/M(for connection to host) | |
| • QR code for the QIG(Quick Installation Guide) | |
| Supported resolutions: | |
| • see Quick Install Guide(QIG) | |
| Other info: | |
| • Box size: 27.5 x 12.5 x 7.7 cm / 10.83 x 4.92 x 3.03" | |
| • Dock dimensions: 22.5 x 8.5 x 2.2 cm / 8.86 x 3.35 x 0.86" | |
| • Power Supply dimensions: 16 x 6.5 x 3 cm / 6.3 x 2.56 x 1.18" | |
| • Power Cable Length approx.: 1 m / 3.28 ft | |
| • Bio Degradable Bag size: 16 x 24 cm / 6.3 x 9.45" | |
| • Bio Degradable Bag Weight: 4 gr./ 0.14 oz | |
| • TB4 Cable 0.8m / 2.62 ft | |
| • TB4 Cable Weight: 34 gr./ 1.2 oz (Incl. Bio Degradable Bag) | |
| • Product Weight: 392 gr / 13.83 oz | |
| • Power Supply Weight: 595 gr / 20.99 oz (depending on Power plug) | |
| • Box Weight: 147 gr / 5.18 oz | |
| • Total Weight: 1172 gr / 41.34 oz | |
| • Meets ROHS, FCC, and CE EMI requirements |
