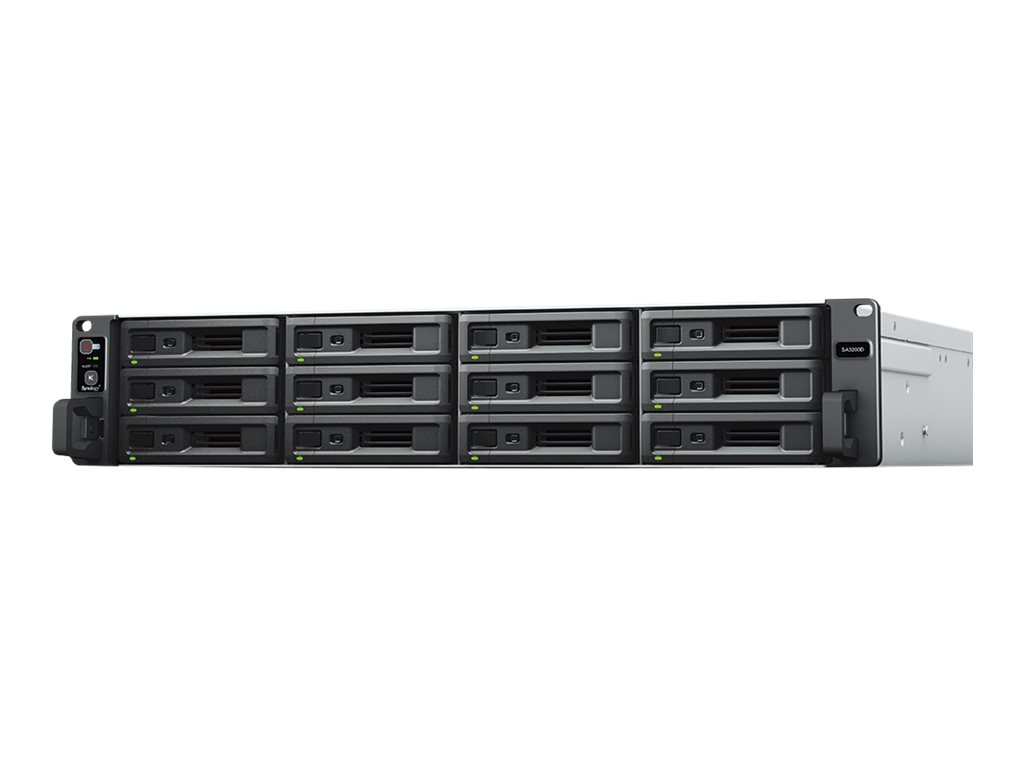

Synology SA3200D 12Moduler
Synology SA3200D - NAS-server - 12 bays - rackversion - RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
63 171,00DKK50 536,80DKK ekskl. moms
Synology SA3200D har en arkitektur med to controllere, der sikrer, at drift og centrale forretningsfunktioner ikke påvirkes af en katastrofe eller uplanlagt hændelse, der sætter kritiske systemer offline. Redundansmekanismen for hardware udnytter controllere, strømforsyninger og blæsere til at forhindre en enkelt fejl. SA3200D, der drives af det intuitive og funktionsrige operativsystem DiskStation Manager (DSM), leverer omfattende beskyttelse af netværk, filtjenester og applikationer.
-
Varenummer 995649797
Model SA3200D
Producent Synology
EAN 4711174723713
Vægt 20 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Produktbeskrivelse | Synology SA3200D - NAS-server |
| Enhedstype | NAS-server |
| Vært Tilslutning | Gigabit Ethernet / 10 Gigabit Ethernet |
| Pakningstype | Rackversion - 2U |
| Maks. antal understøttet | 192 TB |
| Installeret udstyr/antal moduler | 0 (installeret) / 12 (maks.) |
| Dimensioner (B x D x H) | 48.2 cm x 72.4 cm x 8.8 cm |
| Vægt | 19.7 kg () |
| Processor | 2 x Intel Xeon D-1521 2.4 GHz (Quad-Core) |
| Controller for lagring | RAID RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 |
| Netværk | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Understøttede IP Kameraer | 100 |
| RAM | 16 GB |
| Effekt | AC 120/230 V (50/60 Hz) |
| Systemkrav | Microsoft Windows 7 eller senere, Apple MacOS X 10.11 eller nyere |
| Producentgaranti | 5 års garanti |
| Generelt | |
|---|---|
| Bredde | 48.2 cm |
| Dybde | 72.4 cm |
| Enhedstype | NAS-server |
| Højde | 8.8 cm |
| Installeret udstyr/antal moduler | 0 (installeret) / 12 (maks.) |
| Maks. antal understøttet | 192 TB |
| Pakningstype | Rackversion - 2U |
| Totale lagringskapacitet | 0 GB |
| Vægt | 19.7 kg () |
| Vært Tilslutning | Gigabit Ethernet / 10 Gigabit Ethernet |
| Processor / Hukommelse | |
| Antal installerede processorer | 2 x Intel Xeon D-1521 2.4 GHz |
| Antal kerner | Quad-Core |
| Egenskaber | ECC |
| Maks. antal understøttet | 2 |
| Max Turbo Speed | 2.7 GHz |
| RAM | 16 GB (installeret) / 128 GB (understøttet) - DDR4 |
| Controller for lagring | |
| RAID-niveau | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Type | RAID |
| Netværk | |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Egenskaber | Firewallbeskyttelse, VPN support, understøttet af LDAP, væk på LAN (WOL), analyse af antivirus, Høj rådighedsgrad, download klient, anti-malware beskyttelse, Access Control List (ACL) support, e-mail server, nulstillingsknap, båndbreddekontrol, overv |
| Krypterings algoritme | AES-NI |
| Netværks/overføselsprotokol | PPTP, L2TP, iSCSI, SMTP, FTP, SMB, NFS, HTTPs |
| Netværkservicekompatibilitet | Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Protokol til fjernadministration | SNMP, Telnet, HTTPS, SSH, SMTP, LDAP |
| Sikkerhed DVR | |
| Kompressionsformat | H.264 |
| Understøttede IP Kameraer | 100 |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 2 x PCI Express 3.0 x8 |
| Interface | 4 x Ethernet 1000Base-T - RJ-45 | 2 x seriel - DB-9 | 2 x Ethernet 10Gb - RJ-45 |
| Udvidelses-båse | 12 (total) / 12 (fri) x hot-swap - 2.5" / 3.5" |
| Diverse | |
| Egenskaber | 4 indbyggede køleblæsere |
| Inkluderet tilbehør | Tilbehørspakke |
| Overensstemmelsesstandarder | VCCI, BSMI, CCC, FCC, RoHS, EAC, RCM |
| Effekt | |
| Antal installeret | 2 |
| Maks. antal understøttet | 2 |
| Nødvendig spænding | AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift | 417.48 Watt |
| Strømforsyning | 500 Watt |
| Programmer / Systemkrav | |
| OS nødvendig | Microsoft Windows 7 eller senere, Apple MacOS X 10.11 eller nyere |
| Producentgaranti | |
| Service & Support | Begrænset garanti - 5 år |
| Miljømæssige parametre | |
| Fugtighedsgrad ved brug | 5 - 95% |
| Lydudbredelse | 51.3 dBA |
| Maks. driftstemperatur | 35 °C |
| Min. driftstemperatur | 0 °C |
.jpg)
Synology SA Series
Scalable enterprise storage for high performance
.png)
Scale up to more than 1.5 petabytes of raw capacity with the addition of up to 7 expansion units. The SA series can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.
.png)
Works with mainstream virtualisation systems
Optimised for virtualisation environments.
- Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimise computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Compliance with the ALUA industry standard allows hosts to identify optimised paths to increase data transfer performance and efficiency.
Btrfs: Next generation storage efficiency
The Btrfs file system introduces cutting-edge storage technologies and optimised snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
.gif)
.png)
With built-in dual 10GbE ethernet ports as well as a wide range of both Synology and third-party add-on cards (25GbE, QSFP+, Fibre Channel cards, low profile cards) provide high-speed network transmission to your enterprise storage.
.png)
- Automatic firmware updates through DSM means that HAT5300 drives always benefit from the latest enhancements.
- Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware.
- With over 400,000 hours of in-house validation testing, the HAT5300 series brings unmatched reliability to Synology deployments.
Who is using Synology?
Synology presents an inside look at how UK based production company 'Face TV' incorporated Synology products to improve workflow, storage and media redundancy as well as how Palmaz Vineyards uses all-flash and enterprise systems to enhance their winemaking process.
3:05
2:13
As we’re committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximise your return on investment.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Synology MailPlus
Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Active Backup Suite
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Microsoft 365, and Google Workspace.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication
