Varenummer 996608206
Model PEX8S1050
Producent StarTech.com
EAN 0065030888295
Vægt 0.67 kg

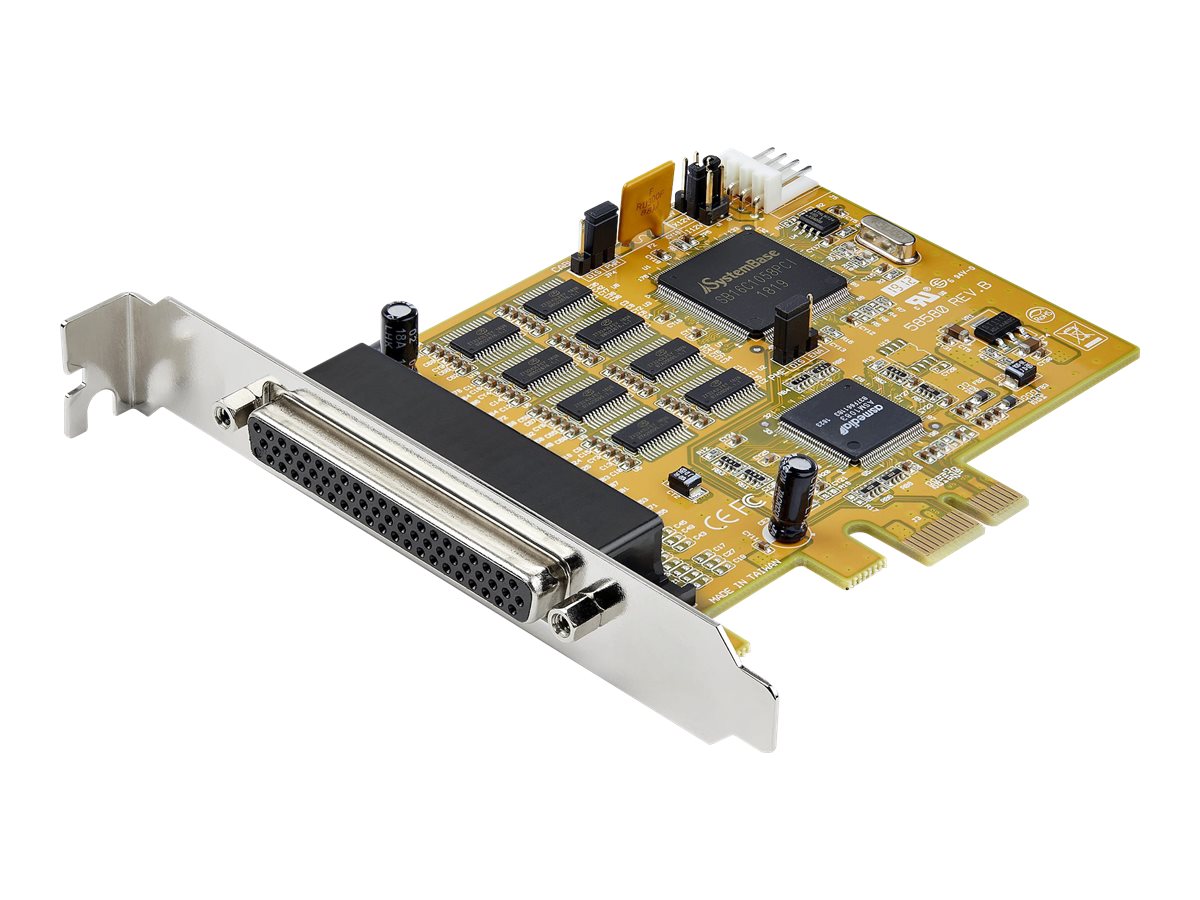

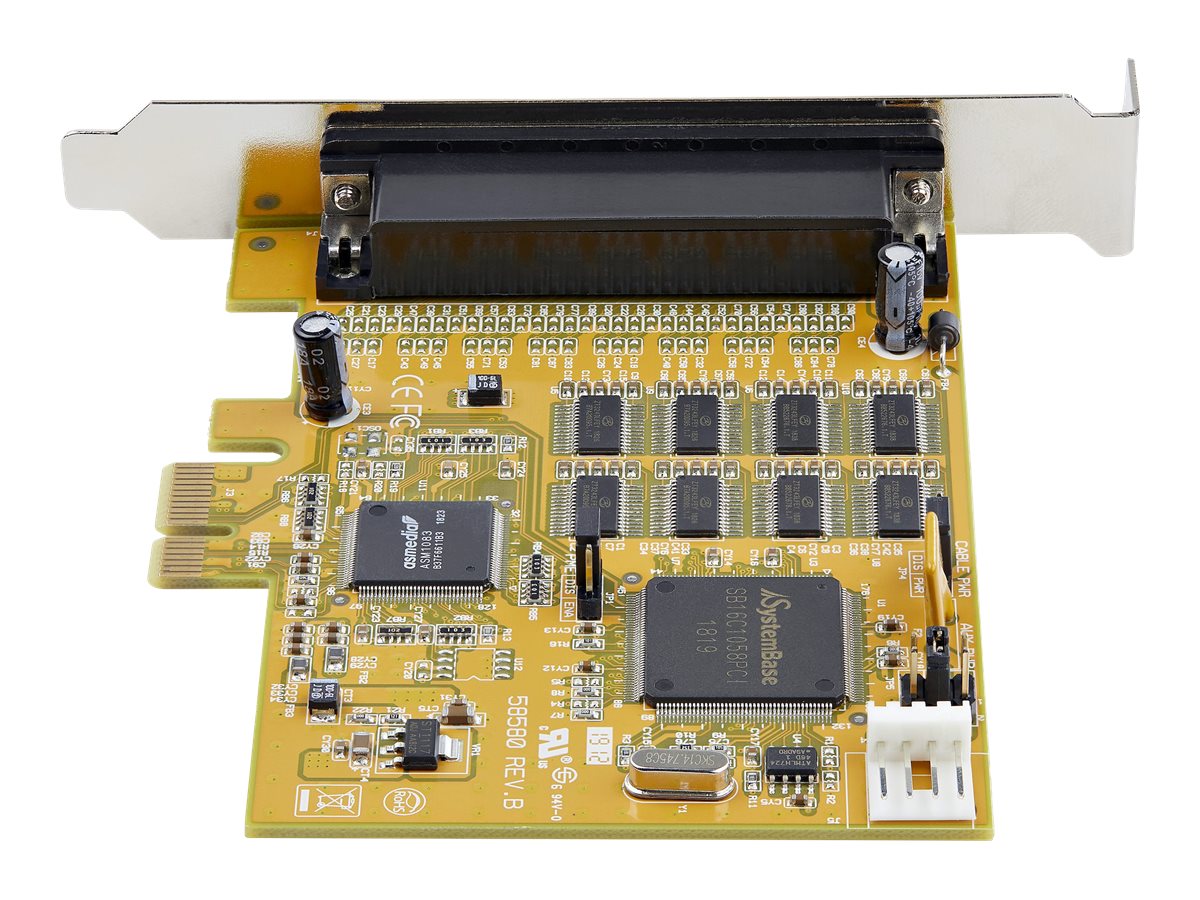

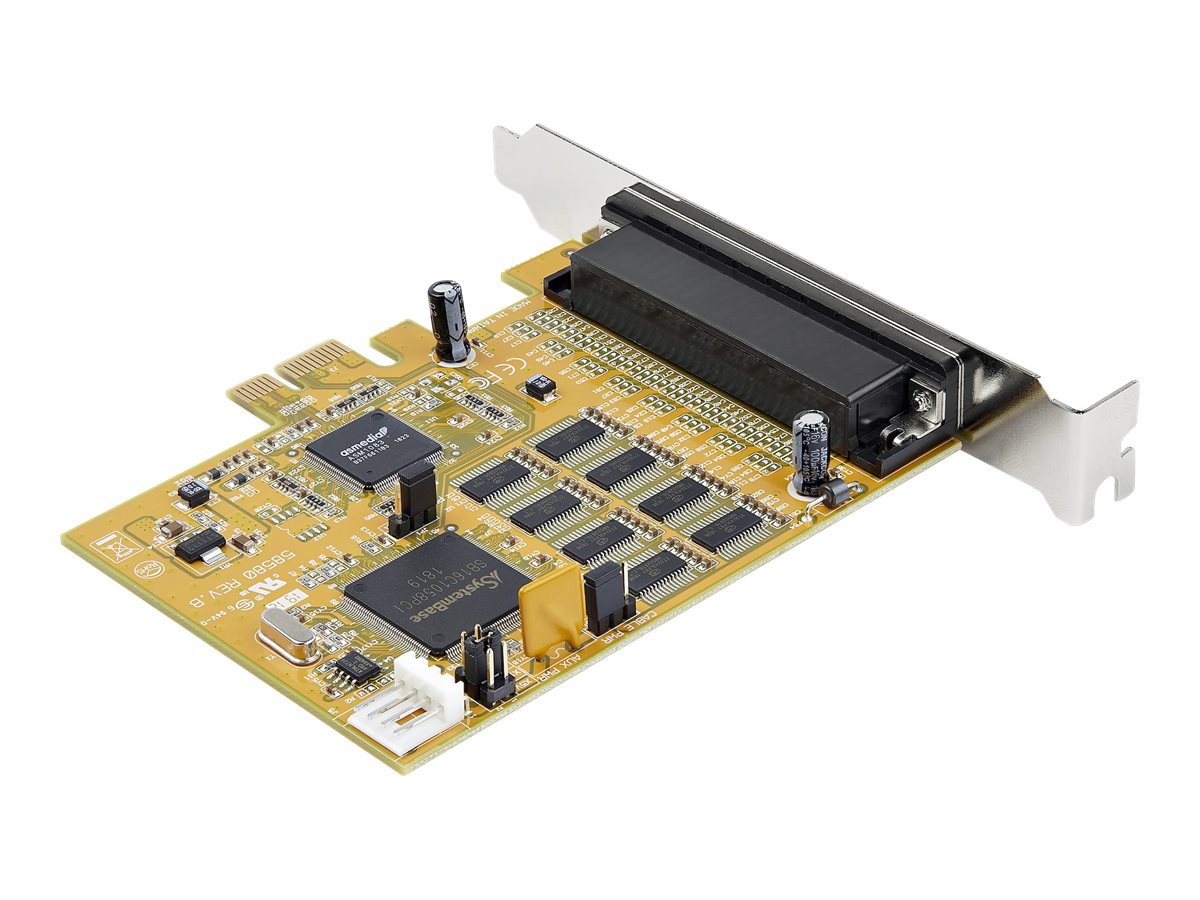

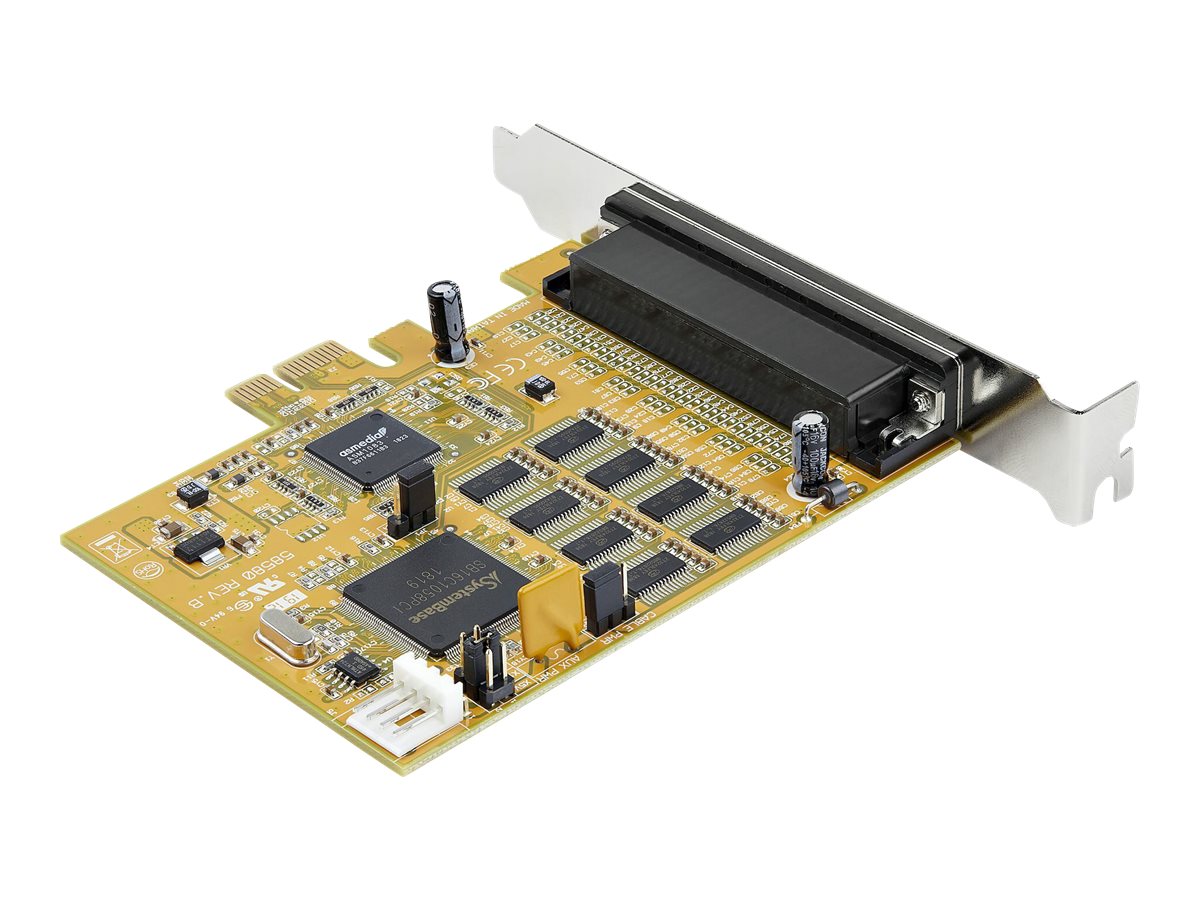

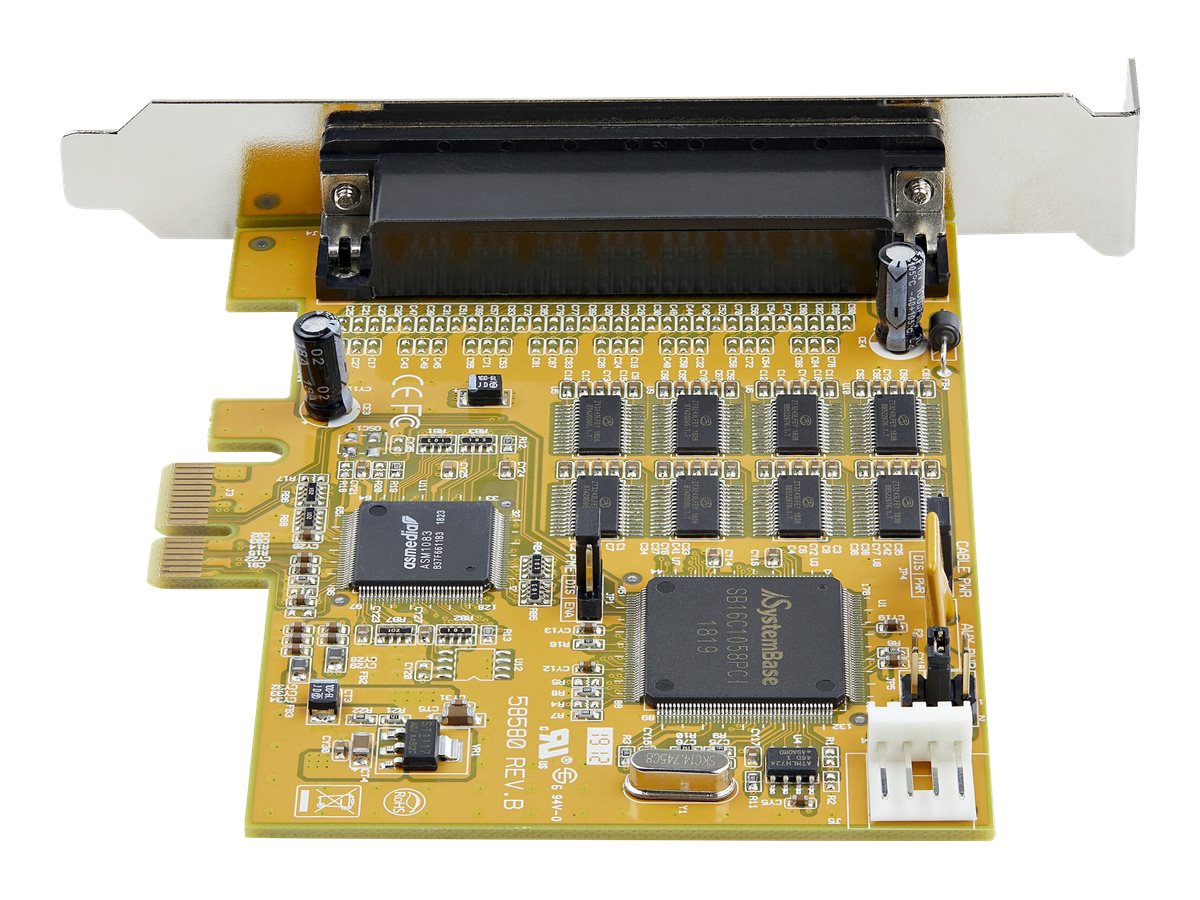

Produktbeskrivelse | StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux - Up to 921.6 Kbps Baud - seriel adapter - PCIe - RS-232 x 8 - TAA-kompatibel |
Enhedstype | Seriel adapter |
Model | Indstikskort |
Grænseflade (bus) type | PCI Express |
PCI-specifikationsrevision | PCIe 1.1 |
Porte | RS-232 x 8 |
Dimensioner (B x D x H) | 1.6 cm x 10.5 cm x 12 cm |
Vægt | 74 g |
Kabeltype | Seriel RS-232 |
Processor | ASMedia ASM1083 |
Farve | Gul |
Systemkrav | Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 |
TAA kompatibel | Ja |
Producentgaranti | Begrænset livtidsgaranti |
Generelt | |
---|---|
Enhedstype | Seriel adapter |
Grænseflade (bus) type | PCI Express |
PCI-specifikationsrevision | PCIe 1.1 |
Netværk | |
Egenskaber | Datatransport, 16550 UART support, 256-byte FIFO, 1.5KV ESD Protector |
Forbindelsesteknologi | Kabling |
Kabeltype | Seriel RS-232 |
Porte | RS-232 x 8 |
Processor / Hukommelse | |
Processor | ASMedia ASM1083 |
Ekspansion / Konnektivitet | |

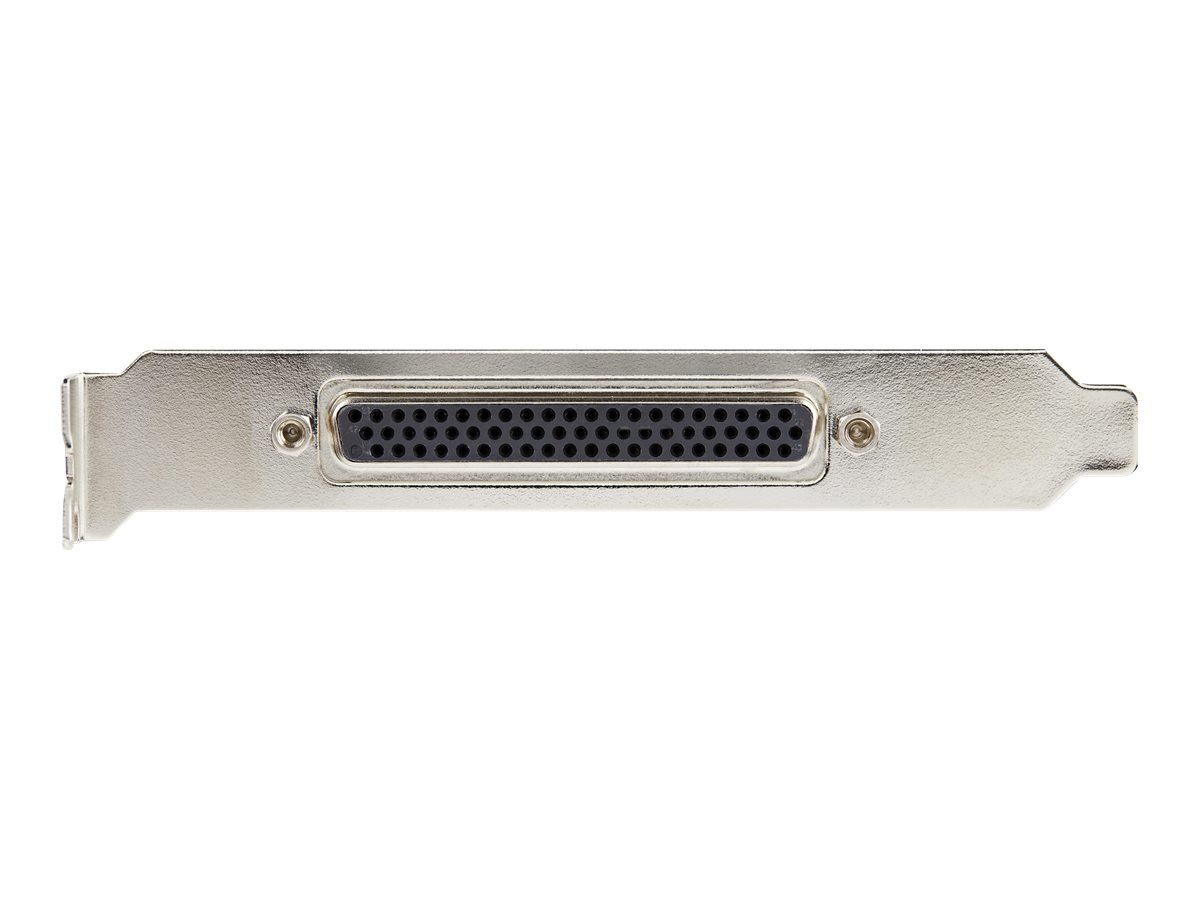

Interface | 8 x RS-232 - 9-pin D-Sub (DB-9) |
Diverse | |
Farve | Gul |

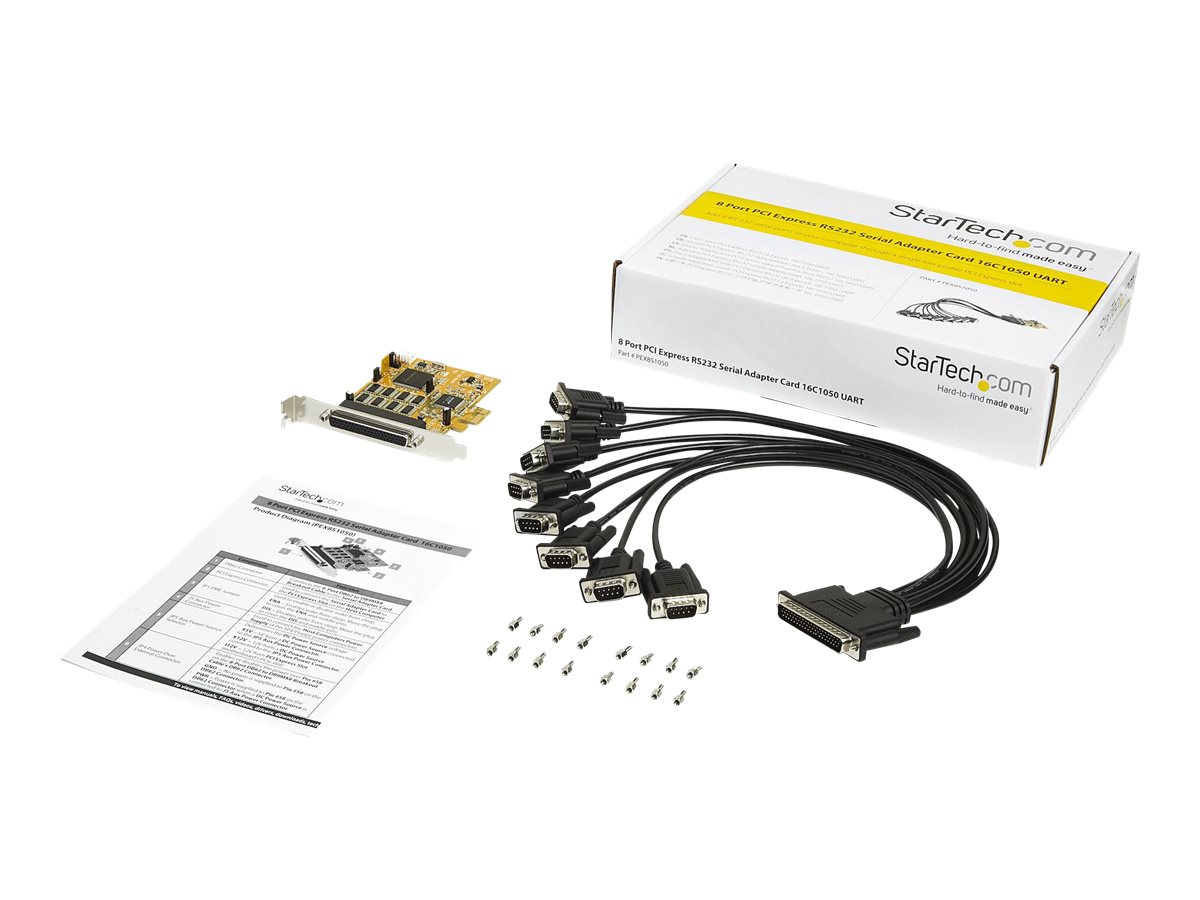

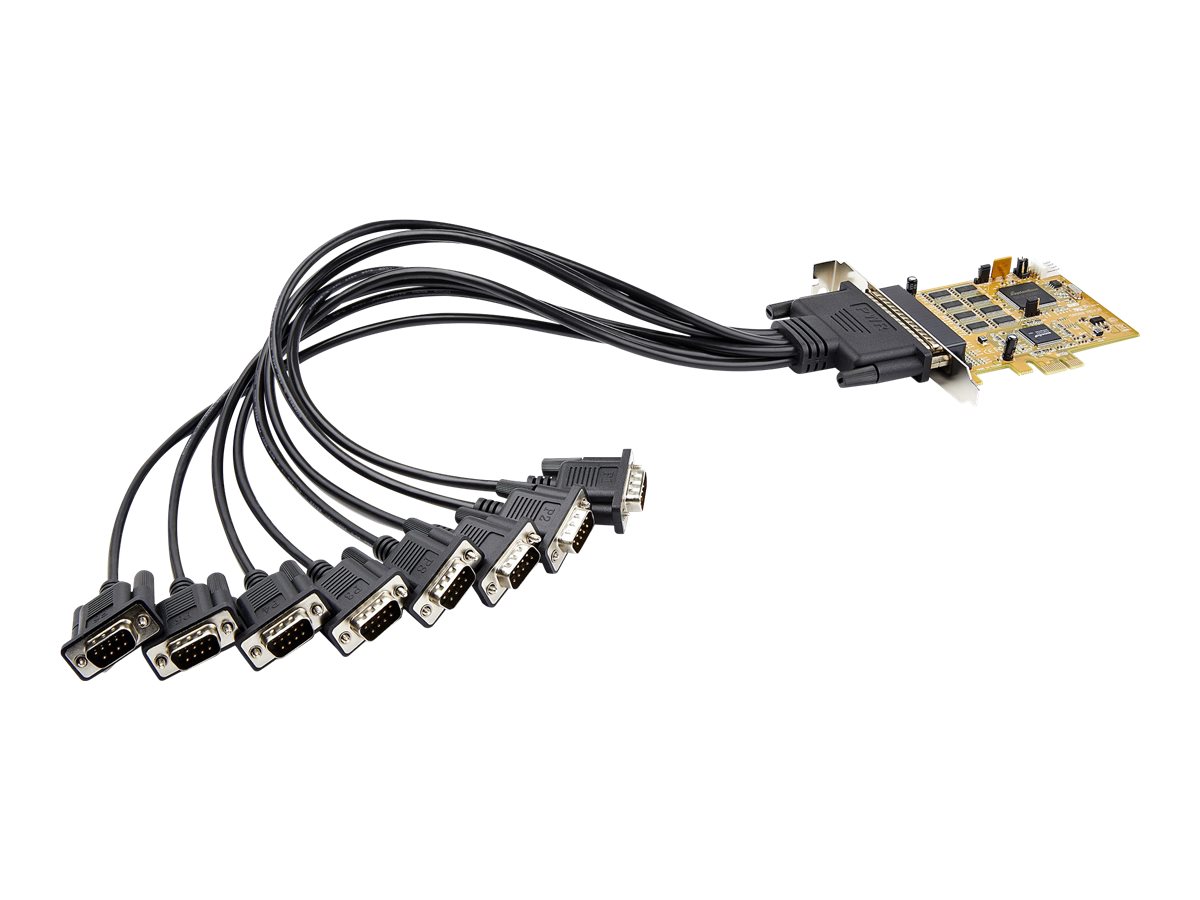

Medfølgende ledninger | 1 x DB-62 til DB-9 udfaldskabel - 48 cm |
MTBF (forventet tid mellem fejl) | 160,013 timer |
Overensstemmelsesstandarder | RoHS, WEEE |
TAA kompatibel | Ja |
Udstyr inkluderet | 8 x hexmøtrikker |
Programmer / Systemkrav | |
OS nødvendig | Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2. |
Mål og vægt | |
Bredde | 1.6 cm |
Dybde | 10.5 cm |
Højde | 12 cm |
Vægt | 74 g |
Mål & vægt (forsendelse) | |
Bredde ved forsendelse | 19 cm |
Dybde ved forsendelse | 2.9 cm |
Højde ved forsendelse | 6.5 cm |
Vægt ved forsendelse | 700 g |
Producentgaranti | |
Service & Support | Begrænset garanti - livstid |
Miljømæssige parametre | |
Fugtighedsgrad ved brug | 5 - 95% |
Maks. driftstemperatur | 55 °C |
Min. driftstemperatur | 0 °C |
