DeepCool PN650M Strømforsyning 650Watt ATX 3.1
DeepCool PN650M - Strømforsyning (intern) - ATX12V 3.1 - PCIe 5.1 - 80 PLUS Gold - AC 100-240 V - 650 Watt
-
Varenummer 1003293277
Model R-PN650M-FC0B-JGEU
Producent Deepcool Industries
Gå til producentens hjemmesideEAN 6933412740728
Vægt 2.51 kg
-
Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
| Type | ATX12V V3.1 |
| Output power | 650 W |
| Efficiency certification | 80 Plus Gold |
| Fan | 120 mm FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| Warrenty | 10 years |
| AC Input | 100-240Vac 50/60hz |
| Product Dimensions (W x L x H) | 150 × 140 × 86 mm |

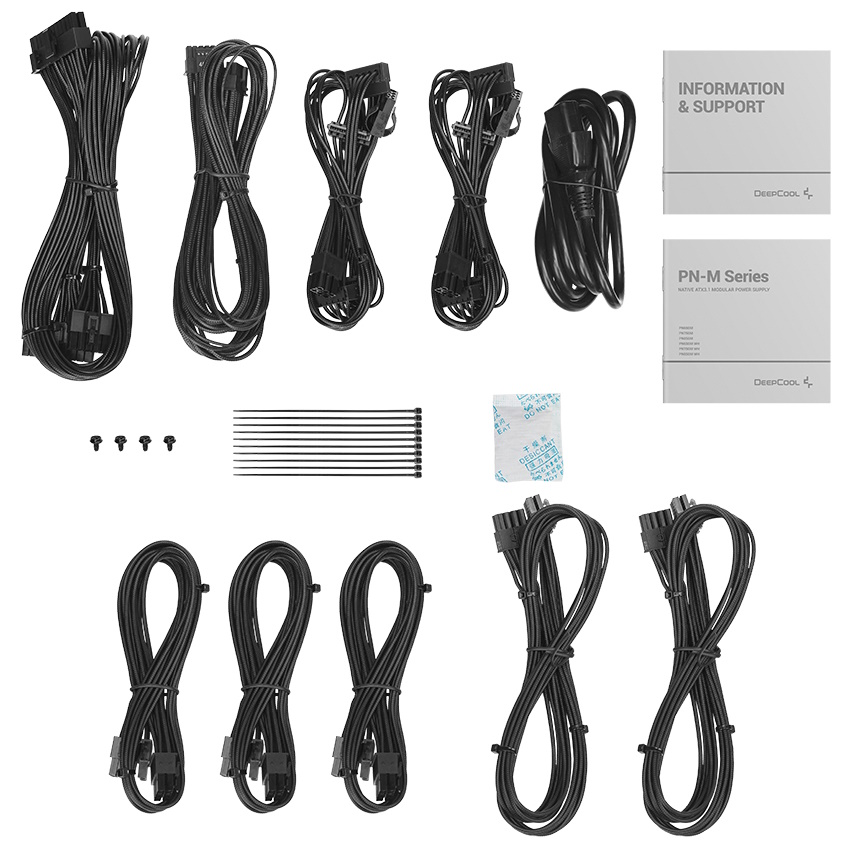

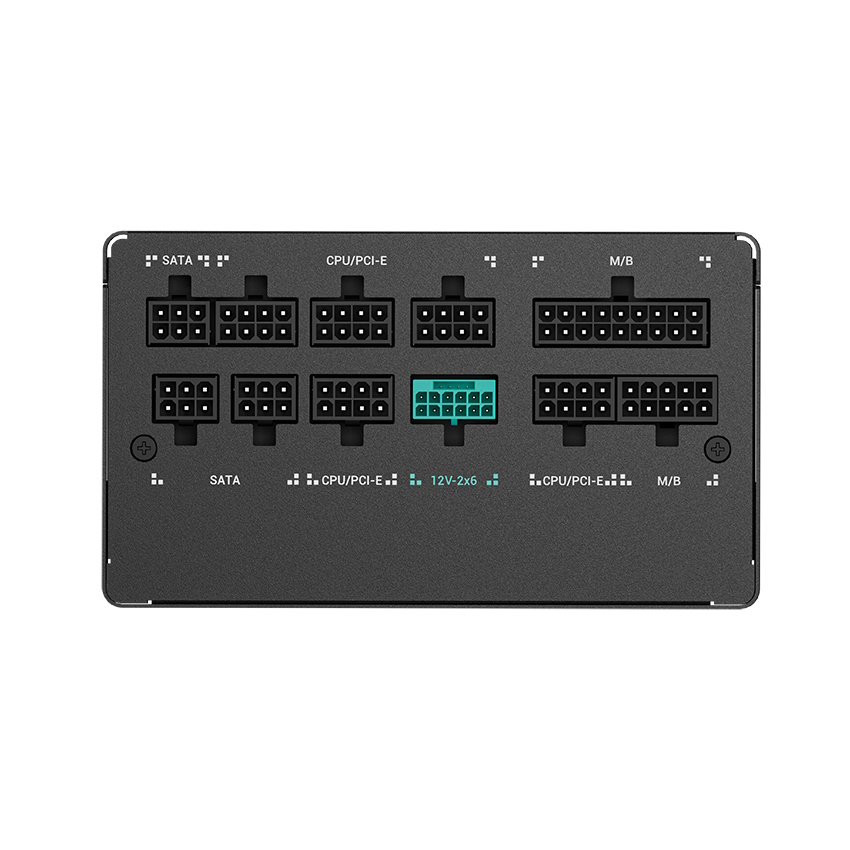

| Connectors | 1x Main Power Connector (20+4)Pin, 2x CPU(4+4)Pin x 1, 3x PCI-E(6+2)Pin x 1, 1x 12V-2x6(16Pin) x 1, 2x SATA x 4 + 4Pin Peripheral x 1 |
