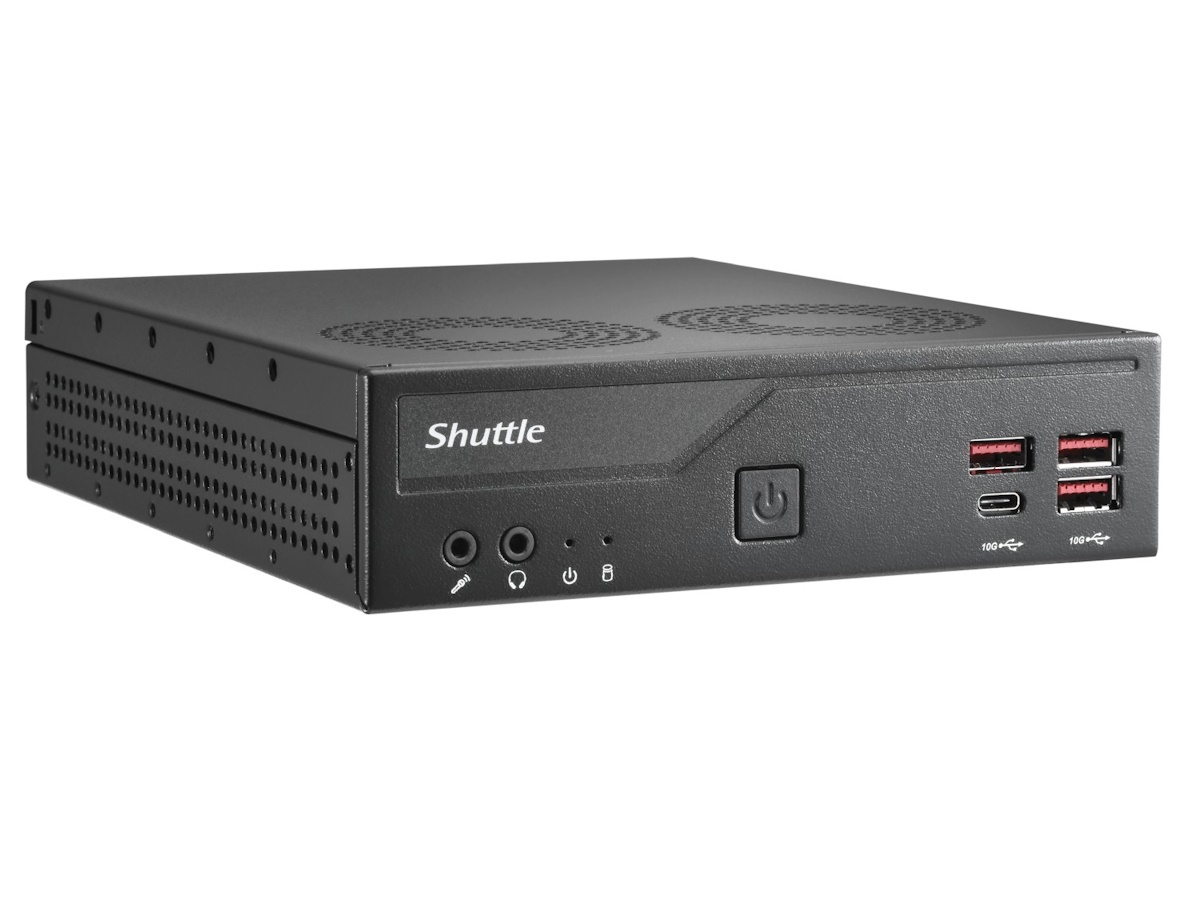

Shuttle DB860 Barebone LGA1851 0GB No-OS

Shuttle DB860 - Mini PC - Barebones - LGA1851 Socket - Intel B860 chipset - 0GB - 2x LAN (2,5Ghz, 1Ghz) - Sort

3 059,00 DKK 2 447,20 DKK ekskl. moms

  • Varenummer 1003830535

    Model DB860

    Producent
    Gå til producentens hjemmeside

    EAN 0887993008196

    Vægt 2.8 kg

  • Informationer/specifikationer på siden er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder.
Dimensions (L x W x H) 190 x 165 x 43 mm
Weight 1.3 kg
Operating System Ingen OS (Understøtter Windows 11 and Linux (64-bit))
Processor socket Intel LGA1851
Processor support Intel Core Ultra 200 series 9/7/5 processors (Max Base TDP: 65W)
Processor cooling Heat-pipe processor cooling, two 70 mm fans
Graphics Depend on the processor type used
Graphics output HDMI 2.1, HDMI 2.0, 1x DisplayPort, 1x USB-C Alt-mode
Chipset Intel B860
BIOS AMI BIOS, SPI Interface, 32 MB Flash-EEPROM
TPM fTPM v2.0
Memory support 2x SO-DIMM, DDR5-5600, (Supports Dual Channel), Max 48 GB per dimm
Drive bay 1x 6.35 cm
SATA connectors 1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
Storage M.2-2280M PCI-Express Gen. 5.0 X4
WLAN M.2-2230E PCI-Express X1, USB 2.0 and CNVi
Audio Realtek® ALC888S
LAN 1x 2.5G LAN port (Intel 226 chip), 1x 1.0G LAN port (Intel 219 chip)

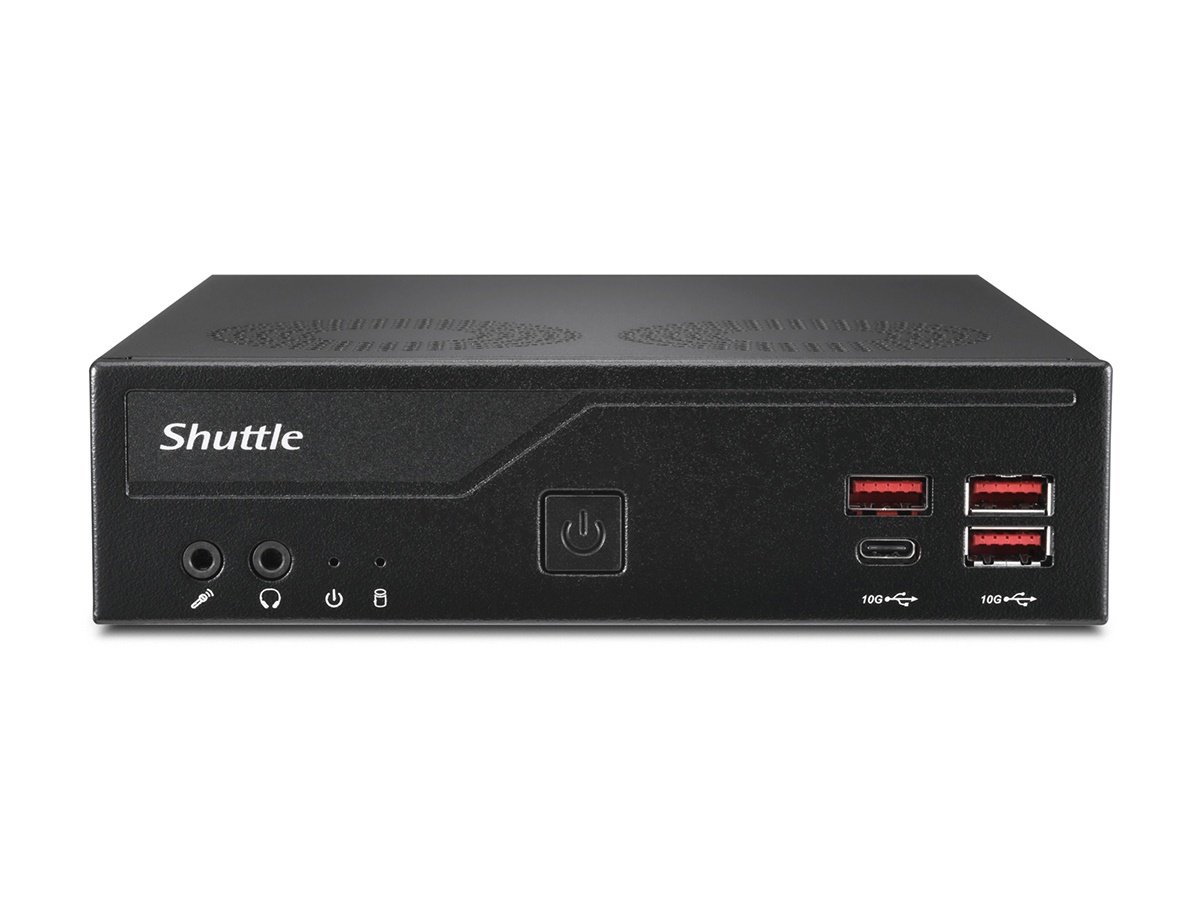

Front Panel connectors Microphone input, Audio Line-out (headphones), 3x USB 3.2 Gen 2 Type A (red), 1x USB 3.2 Gen 2 Type C supports 3A charging current

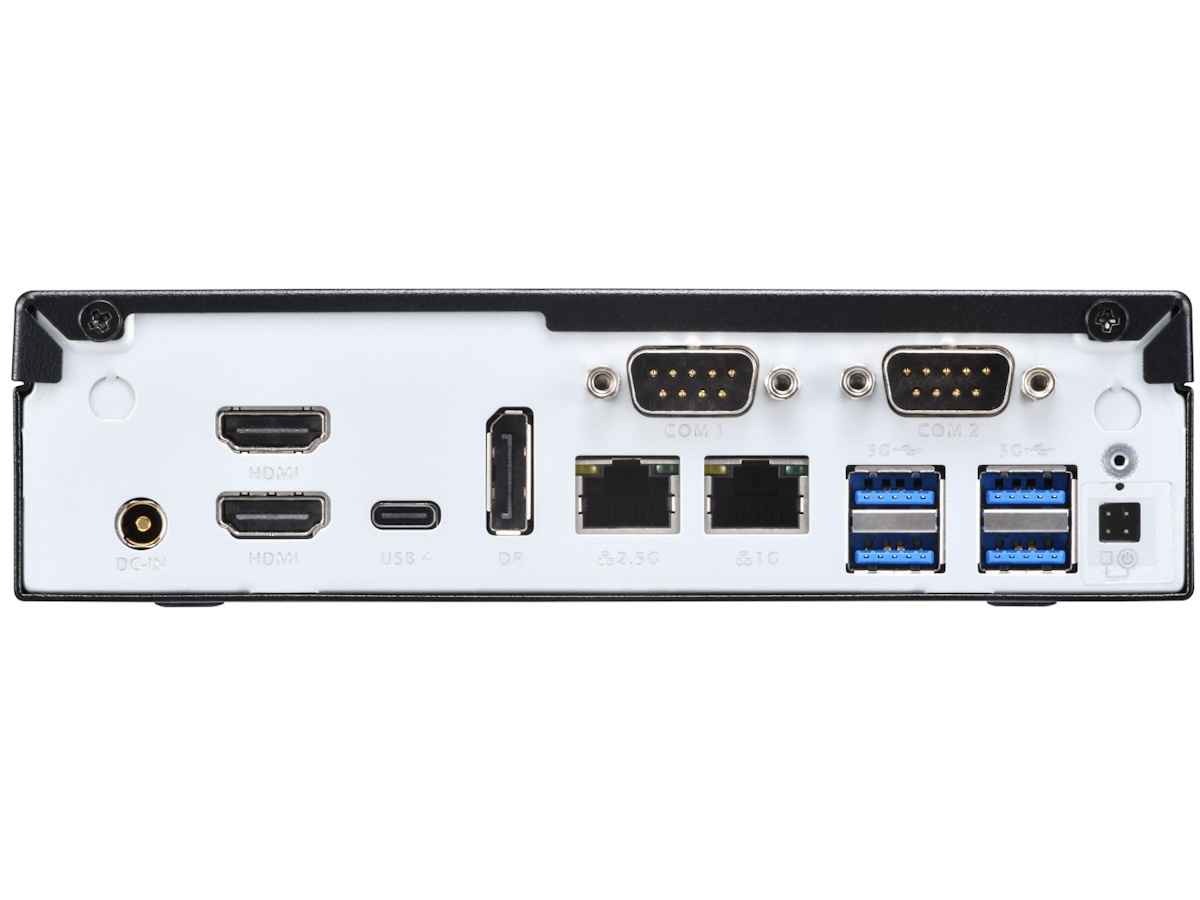

Back Panel connectors 1x HDMI 2.1 supports 8K/60Hz, 1x HDMI 2.0 supports 4K/60Hz, 1x DisplayPort (DP 1.4a), 1x USB4 as USB-C port supports DP 1.4a, USB4 (20 Gbit/s) and 3A charging current, 4x USB 3.2 Gen 1 Type A (blue), 1x 2.5G LAN (RJ45, Intel i225), 1x 1.0G LAN (RJ45, Intel i219), 2x RS232 serial port, 9-pin D-Sub (5/12V, 1x RS422/RS485), 1x DC-input connector for external power adapter (supports 12V and 19.5V), 1x 4-pin connector (External power button, Clear CMOS, +5V)
Power Adapter 180 W power adapter (fanless)
