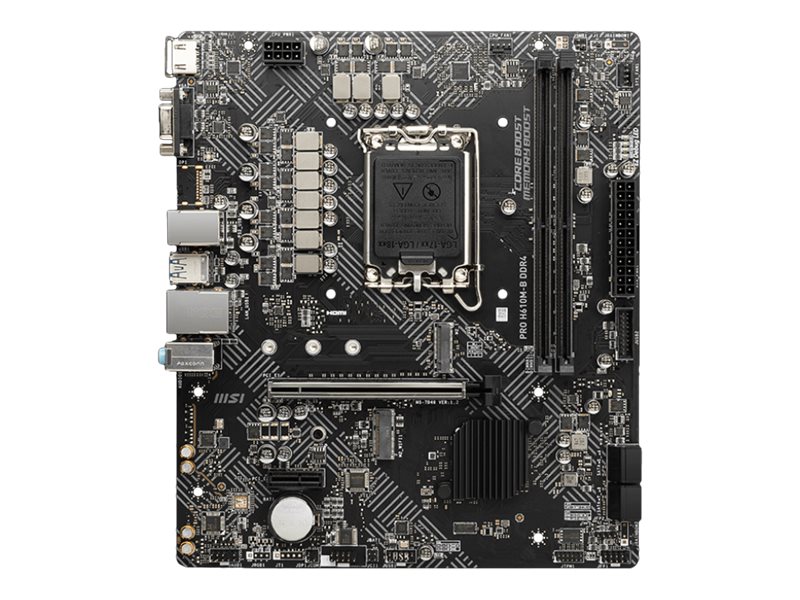

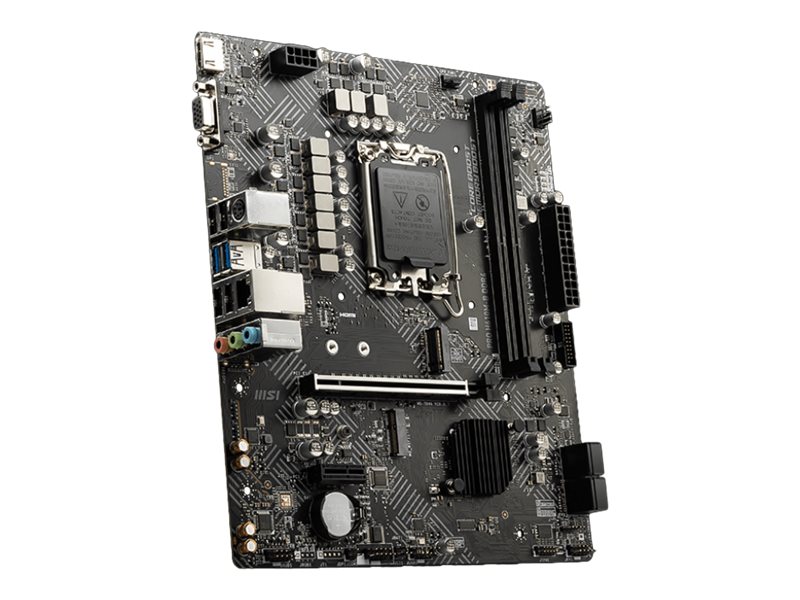

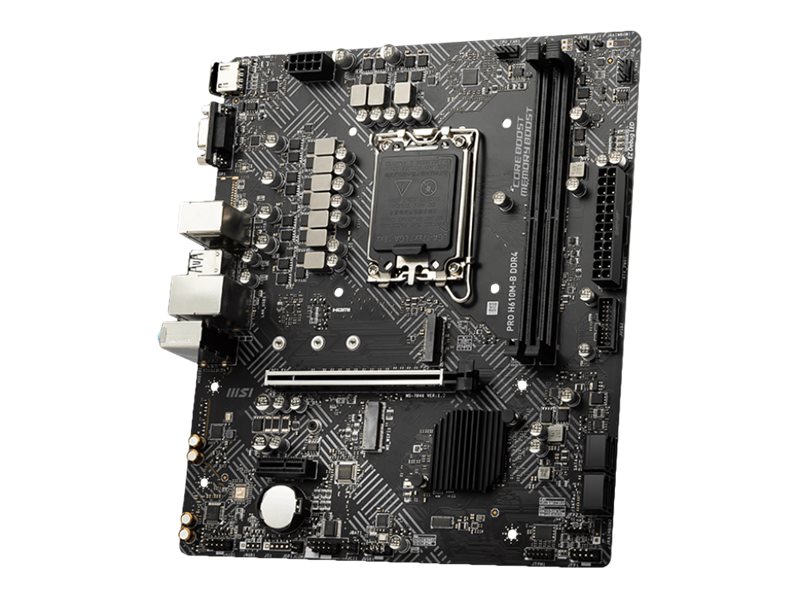

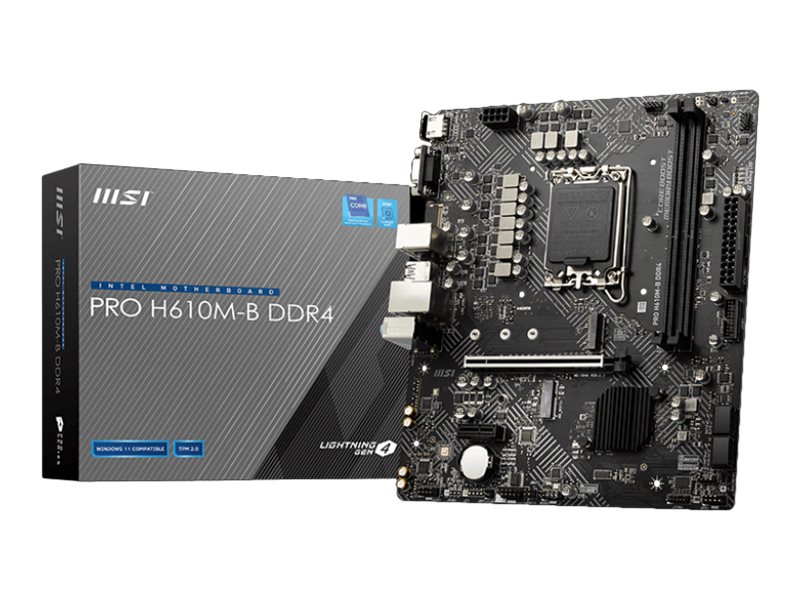

MSI PRO H610M-G DDR4 Micro-ATX LGA1700 Intel H610
MSI PRO H610M-G DDR4 - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
539,00 DKK
431,20 DKK excl. VAT
-
Product no 1000281925
Model PRO H610M-G DDR4
Brand
Go to brand's websiteEAN 4719072925024
Weight 0.77 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | MSI PRO H610M-G DDR4 - bundkort - micro ATX - LGA1700 sokkel - H610 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H610 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (understøtter 12. Generation Intel Core / Pentium / Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| General | |
|---|---|
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2133 MHz, 2666 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio | |
| Audio Codec | Realtek ALC892/ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x M.2 socket (for wireless module) | 1 x PCIe 3.0 x1 |

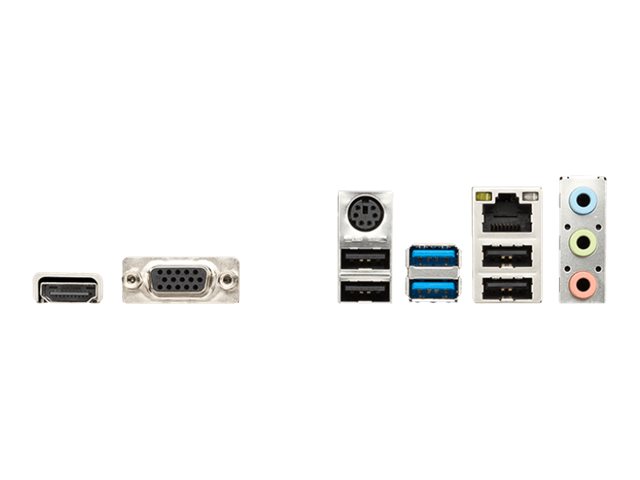

| Interfaces | 1 x HDMI | 1 x VGA | 1 x DisplayPort | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, MSI Steel Armor, Double ESD Protection, MSI Core Boost |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 20.2 cm |
| Included Accessories | I/O back plate, case badge, M.2 clip |
| Width | 23.6 cm |
