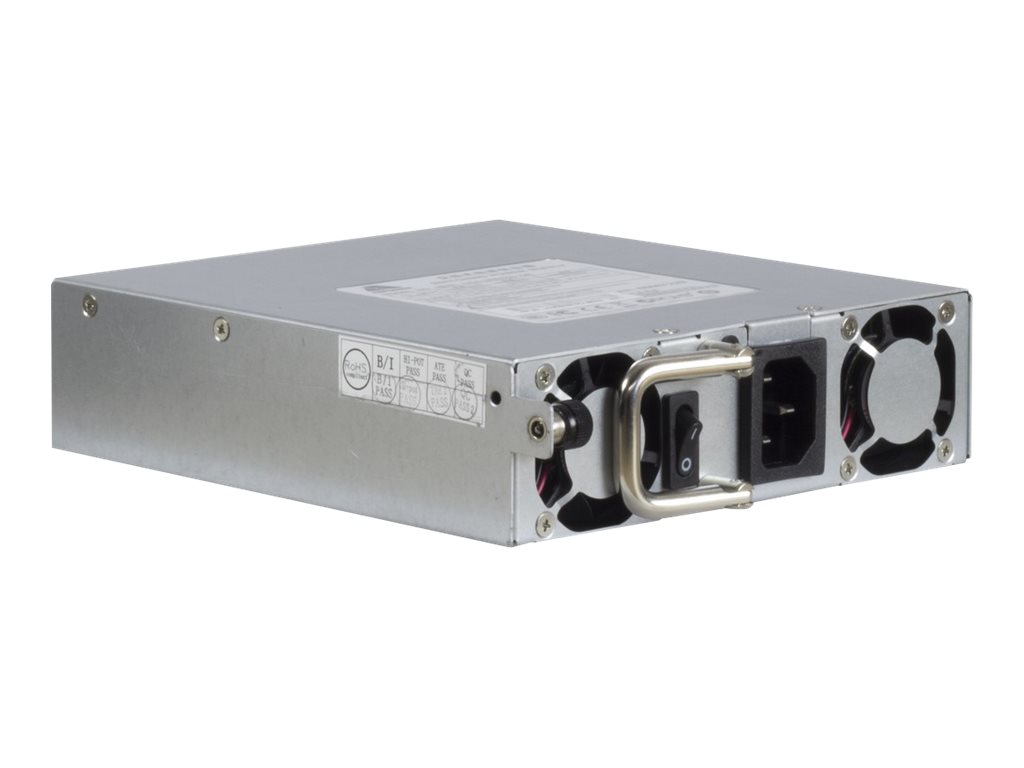

ASPOWER R2A-MV0700 Strømforsyning 700Watt
ASPOWER R2A-MV0700 - Strømforsyning (intern) - 80 PLUS Silver - AC 100-240 V - 700 Watt
2 811,00DKK2 248,80DKK excl. VAT
-
Product no 992921155
Model 99997230
Brand Inter-Tech Elektroni
EAN 4260455642286
Weight 4.06 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASPOWER R2A-MV0700 - strømforsyning - 700 Watt |
| Enhedstype | Strømforsyning - intern |
| 80 PLUS certificering | 80 PLUS Silver |
| Vægt | 3.69 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 700 Watt |
| Overskudsspænding | Ja |
| Output Current | +3.3V - 30 A<br>+5V - 30 A<br>+12V - 58 A<br>-12V - 1 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 2 x 15 pin Serial ATA strøm<br>6 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x strøm 24 pin ATX<br>2 x strøm 8 pin +12 V med aftagelig 4 pin sektion |
| Kølesystem | 4 x 40 mm ventilatorer |
| Dimensioner (B x D x H) | 15 cm x 19 cm x 8.4 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - internal |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Silver |
| Efficiency | 92% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +3.3V - 30 A | +5V - 30 A | +12V - 58 A | -12V - 1 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Power Output Connectors Details | 2 x 15 pin Serial ATA power | 6 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x power 24 pin ATX | 2 x power 8 pin +12V with detachable 4 pin section |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Miscellaneous | |
| Cables Included | Power cable |
| Cooling System | 4 x 40 mm fans |
| Features | Audible alarm, overcurrent protection, overvoltage protection, overload protection, short-circuit protection |
| MTBF | 100,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Depth | 19 cm |
| Height | 8.4 cm |
| Weight | 3.69 kg |
| Width | 15 cm |
