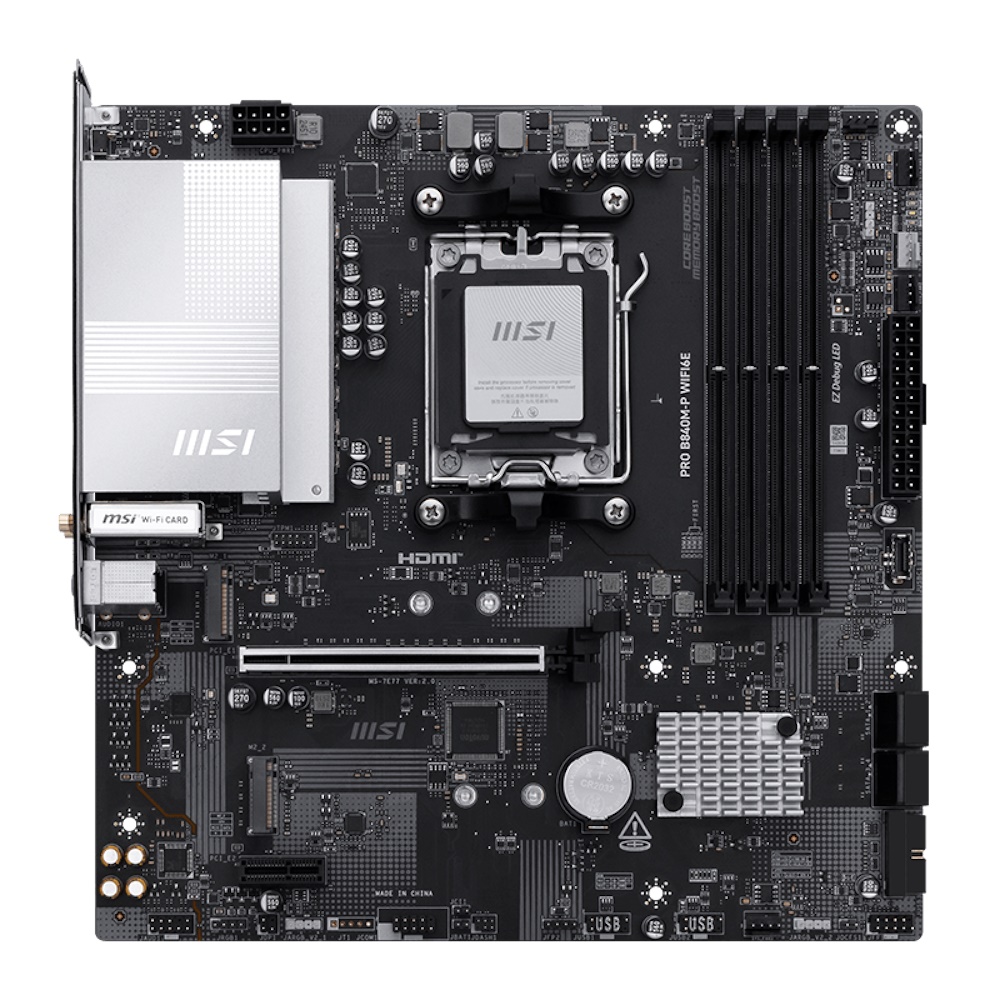

MSI Pro B840M-P WiFi6E mATX AM5
MSI Pro B840M-P WiFi6E - ATX - Socket AM5 - 4x DDR5 slots - HDMI 2.1 - Wi-Fi 6E - Realtek 8125D
1 108,00 DKK
886,40 DKK excl. VAT
-
Product no 1003393180
Model 7E77-001R
Brand
Go to brand's websiteEAN 4711377361804
Weight 1.23 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM supports DDR5 8000 - 5600, Max 256GB |
| Onboard Graphics | 1x HDMI 2.1 |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot |
| Audio | Realtek® ALC897 Codec |
| Storage | 2x M.2 (2x PCIe 4.0 x4 - supports 2280/2260), 4x SATA 6G |

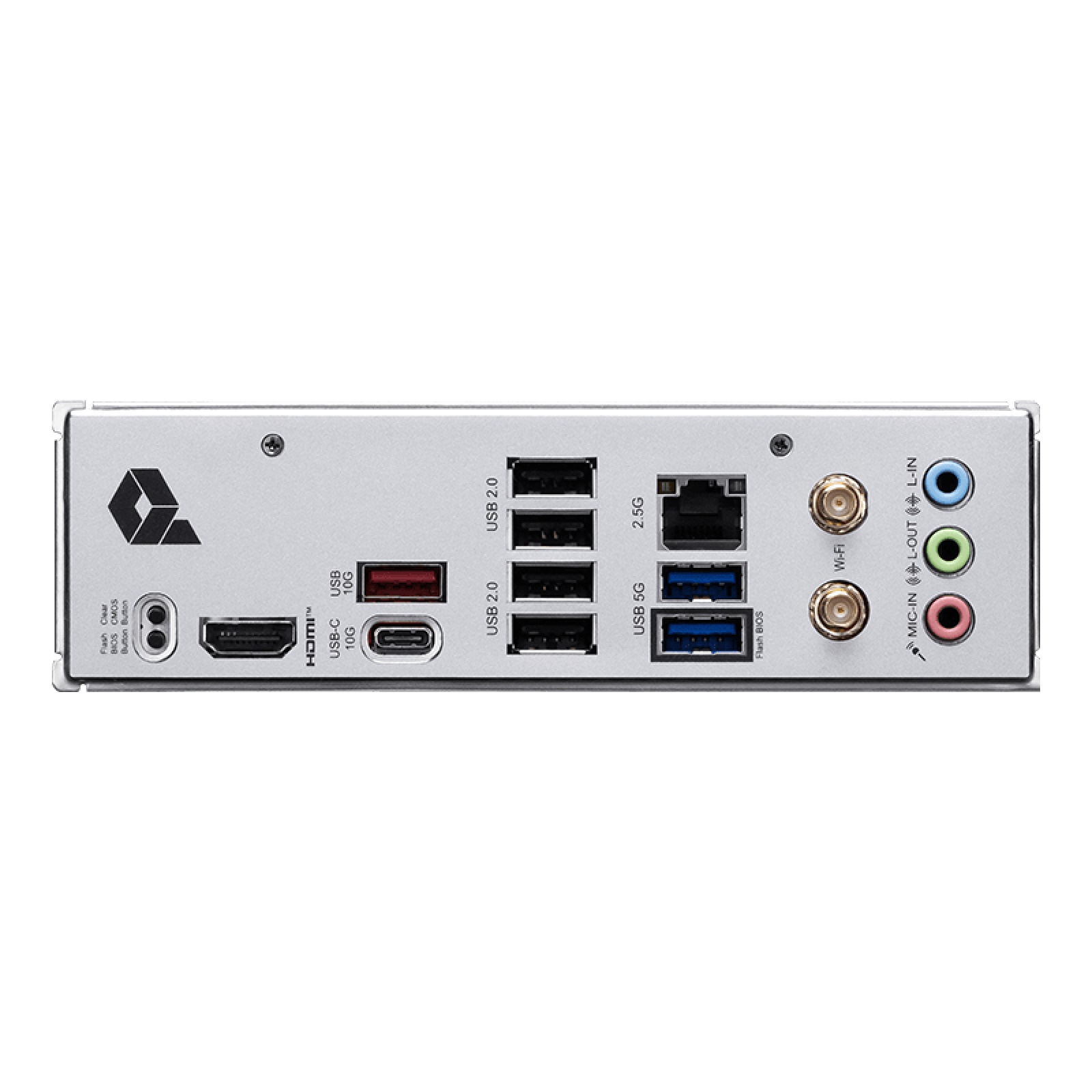

| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless | Wi-Fi 6E (pre-installed in the M.2 (Key-E) slot), Bluetooth® 5.3 |
| Box contents | 1x SATA cable, Quick installation guide, EU regulatory notice, 2x EZ M.2 Clips II, EZ M.2 Clip II Remover, EZ Wi-Fi Antenna |
| PCB Info | mATX, 243.84 x 243.84 mm |
