Product no 989735519
Model 4044951016419
Brand Sharkoon
EAN 4044951016419
Weight 1.9 kg

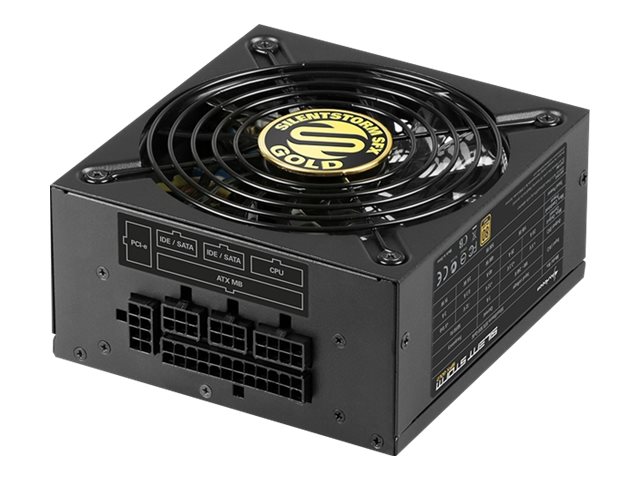

Produktbeskrivelse | Sharkoon SilentStorm SFX 500 Gold - strømforsyning - 500 Watt |
Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
Specifikationsoverensstemmelse | SFX12V/SFX-L12V |
80 PLUS certificering | 80 PLUS Gold |
Vægt | 1.1 kg |
Indgangspænding | AC 100-240 V |
Strømkapacitet | 500 Watt |
Output Current | +5V - 20 A<br>+3.3V - 20 A<br>+12V - 40 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>4 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder |
Modulær Kabel Administration | Ja |
Kølesystem | 120 mm ventilator |
Udstyr inkluderet | Skruer, kabelbånd, kabelpose, SFX to ATX bracket, modulære kabler |
Farve | Sort |
Dimensioner (B x D x H) | 12.5 cm x 13 cm x 6.3 cm |
Producentgaranti | 3 års garanti |
General | |
---|---|
Color | Black |
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
PSU Form Factor | SFX |
Specification Compliance | SFX12V/SFX-L12V |
Power Device | |
80 PLUS Certification | 80 PLUS Gold |
Efficiency | 87% at 20% Load, 90% at 50% Load, 87% at 100% Load |
Frequency Required | 50 - 60 Hz |
Input Voltage | AC 100-240 V |
Modular Cable Management | Yes |
Output Current | +5V - 20 A | +3.3V - 20 A | +12V - 40 A | -12V - 0.3 A | +5VSB - 3 A |
Power Capacity | 500 Watt |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 2 x 8 pin PCI Express power with detachable 2 pin section | 4 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connec |
Miscellaneous | |
Cables Included | Power cable - external |
Compliant Standards | C-Tick, BSMI, CB, FCC, ERP |
Cooling System | 120 mm fan |
Features | Overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection, Intel 4th-gen CPU (Haswell) compatible, fully modular |
Included Accessories | Screws, cable ties, cable bag, SFX to ATX bracket, modular cables |
MTBF | 100,000 hours |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 32 dBA |
Dimensions & Weight | |
Depth | 13 cm |
Height | 6.3 cm |
Weight | 1.1 kg |
Width | 12.5 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 19 cm |
Shipping Height | 8 cm |
Shipping Weight | 1.8 kg |
Shipping Width | 23 cm |
