Product no 993541214
Model SMT2200IC
Brand APC
EAN 0731304337317
Weight 100 kg

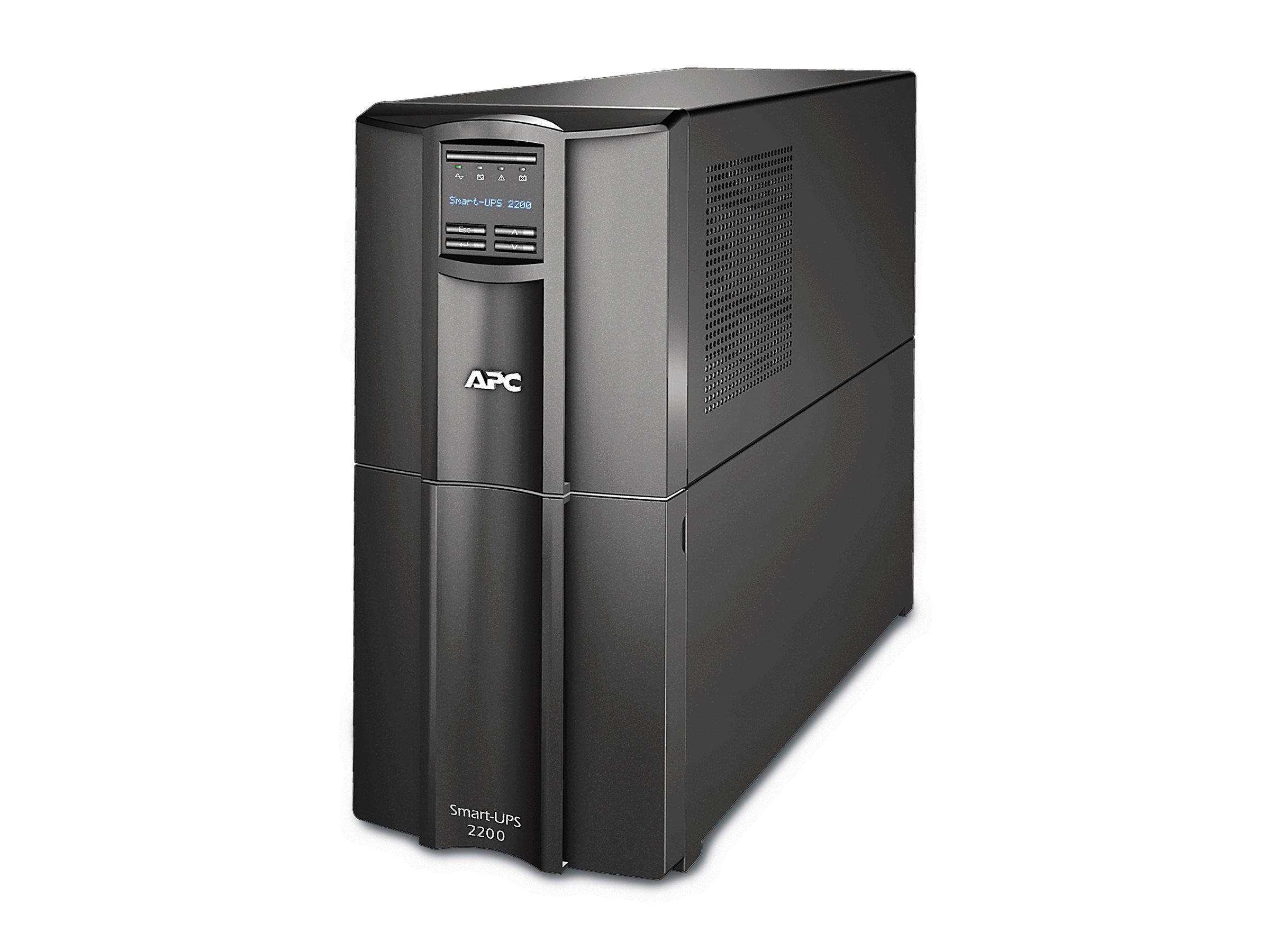

Produktbeskrivelse | APC Smart-UPS SMT2200IC - UPS - 1980 Watt - 2200 VA - Blysyre - med APC SmartConnect |
Enhedstype | UPS - ekstern |
Vægt | 48.8 kg |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 220/230/240 V ± 5% |
Strømkapacitet | 1980 Watt / 2200 VA |
Input-stik | 1 x strøm IEC 60320 C20 |
Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x IEC-lus<br>1 x strøm IEC 60320 C19 |
Batteri | Blysyre Blysyre |
Antal batterier | 1 |
Driftstid (op til) | 8.7 min ved fuld belastning |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 19.7 cm x 54.4 cm x 43.5 cm |
Producentgaranti | 3 års garanti |
Bundtet med | APC SmartConnect |
General | |
---|---|
Bundled with | APC SmartConnect |
Color | Black |
Device Type | UPS - external |
Power Device | |
Circuit Protection | Circuit breaker |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Output Voltage | AC 220/230/240 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 1980 Watt / 2200 VA |
Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x IEC jumper | 1 x power IEC 60320 C19 |
Surge Energy Rating | 365 Joules |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Features | Maintenance free, sealed, leak-proof |
Quantity | 1 |
Recharge Time | 3 hours |
Run Time (Up To) | 8.7 min at full load | 25 min at half load |
Technology | Lead acid lead acid |
Transfer Time | 6 ms |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |

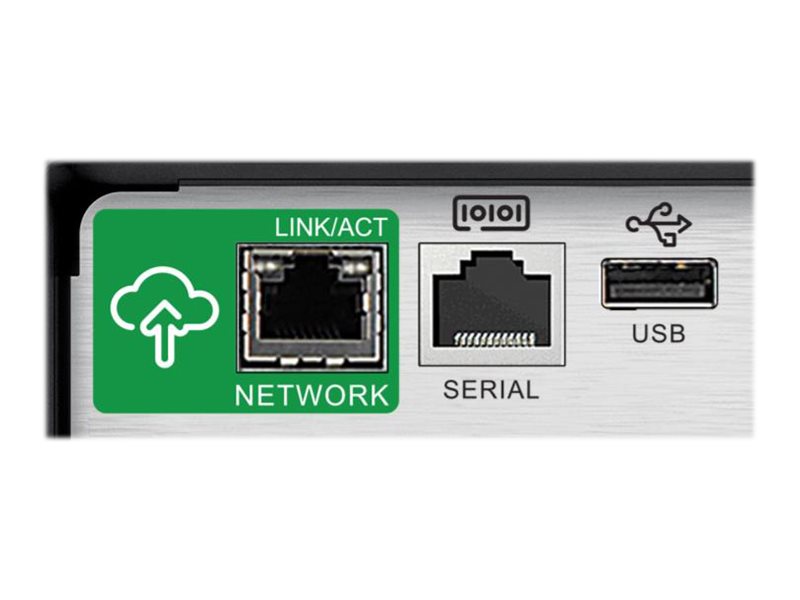

Interfaces | 1 x management (RS-232) | 1 x USB | 1 x EPO (emergency power off) |
Miscellaneous | |
Cables Included | Serial cable - external | USB cable - external |
Compliant Standards | CSA, UL 1778, VDE, IEC 62040-2, RoHS, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter |
Software / System Requirements | |
Software Included | APC PowerChute Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - replace or repair - 3 years | Limited warranty - batteries - 2 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dBA |
Dimensions & Weight | |
Depth | 54.4 cm |
Height | 43.5 cm |
Weight | 48.8 kg |
Width | 19.7 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 76.2 cm |
Shipping Height | 69.9 cm |
Shipping Weight | 61.9 kg |
Shipping Width | 38.1 cm |
