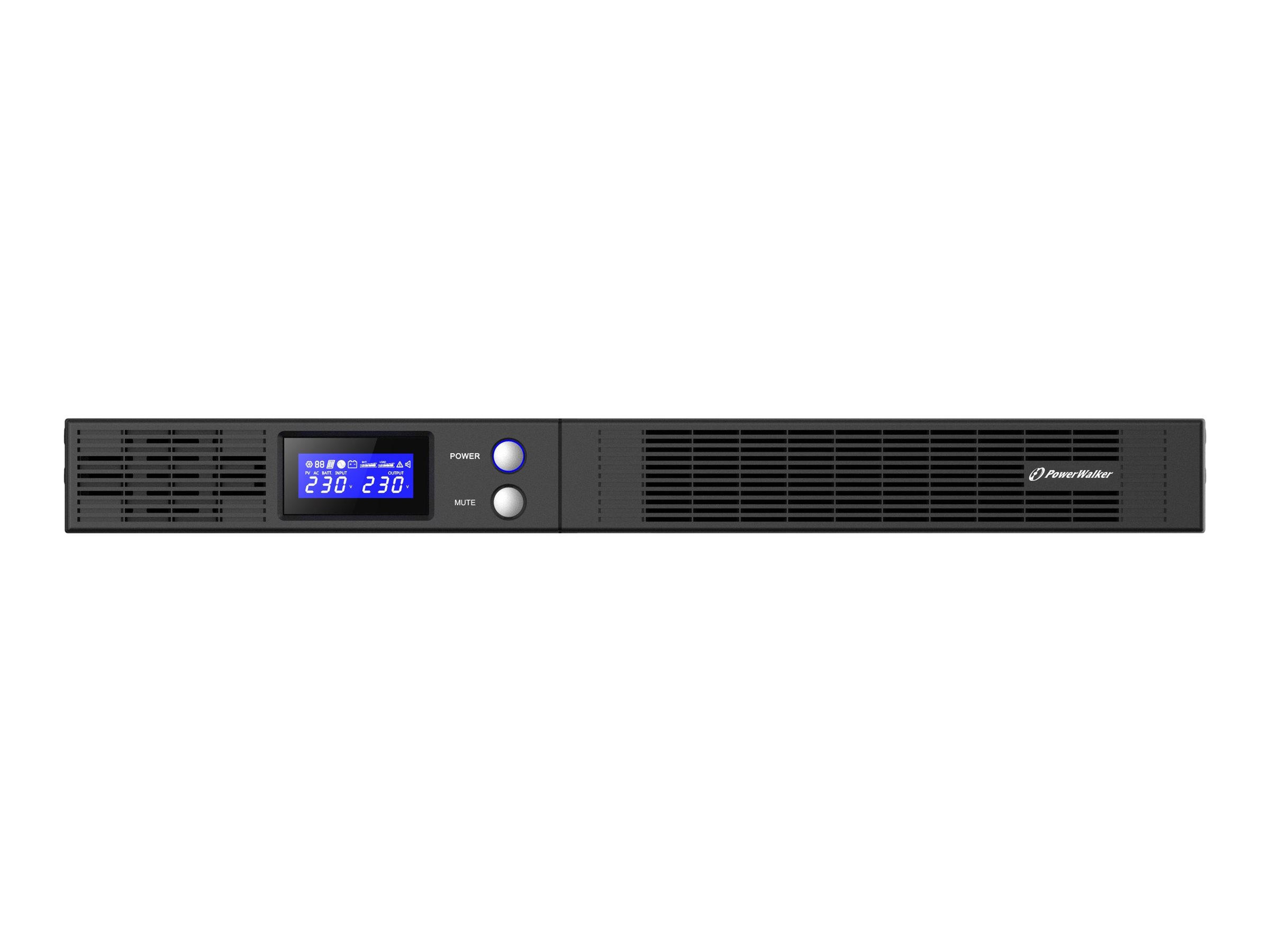

Bluewalker USV Powerwalker VI 750 R1U Line-Interac
Product no 993216842
Model 10121048
Brand BlueWalker
EAN 4260074980394
Weight 10.4 kg
General | |
---|---|
Device Type | UPS - rack-mountable |
Height (Rack Units) | 1U |
Rack Size | 19" |
Power Device | |
Frequency Provided | ± 0.5Hz |
Frequency Required | 45 - 55 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 165-290 V |
Output Voltage | AC 230 V ± 10% |
Output Waveform | Sinewave |
Power Capacity | 450 Watt / 750 VA |
Power Factor (PF) | 0.6 |
Power Output Connectors Details | 4 x power IEC 60320 C13 |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Capacity | 9 Ah |
Quantity | 2 |
Recharge Time | 5 hours |
Run Time (Up To) | 0.5 min at full load | 4.7 min at 75% load | 10.9 min at half load | 26 min at 25% load |
Transfer Time | 4 ms |
Voltage Provided | 6 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |

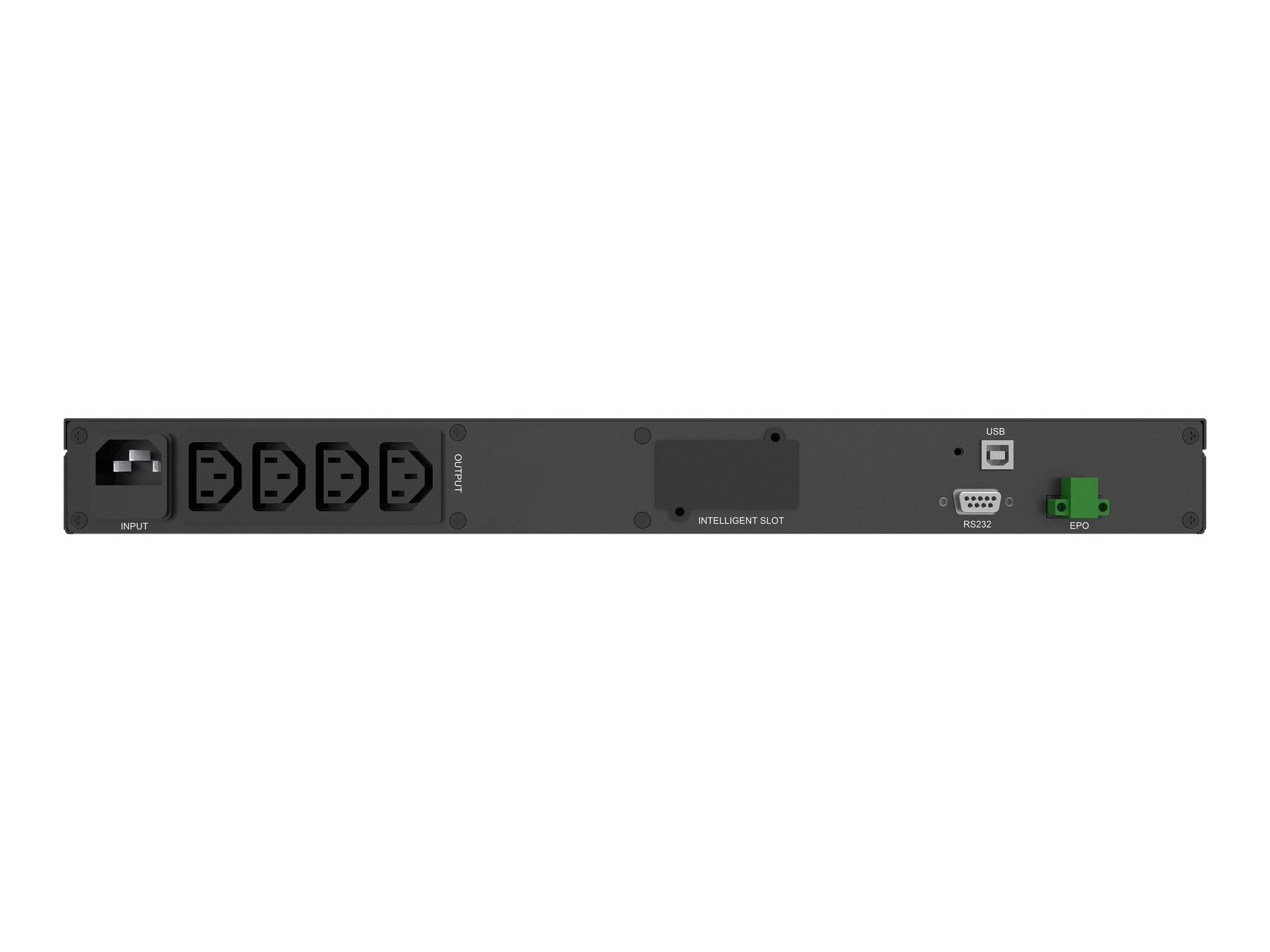

Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x EPO (emergency power off) |
Miscellaneous | |
Cables Included | USB cable - external | Power cable - external |
Features | Emergency power off, LCD display, overload protection |
Software / System Requirements | |
Software Included | PowerMaster |
Environmental Parameters | |
Humidity Range Operating | 0 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 21.6 cm |
Height | 4.4 cm |
Weight | 8.6 kg |
Width | 43.3 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 31.7 cm |
Shipping Height | 15 cm |
Shipping Weight | 9.8 kg |
Shipping Width | 53.7 cm |
